Installing Selector Support

Information

• During installation, make sure that the selector lever is in position "P" on the selector support and at the rear end position on the transmission  .
• The parking lock must be fully engaged  .

1. Check the position of the selector lever on the transmission and on the selector support.

   The selector lever must be in position (P)  .

2. Insert selector support -3-  and screw in and tighten fastening screws -2-  .

   Tightening torque 8 Nm (6 ft. lbs.)

3. Plug in cable plug -1-  .

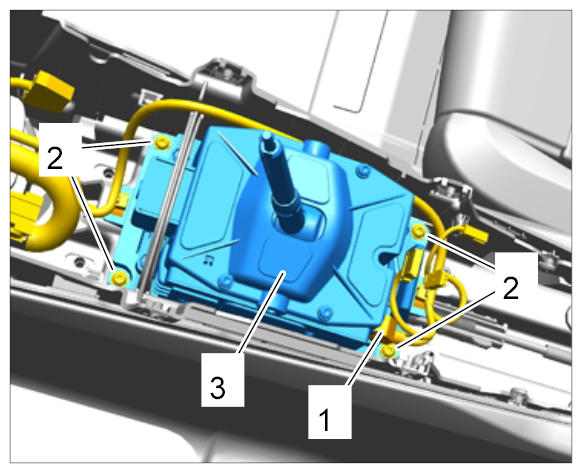

   Fig 1: Installing Selector Support (Shown On 991)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Clip in the locking cable -1-  and lock the bayonet lock -arrow-  .

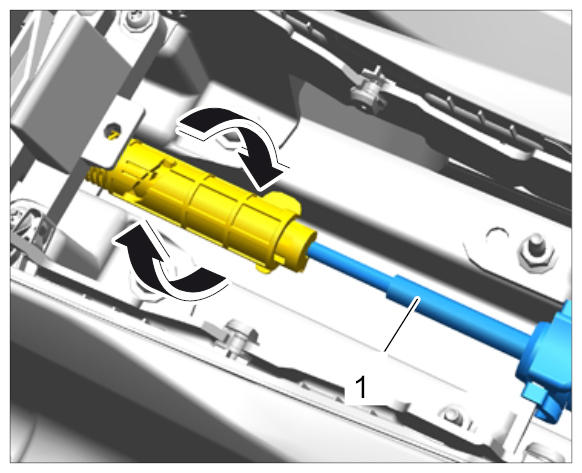

   Fig 2: Locking Bayonet Lock On Locking Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
