Removing Selector Knob

WARNING: This page is about a different variant/trim than selected.

Information

The ignition key must be in position 1 before the locking button can be pressed.

  1. Turn twist lock anti-clockwise and pull selector knob up and off -arrows-  .

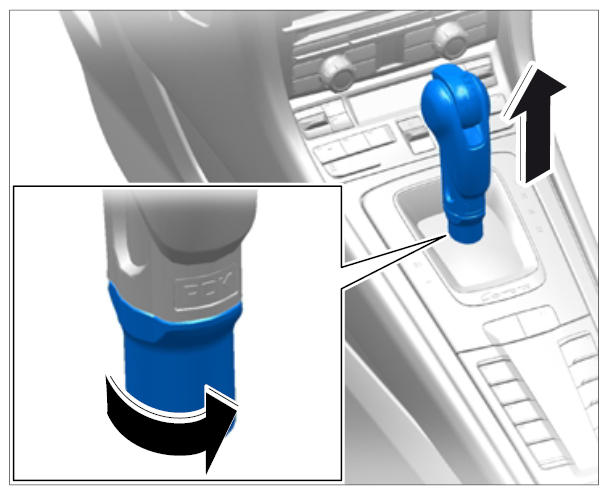

    Fig 1: Removing Selector Knob
    G10026358Courtesy of PORSCHE CARS NORTH AMERICA, INC.
