Filling ATF (Clutch Fluid)

Information

ATF specifications for Porsche Doppelkupplung (PDK):

• Storage: Store in a dry place, away from direct sunlight, at a temperature not less than -40 °C and not higher than +50 °C
• Storage time: 5 years from fill date on container
• Before using oil: Shake the container well for at least 10 seconds  .

Information

Only use oil approved by Porsche in the Porsche Doppelkupplung (PDK) .

Information

Affix adhesive tape -1-  to the area between the transmission housing and ATF pan to prevent dirt from getting into the oil pan.

Fig 1: Identifying Adhesive Tape On Transmission

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Fill in ATF.
   1. 1.1. Unscrew oil filler screw -1-  .
   2. 1.2. Fill in ATF at the oil filler bore using Manual Metering Pump WE 1372  until ATF emerges.
   3. 1.3. Screw in and tighten oil filler screw.

      Tightening Torque 27 Nm (20 ft. lbs.)

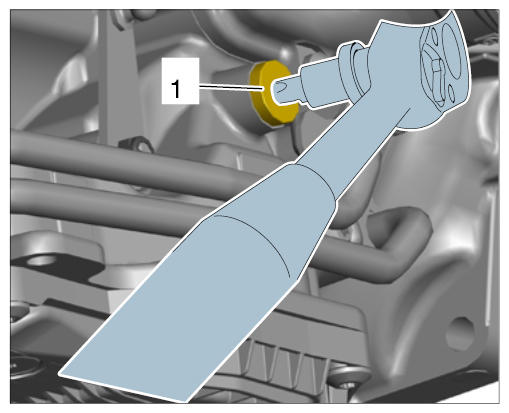

   Fig 2: Identifying Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Get the Porsche Doppelkupplung (PDK) ready and check ATF level.

   → 370235 CHECKING AND TOPPING UP ATF (CLUTCH FLUID)  - section on "Checking and topping up"
