Unscrewing Ground Strap From Body

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move front left seat back and up as far as possible.
  2. Disengage front trim panel at the rear -Arrow A-  , then unclip it by pulling it forward -Arrow B-  .

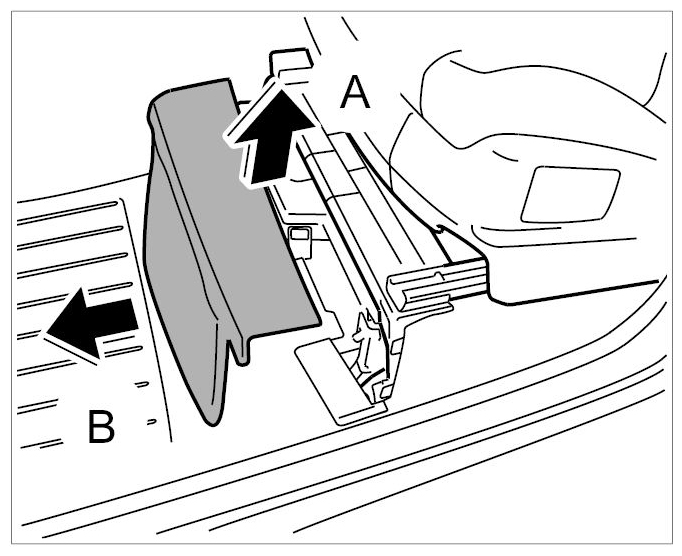

    Fig 1: Unclipping Front Seat Frame Trim Panel
    G09414818Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip the right carpet cover.

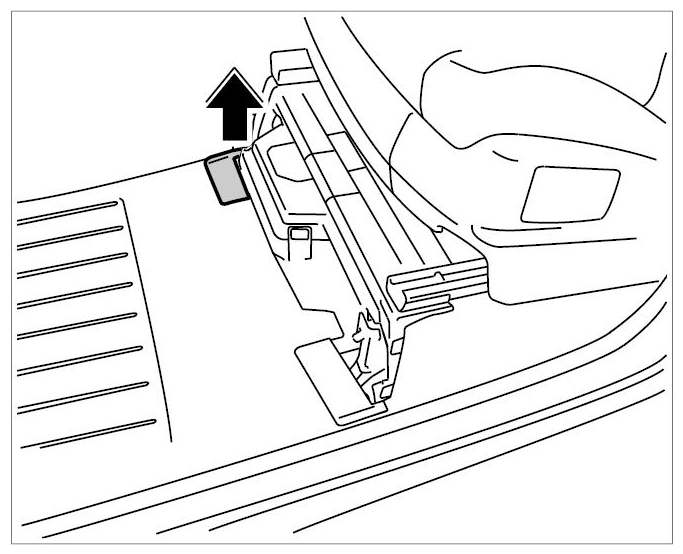

    Fig 2: Unclipping Inner Carpet Cover
    G09414819Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Fold carpeted floor forward -Arrow A-  , unscrew fastening nut -1-  from battery ground strap on the body and remove ground strap from the stud -Arrow B-  .

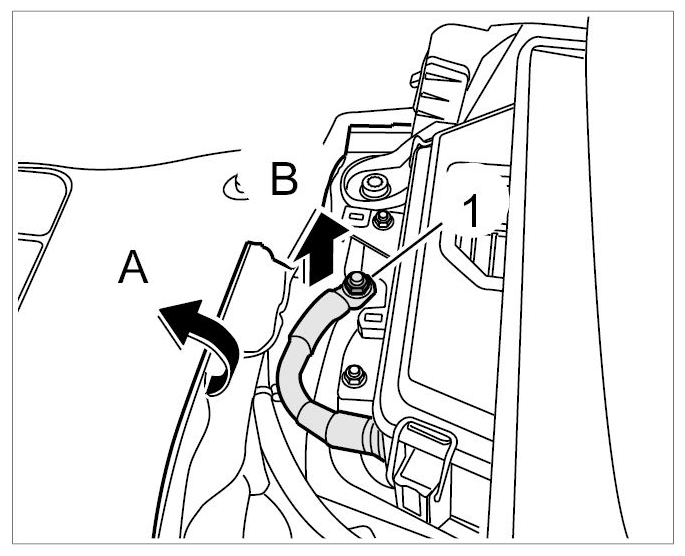

    Fig 3: Screwing Off Battery Ground Strap On Body
    G09414820Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Route or isolate ground strap so that all contact with a ground carrier (e.g. body, seat frame) is avoided.
