Screwing Ground Strap Onto Body

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

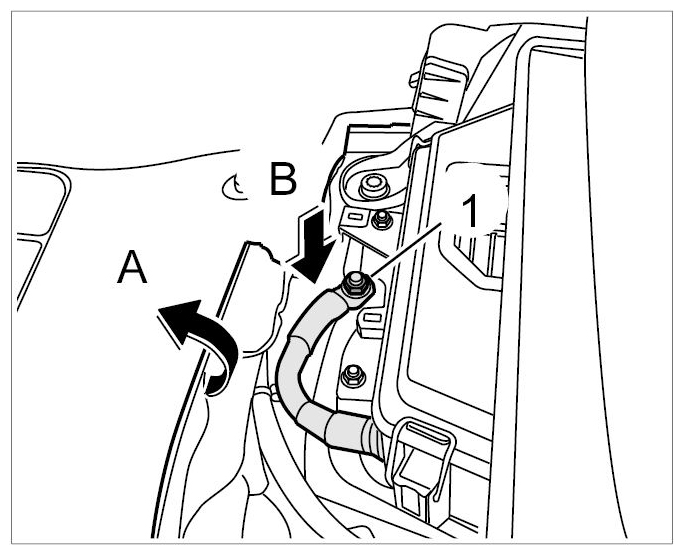

Fold carpeted floor forward -Arrow A- , place battery ground strap on the body -Arrow B- and tighten with the fastening nut -1- . → Tightening torque: 20 Nm (15 ft lbs.)

Fig 1: Securing Ground Strap To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

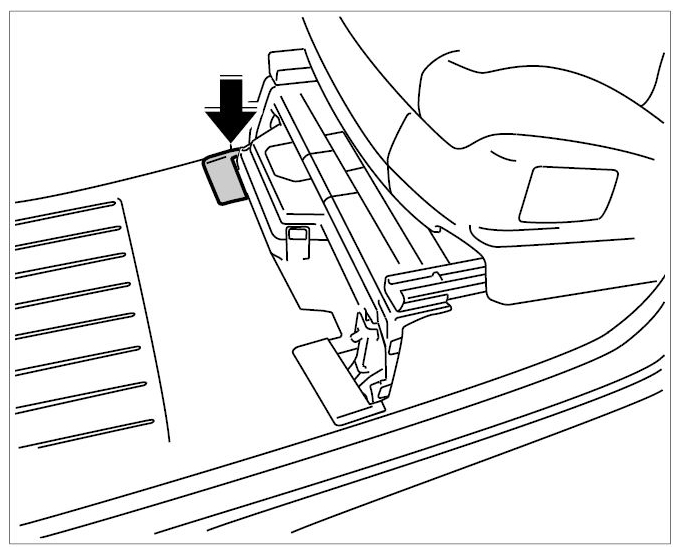

Clip in the right carpet cover until it engages securely.

Fig 2: Clipping In Inner Carpet Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

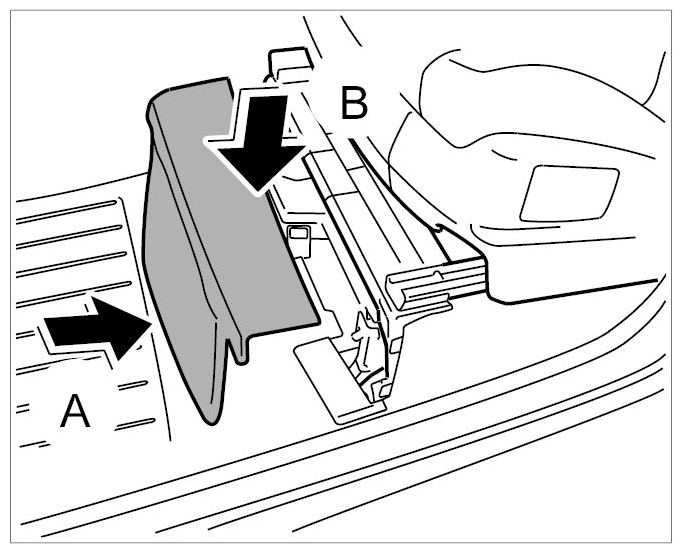

Clip in the front seat trim at the front seat frame and at the side trim panel -Arrow A- .

Fig 3: Clipping Front Seat Frame Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the front seat trim down -Arrow B- until the locking hooks engage securely on the seat frame.
