Installing Optical Contacts On Connector Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dust boot right before plugging.

Check the proper condition of the contacts.

Push optical contacts -A and B- into the connectors until they engage securely.
1. Optical contact, grey
2. Optical contact, black

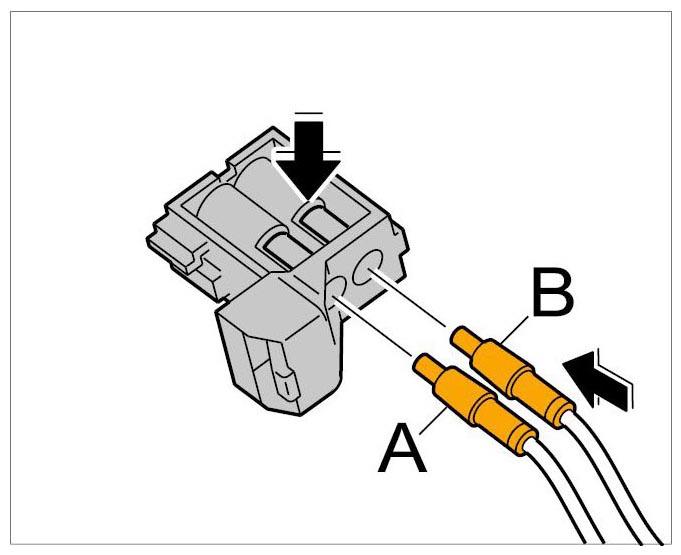

  Fig 1: Locking Primary Locking Mechanism Of Optical Contacts (Connector Side)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the secondary locking mechanism and check that the optical contacts are seated securely.

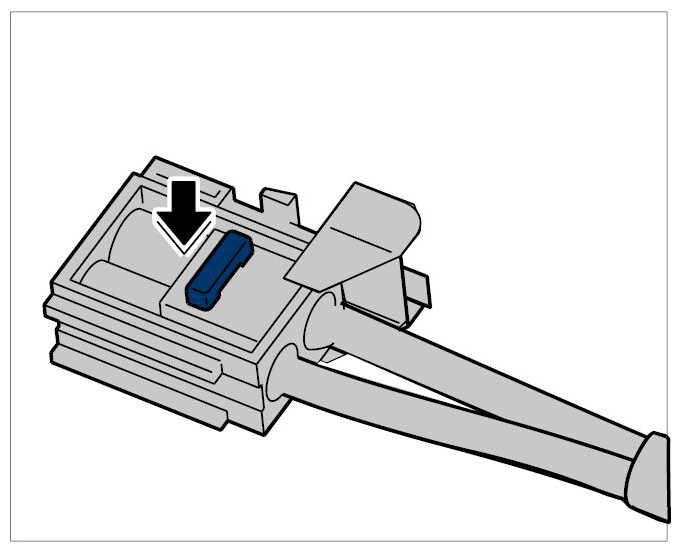

Fig 2: Locking Secondary Locking Mechanism Of Optical Contacts (Connector Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
