Optical Fiber (Lwl) - Module

In all MOST control units, at least one sending diode and one receiver diode are installed. The sending diode of a MOST device is connected to a receiver diode of a 2nd MOST device. This results in a ring where the light signal is reinforced in each control unit (in each control unit, the light signal is transformed into an electrical signal).

The graphic clarifies the cabling of the individual MOST control units which vary according to their equipment.

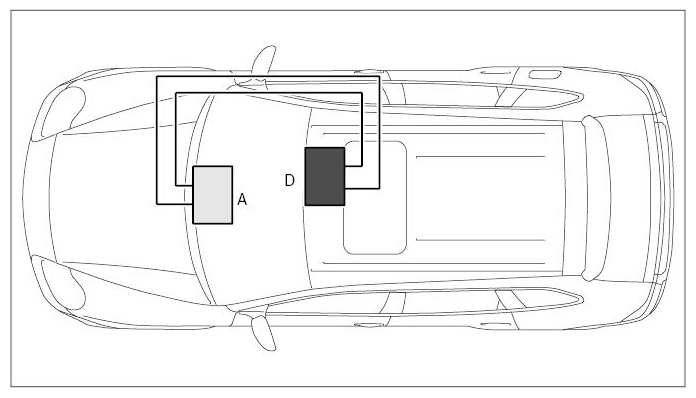

MOST control unit, variant A - D:

Fig 1: Identifying PCM And Telephone

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• -a-  Radio or PCM
• -d-  Telephone

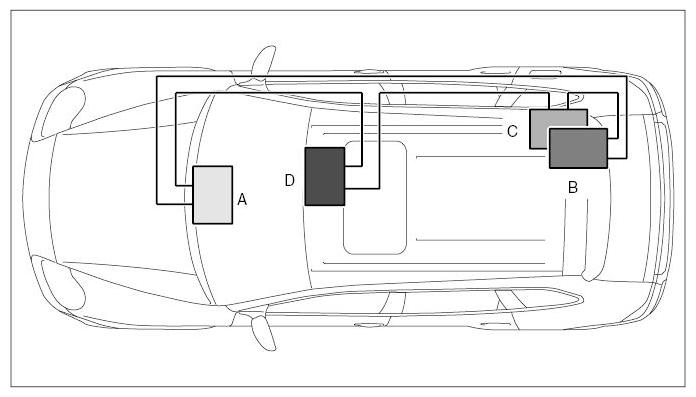

MOST control unit, variant A - B - C - D:

Fig 2: Identifying PCM, Booster, CD Changer And Telephone

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• -a-  Radio or PCM
• -b-  Booster
• -c-  CD changer
• -d-  Telephone
