Removing Ventilation Cover

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

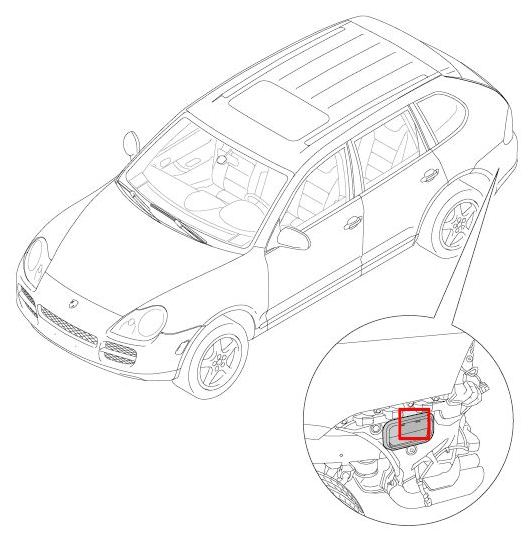

Fig 1: Overview Of Ventilation Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

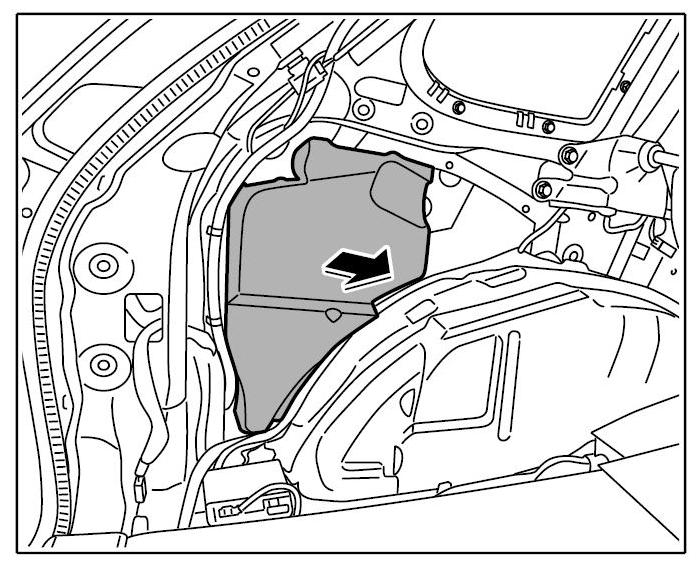

Remove styrofoam element (left side only) -arrow- .

Fig 2: Removing Styrofoam Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Simply push the styrofoam element aside when removing the right ventilation cover.

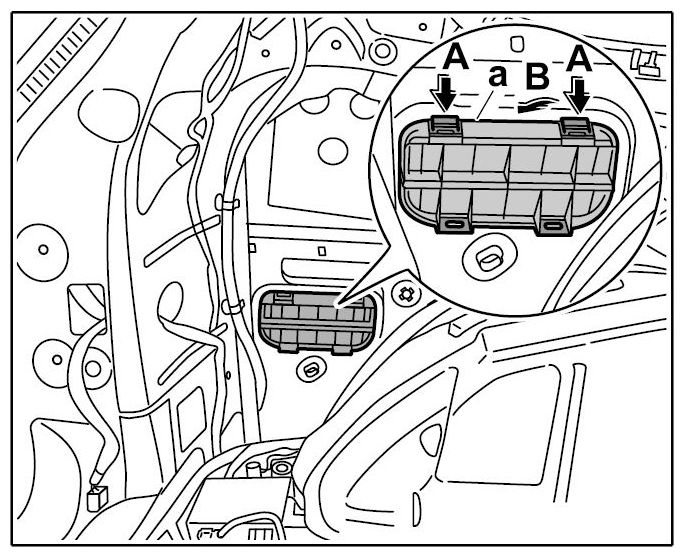

Press the upper locking tabs down -arrows A- , press the upper edge of the ventilation cover -a- outwards -arrow B- and remove it.

Fig 3: Removing Ventilation Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
