Installing Ventilation Cover

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

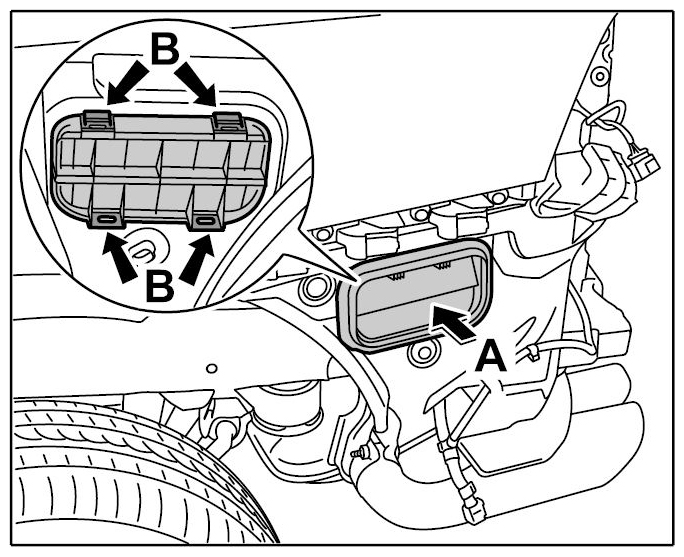

Push in the ventilation cover -arrow A- until you feel the locking tabs -arrows B- engage.

Fig 1: Installing Ventilation Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

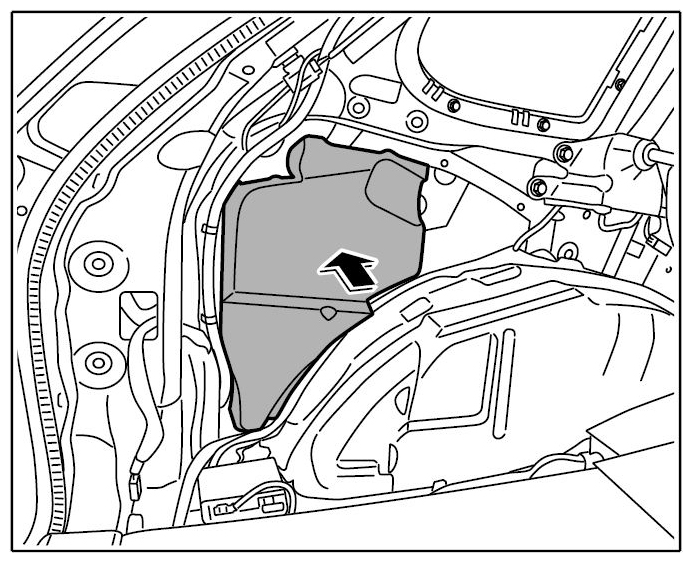

Insert styrofoam element -arrow- .

Fig 2: Installing Styrofoam Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
