Removing Middle Air Vent

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully insert a plastic spatula at the four points between the air vent and dashboard and prise out the air vent.

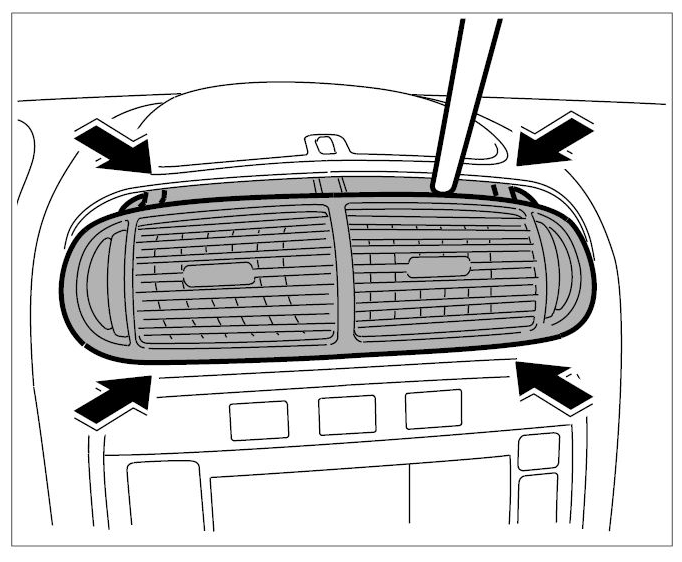

    Fig 1: Inserting Plastic Spatula Between Air Vent And Dashboard
    G09414448Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press the electrical plug connection and pull off the plug.
