Removing Heater/Fresh-Air Blower Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

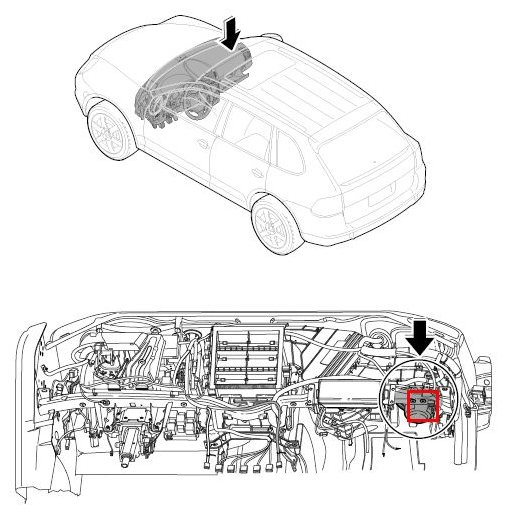

Fig 1: Overview Of Heating And Fresh Air Blower Motor

G09414443

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press the plug -A- together and pull off.

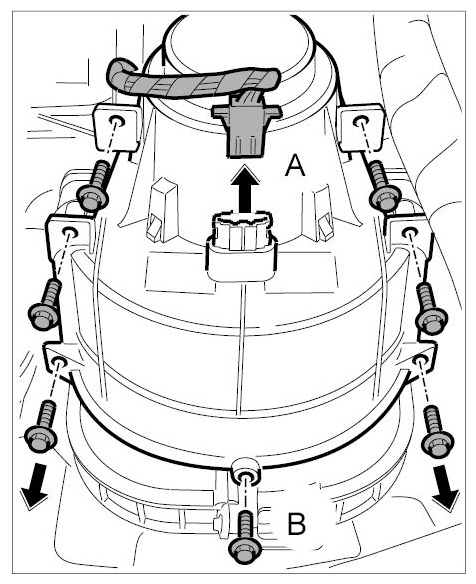

Fig 2: Unscrewing Plug Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew seven fastening screws -B- .
Lift the electrical leads to one side and remove the fan downwards.

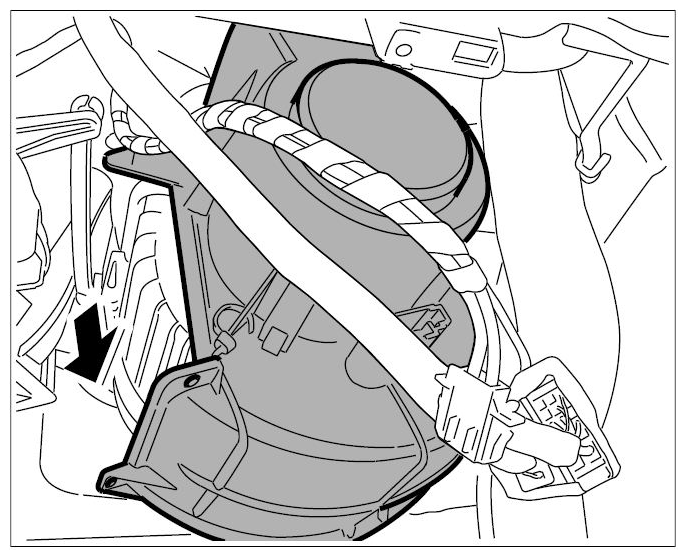

Fig 3: Removing Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
