Installing Heater/Fresh-Air Blower Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Lift the electrical leads to one side and push fan into housing from underneath.

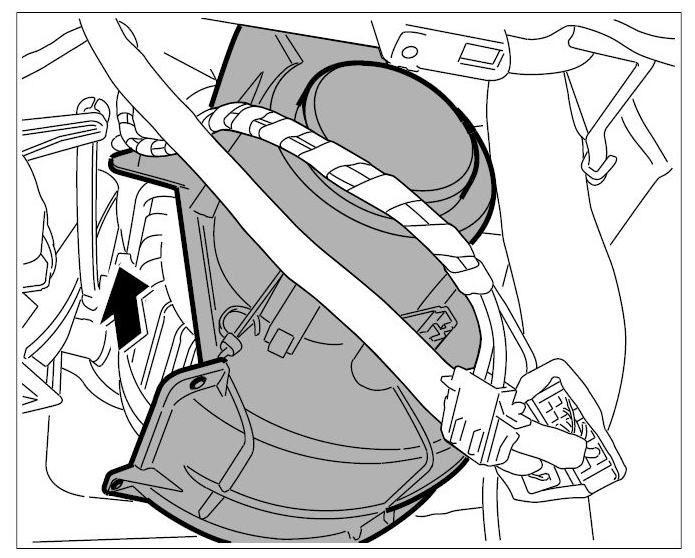

Fig 1: Installing Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hold the fan, screw in the seven fastening screws -B- and screw down.

Fig 2: Screwing Down Plug Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the electrical plug connection -A- until the plug can be felt to engage.
Switch on ignition and the blower in stages on the heating and fresh-air control. Check the function of the blower.
