Removing Load-Through Provision

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

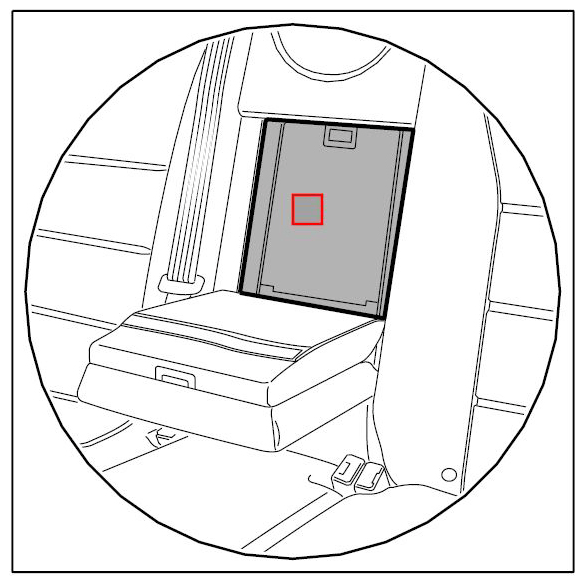

Fig 1: Identifying Load-Through Provision

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folding over rear seat and left rear seat back

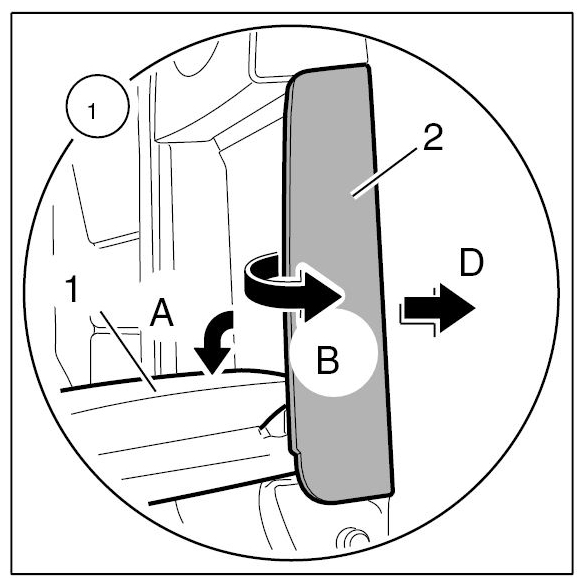

Open up armrest -1- -Arrow A- .

Fig 2: Opening Armrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel the armrest cover -2- out over the backrest frame -Arrow B- .

Fig 3: Rotating Armrest Cover - 2 Out Over Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

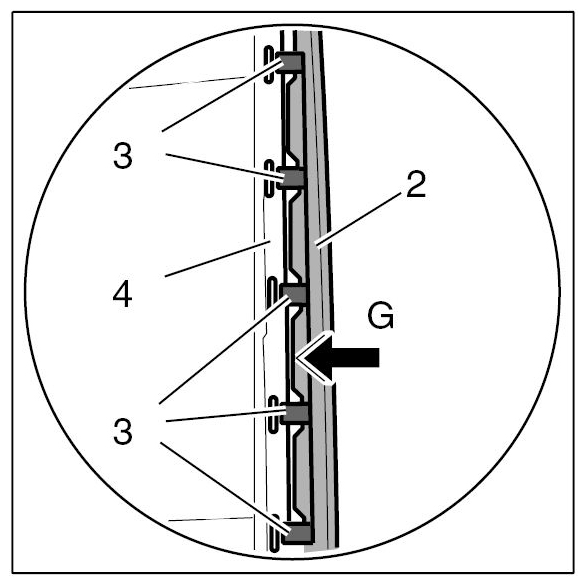

Unclip locking tabs -3- of armrest cover -2- at the backrest frame -4- -Arrow C- and remove downwards -Arrow D- .

Fig 4: Unclipping Locking Tabs Of Armrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Removing Armrest Cover At Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

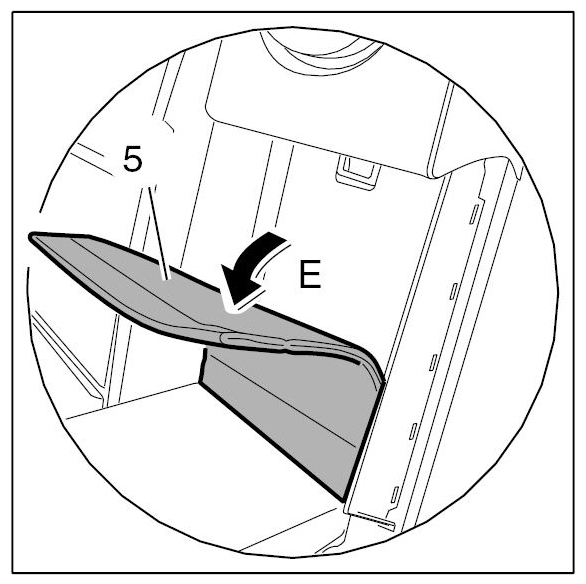

Remove cover of load-through provision: fold over cover for backrest -5- -Arrow E- .

Fig 6: Removing Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open front lid -6- -Arrow F- .

Fig 7: Opening Front Lid - 6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

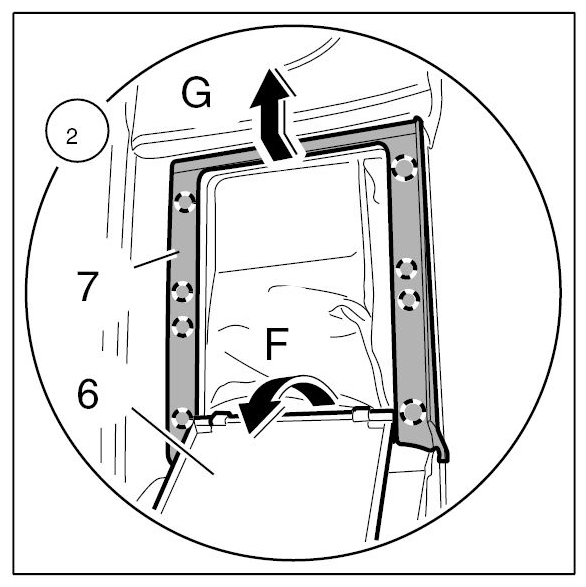

Unclip cover of load-through provision -7- -circle marks- and remove -Arrow G- .

Fig 8: Unclipping Cover Of Load-Through Provision (7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

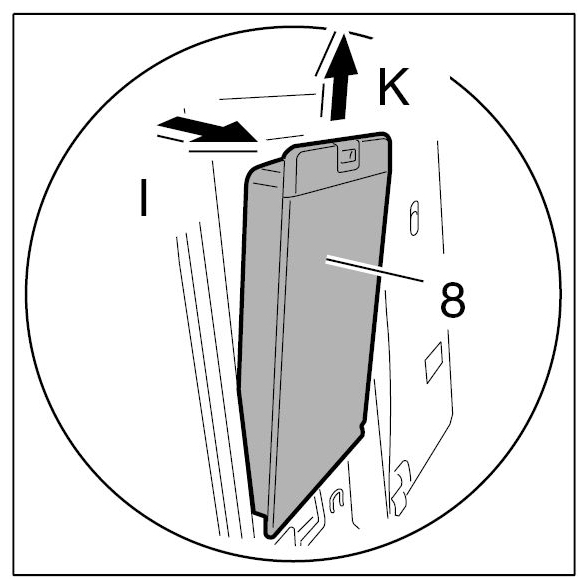

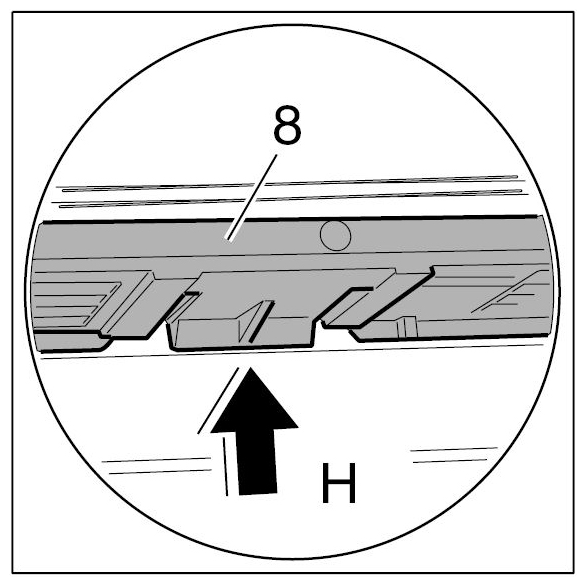

Unclip load-through provision -8- -Arrow H- , press out to the rear -Arrow I- and pull up and out -Arrow K- .

Fig 9: Unclipping Cover Of Load-Through Provision (8)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

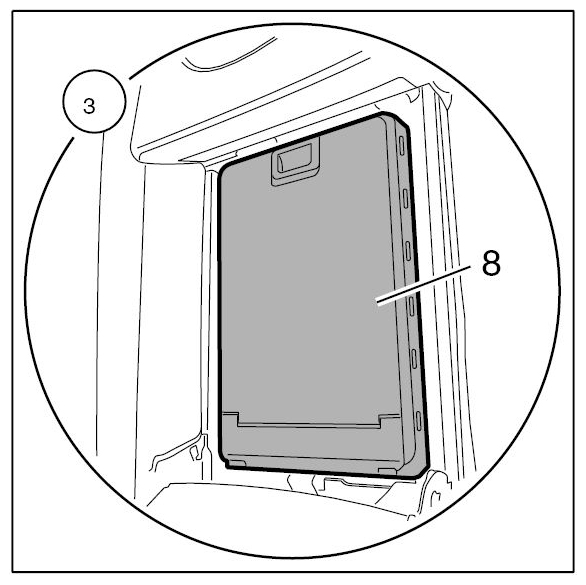

Fig 10: Removing Load-Through Provision (H)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 11: Removing Load-Through Provision (K)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
