Installing Load-Through Provision

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

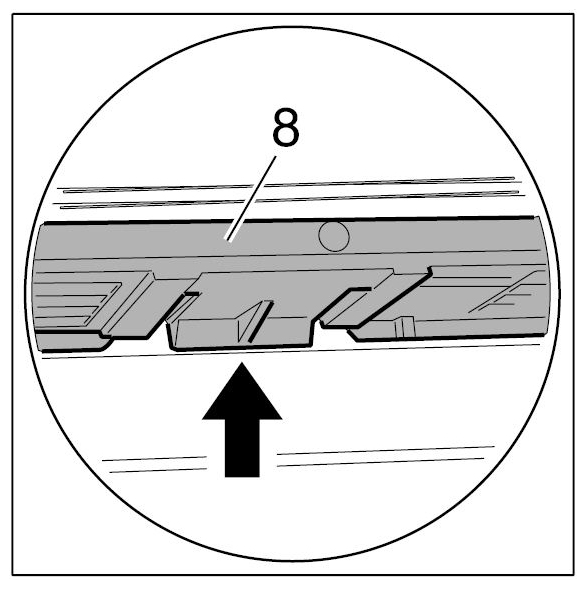

Fig 1: Identifying Load-Through Provision

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

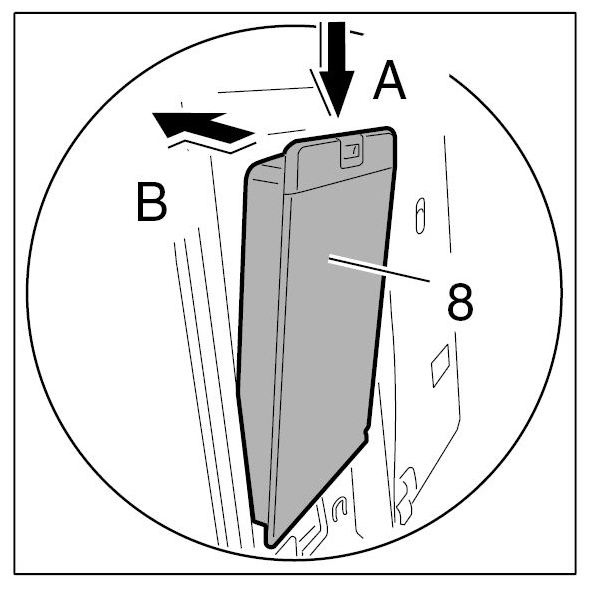

Insert load-through provision -8- -Arrow A- and push forward, until the locking tabs -arrow- audibly engage -Arrow B- .

Fig 2: Inserting Load-Through Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

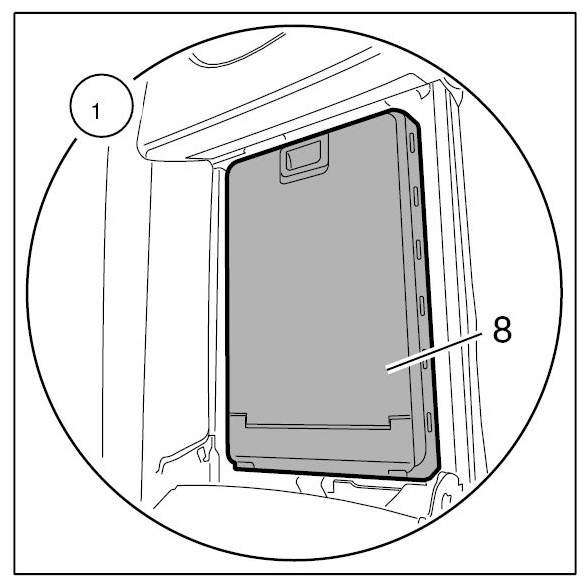

Fig 3: Identifying Load-Through Provision - 8
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

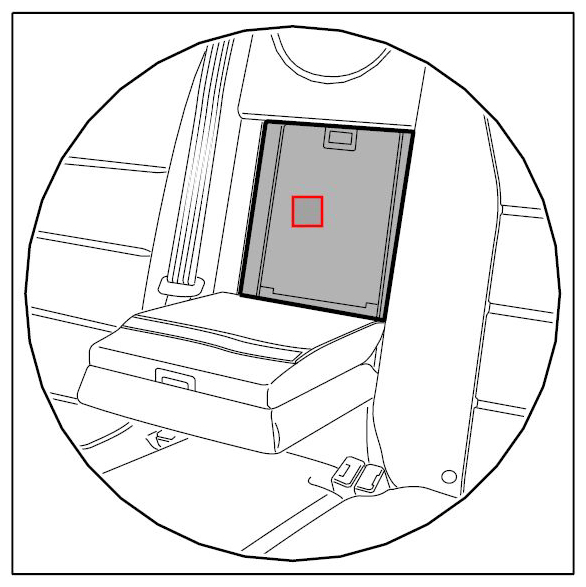

Fig 4: Inserting Load-Through Provision (8)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

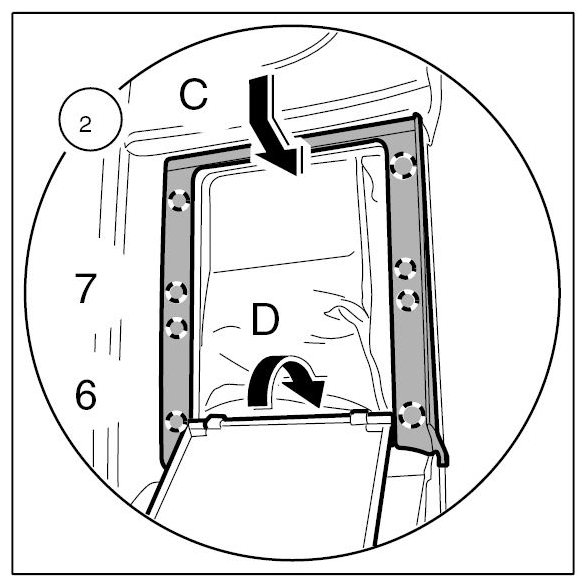

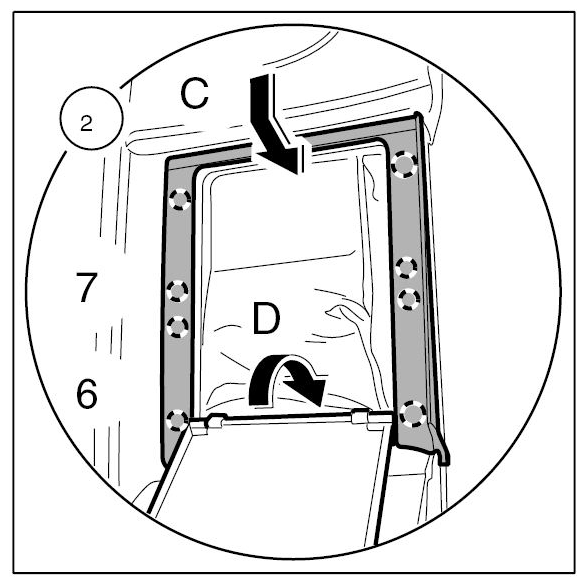

Install cover of load-though provision: Insert cover of load-through provision -7- -Arrow C- and clip in -circle marks- .

Fig 5: Installing Cover Of Load-Though Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close front lid -6- -Arrow D- .

Fig 6: Closing Front Lid - 6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

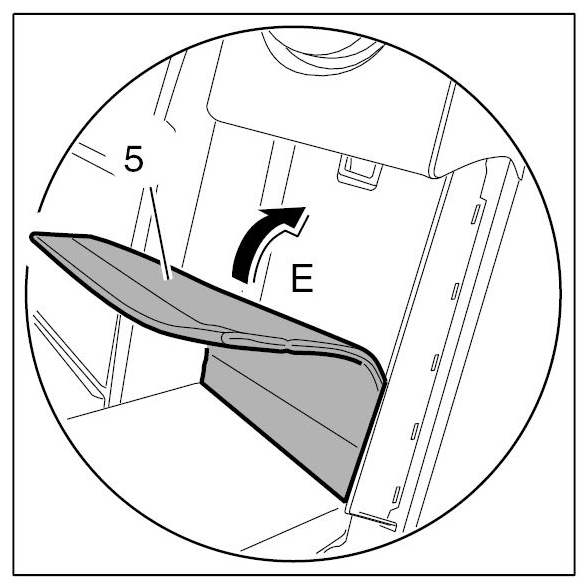

Fold over cover for backrest -5- -Arrow E- .

Fig 7: Folding Over Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

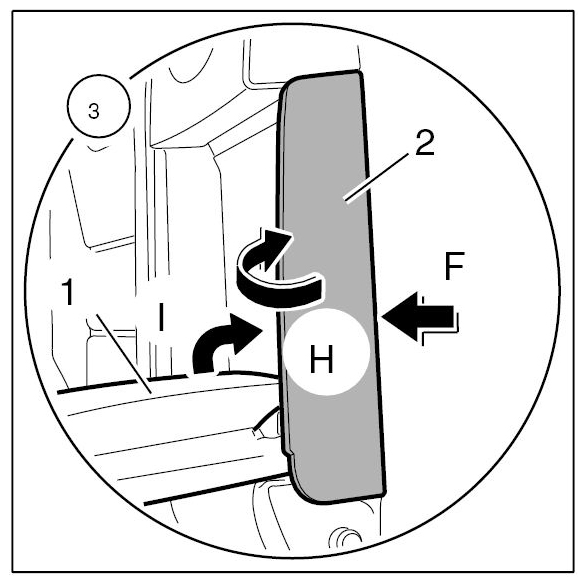

Insert armrest cover -2- from below -Arrow F- and clip onto the backrest frame using the locking tabs -3- -Arrow G- .

Fig 8: Inserting Armrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

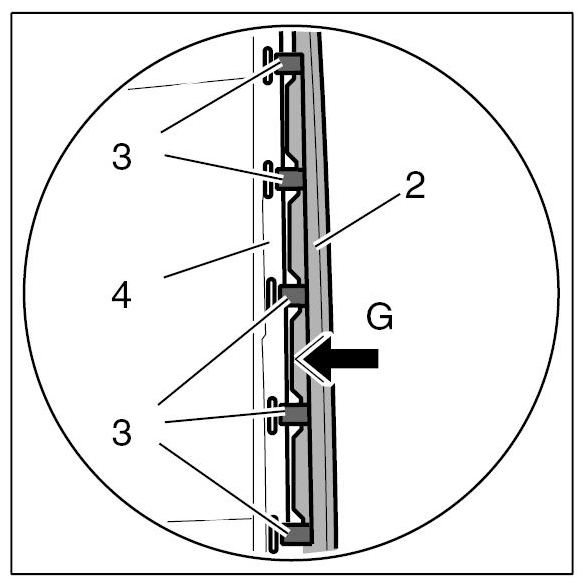

Fig 9: Installing Armrest Cover Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

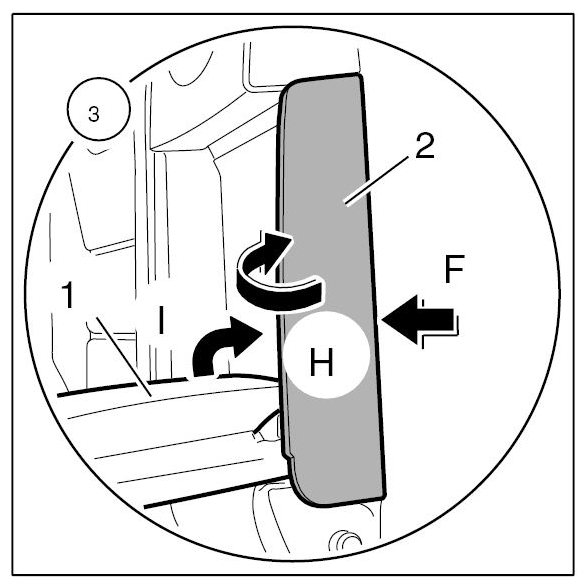

Swivel the armrest cover -2- in over the backrest frame -Arrow H- .

Fig 10: Rotating Armrest Cover - 2 Over Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close arm rest with cover -1- -Arrow I- .

Fig 11: Closing Arm Rest With Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold over rear seat and left rear seat back:
