Removing Padding For 2/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

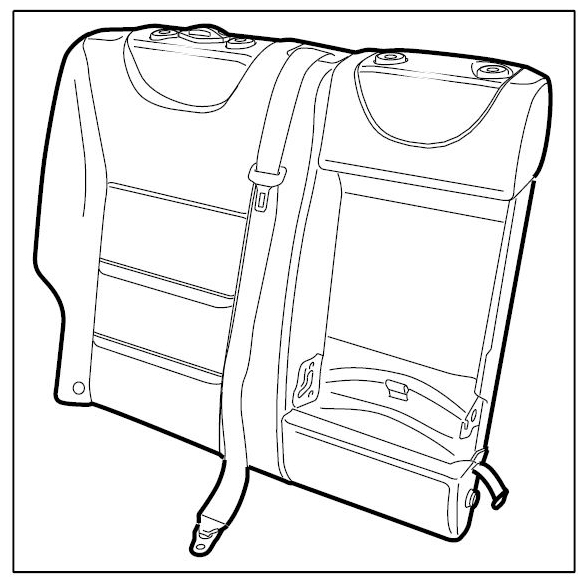

Fig 1: Removing Padding For 2/3-Split Folding Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

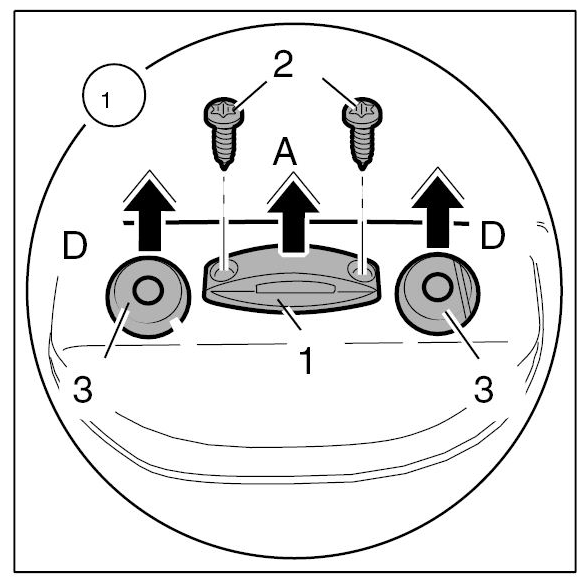

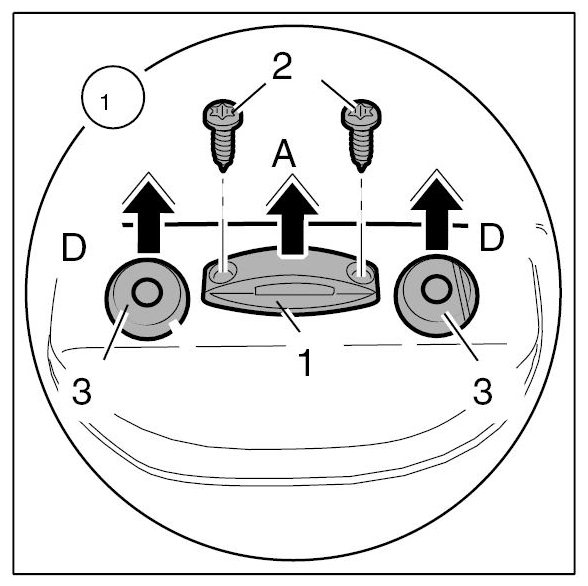

Remove support: Undo fastening screws -2- .

Fig 2: Removing Headrest Support (2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take off support -1- (-Arrow A- ).

Fig 3: Removing Headrest Support (1)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

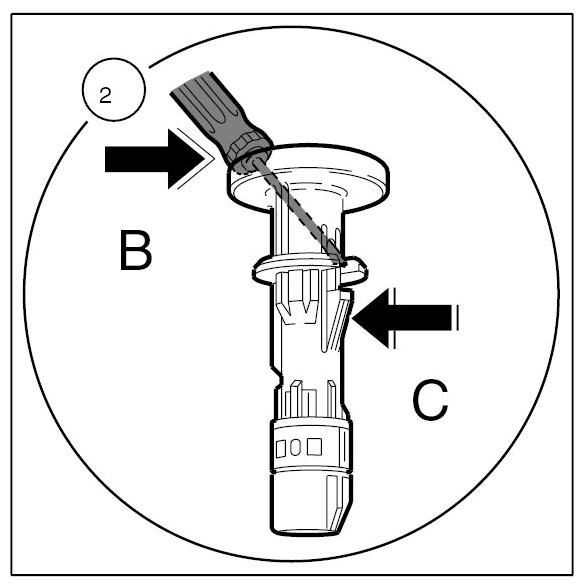

Removing headrest guides: Insert screwdriver (width 2 mm) from inside into bore above locking tab.
Press screwdriver in direction of arrow -Arrow B- and release locking tab -Arrow C- .

Fig 4: Releasing Headrest Locking Tab Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out headrest guides -3- -Arrow D- .

Fig 5: Pulling Out Headrest Guides - 3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

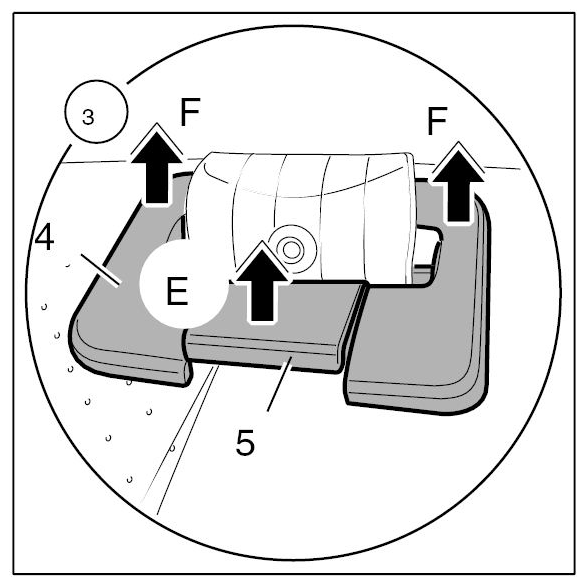

Unclip seat belt cover -5- -Arrow E- .

Fig 6: Unclipping Seat Belt Cover - 5
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip safety belt cover -4- and remove it (-Arrows F- .

Fig 7: Unclipping Seat Belt Cover - 5
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover of loading equipment.

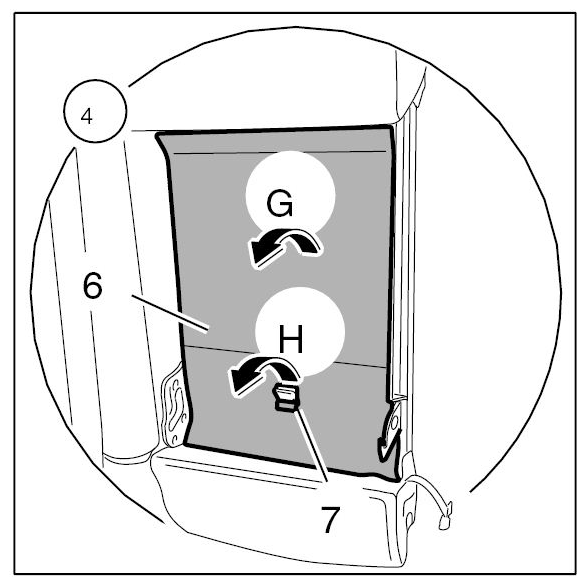

1. 8.1. Remove cover of load-through provision: Fold over cover for backrest -6- -Arrow G- and pull out over the holding strap -7- -Arrow H- .

  Fig 8: Detaching Backrest Cover Holding Strap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

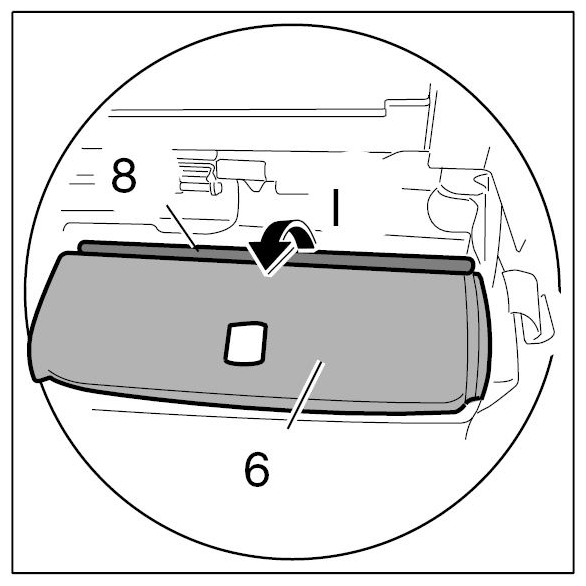

Detach plastic strip -8- of covering for backrest -6- on backrest frame -Arrow I- .

Fig 9: Detaching Backrest Cover Plastic Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

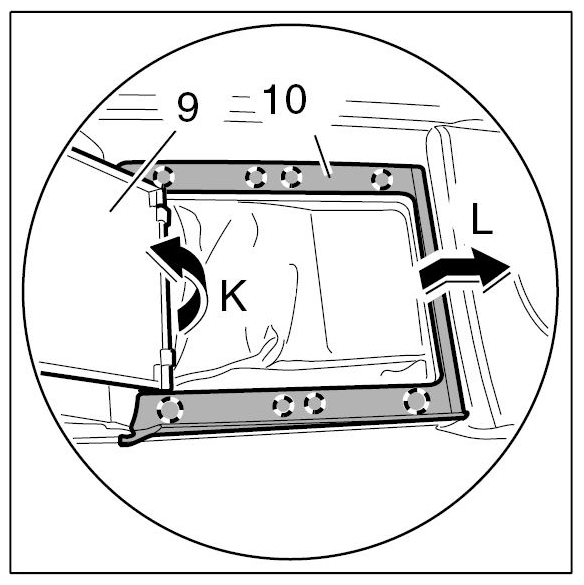

Open front lid -9- -Arrow K- .

Fig 10: Opening Front Lid - 9
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover of load-through provision -10- -circle marks- and remove -Arrow L- .

Fig 11: Removing Load-Through Provision Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

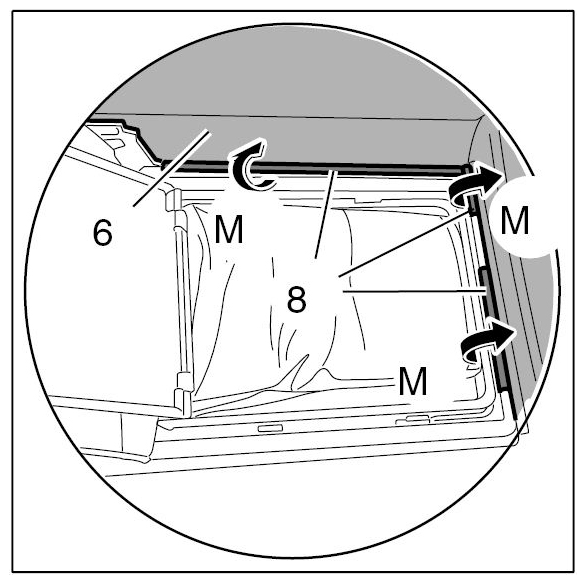

Detach plastic strips -8- of covering for backrest -6- -Arrows M- .

Fig 12: Detaching Backrest Cover Plastic Strip (8)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

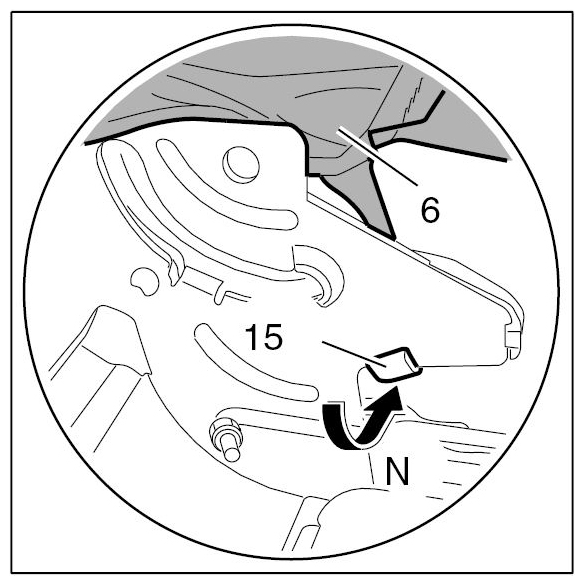

Detach hook -15- of covering for backrest -6- -Arrow N- .

Fig 13: Detaching Backrest Cover Hook
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

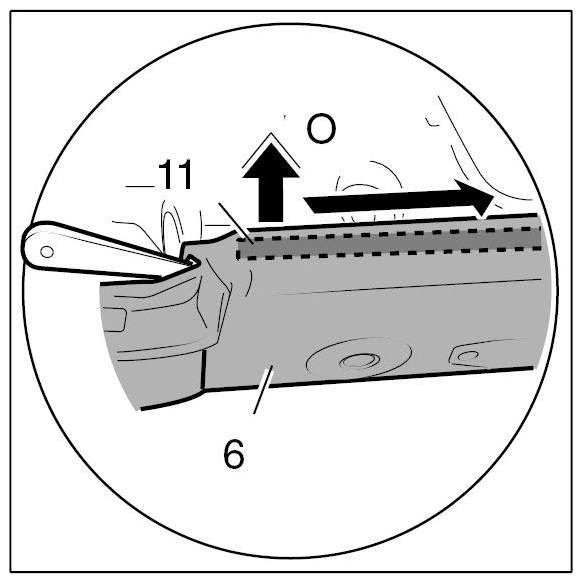

Lever out piping -11- of cover for seat -6- with a plastic wedge at the upper right corner -Arrow O- .

Fig 14: Removing Seat Cover Piping Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

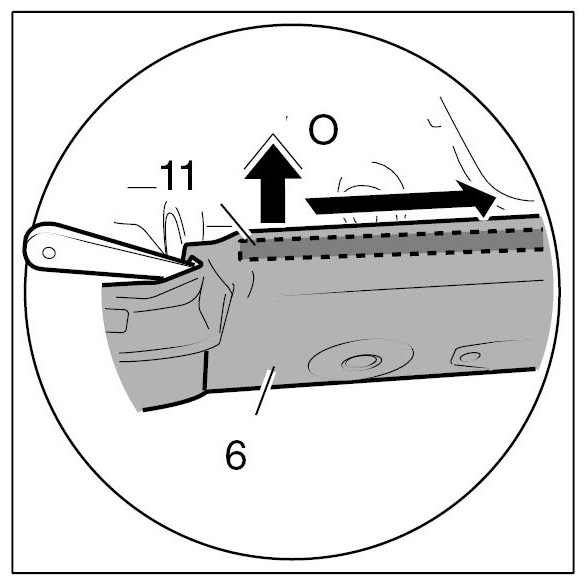

Pull piping -11- of cover for backrest -6- out completely in the direction of the arrow.

Fig 15: Pulling Seat Cover Piping Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

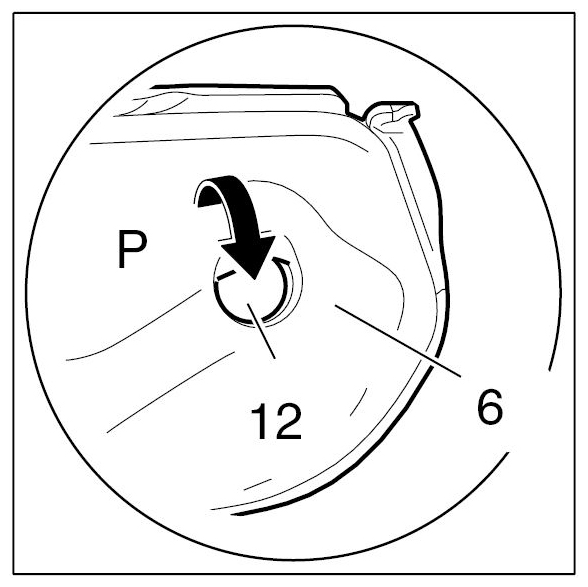

Pull covering for backrest -6- over the pin -12- -Arrow P- .

Fig 16: Pulling Cover For Backrest - 6 Over Pin - 12
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

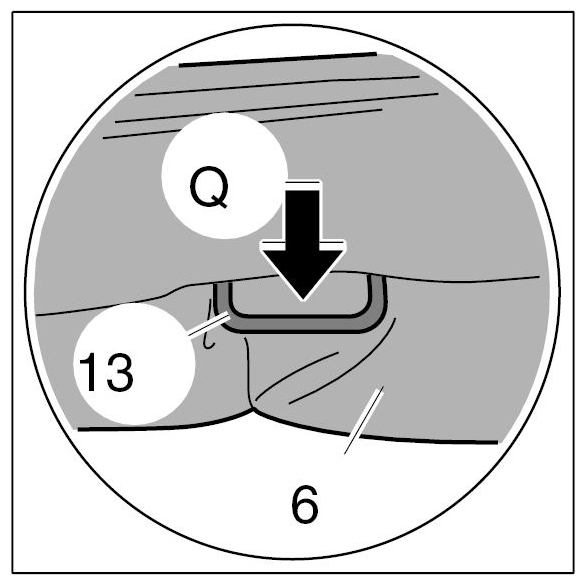

Pull covering for backrest -6- over the holder for child-lock button -13- -Arrow Q- .

Fig 17: Pulling Backrest - 6 Cover Over Child-Lock Button Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

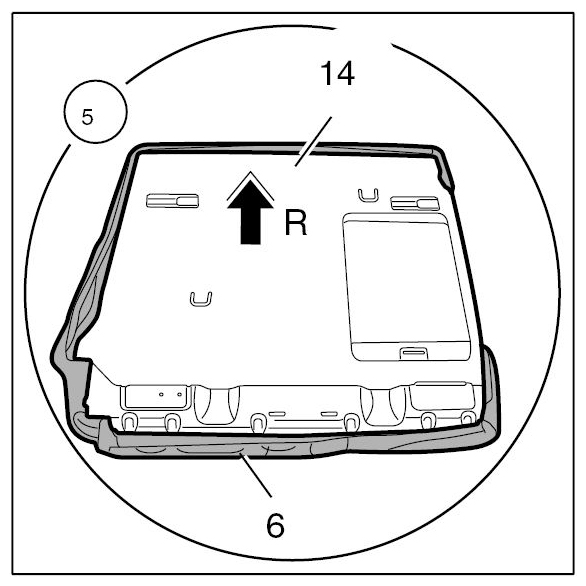

Remove backrest frame -14- from padding with cover -6- -Arrow R- .

Fig 18: Removing Backrest Frame 14 From Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for rear backrest: → Removing Cover For Rear Backrest
