Removing Cover For 2/3-Split Folding Rear Bench

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

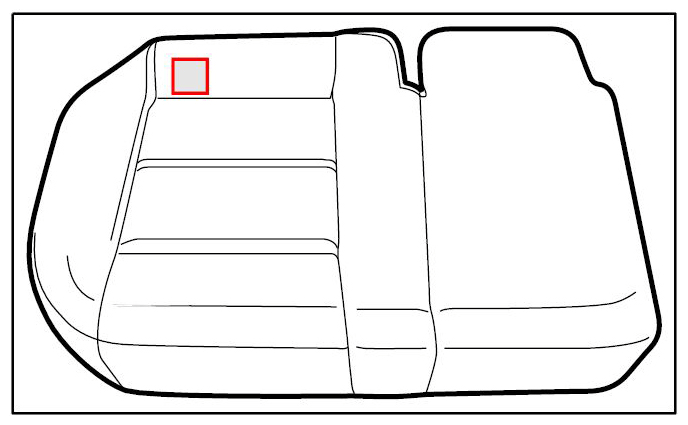

Fig 1: Identifying 2/3-Split Folding Rear Bench Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove padding for rear bench: → Removing Padding For 1/3 Split Folding Rear Seat

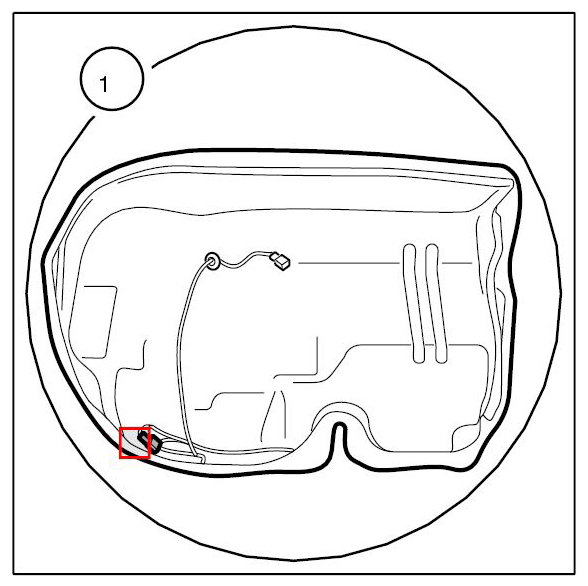

Fig 2: Removing Cover For 2/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connection (only for vehicles with seat heater): Release plug connection -1- -Arrow A- and disconnect -Arrows B- .

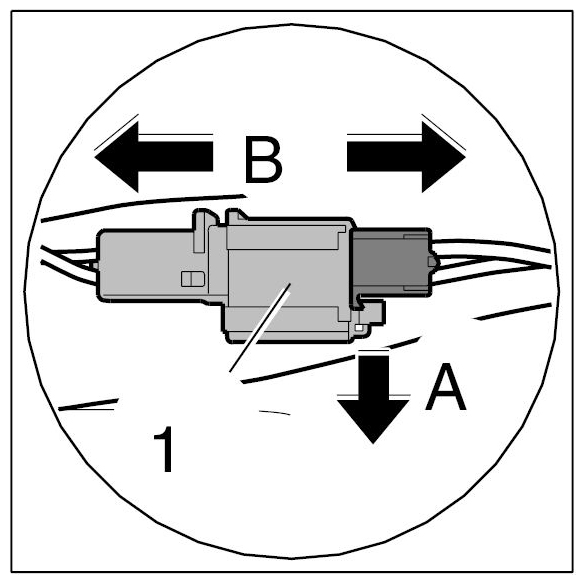

Fig 3: Releasing 2/3-Split Folding Rear Seat Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove covering: Cut open the cushion clips -2- in the order shown -a to d- and at the positions indicated -circle marks- using side cutters and remove the cover -3- from the padding -Arrow C- . The remaining pieces of the cushion clips -2- must be removed.

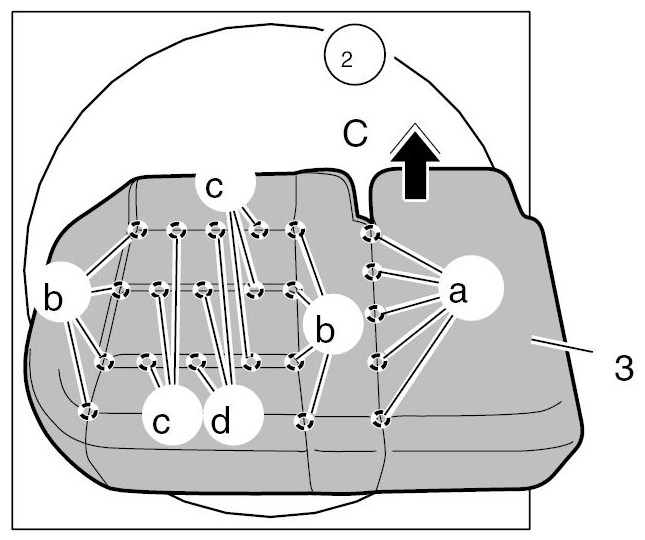

Fig 4: Removing Padding Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

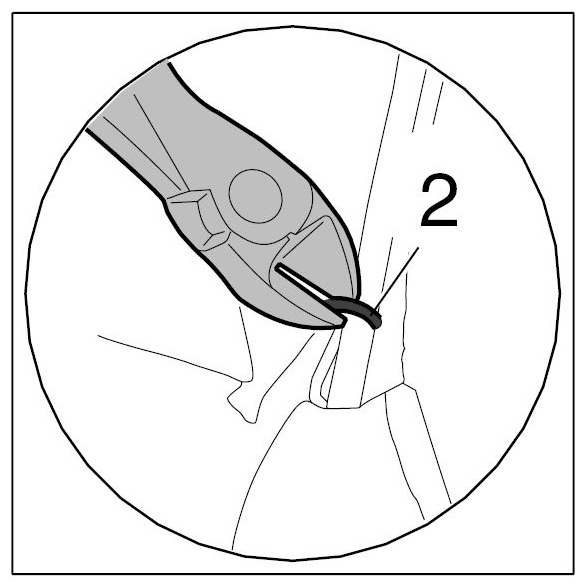

Fig 5: Removing Cushion Clips Using Side Cutters
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
