Removing Padding For 2/3-Split Folding Rear Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

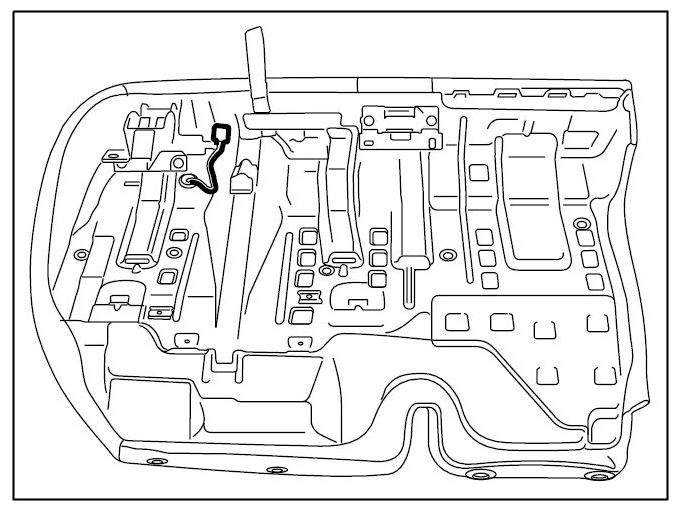

Fig 1: Identifying 2/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove rear seat. → Removing back seat

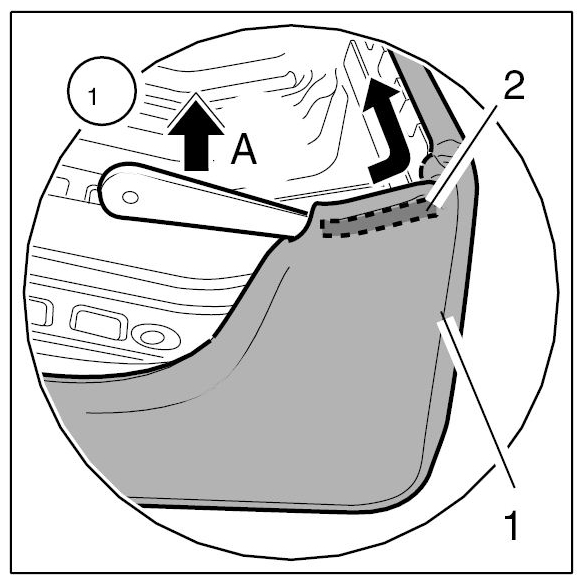

Lever out piping -2- of cover for rear seat -1- by inserting a plastic wedge into the front left corner -Arrow A- .

Fig 2: Removing Rear Seat Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull piping -2- of cover for rear seat -1- out completely in direction of arrow.

Fig 3: Pulling Rear Seat Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

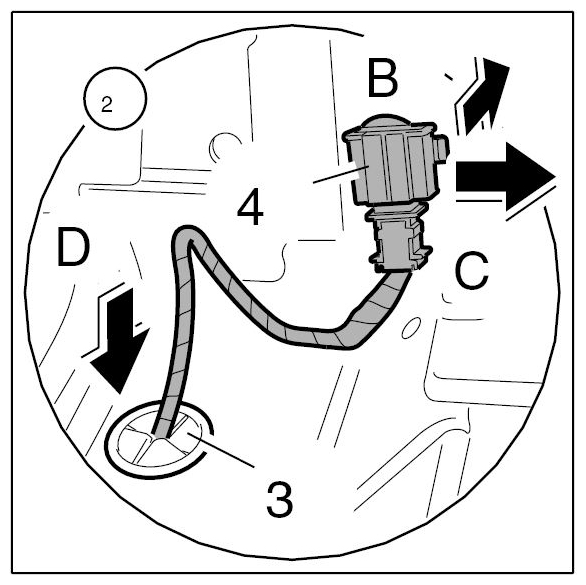

Release wire harness for seat heater (only for vehicles with seat heater): Release connector -4- -Arrow B- and pull it off -Arrow C- .

Fig 4: Releasing Wire Harness For Seat Heater
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

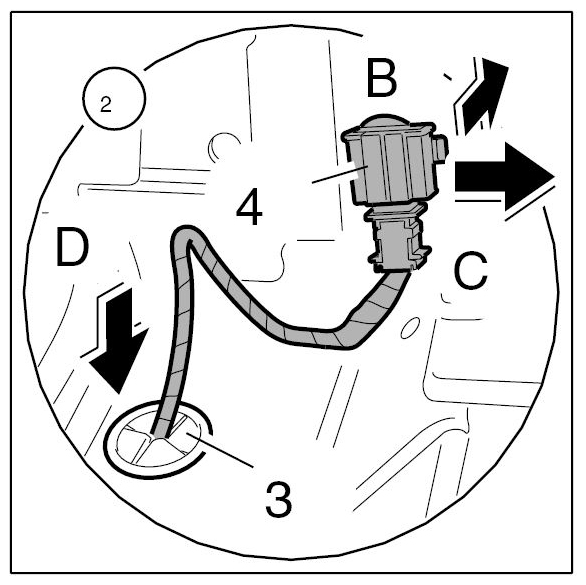

Press grommet -3- with connector -4- out of the seat frame -Arrow D- .

Fig 5: Pressing Grommet And Connector Out Of Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

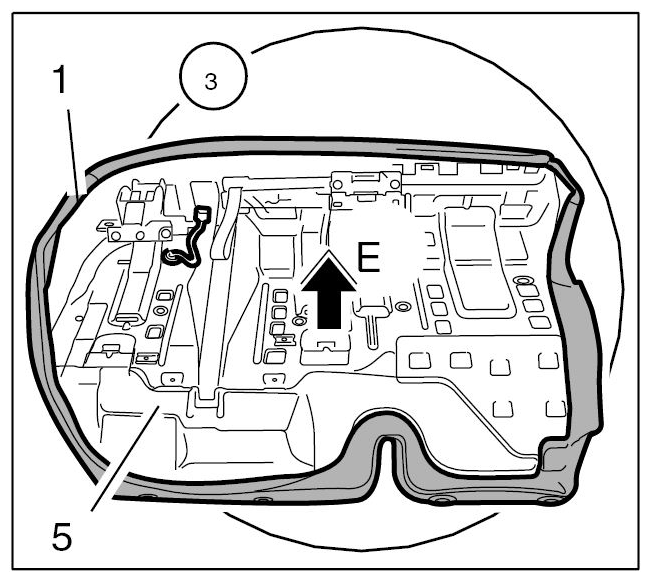

Remove padding: Remove seat frame -5- from padding with cover -1- -Arrow E- .

Fig 6: Removing Seat Frame From Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for rear seat.
