Installing Heating Element For Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

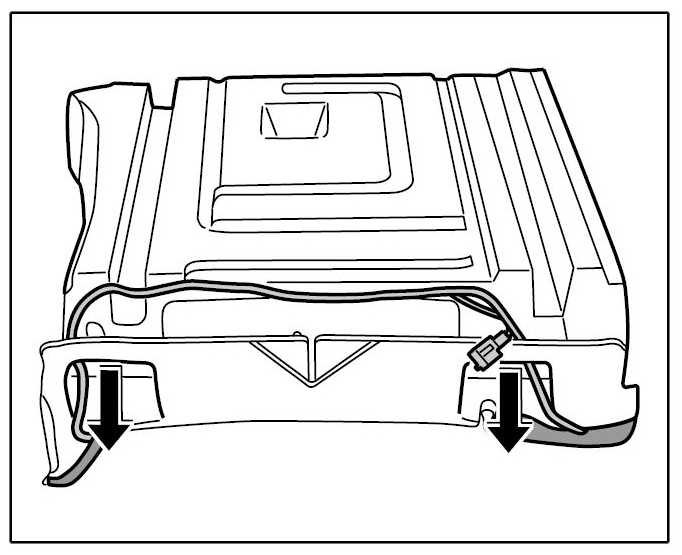

Insert the heating elements through the padding.

Fig 1: Installing Heating Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Stick on the heating elements individually.

  Fig 2: Sticking Heating Elements
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

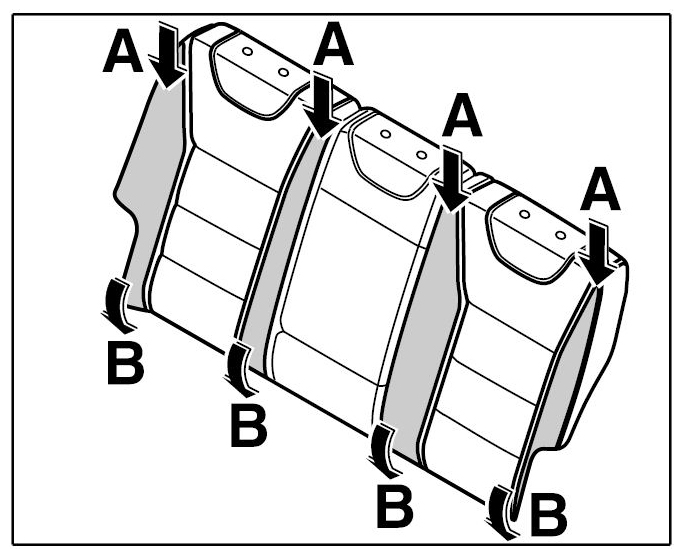

Align heating element to contour of padding.
Remove protective film and, starting from the lower edge, stick heating element -Arrows A- onto the padding -Arrows B- .

Fig 3: Sticking On Heating Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
