Removing Heating Element For Rear Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The side bolster heating elements -1- are connected by an electrical lead and can only be replaced together.

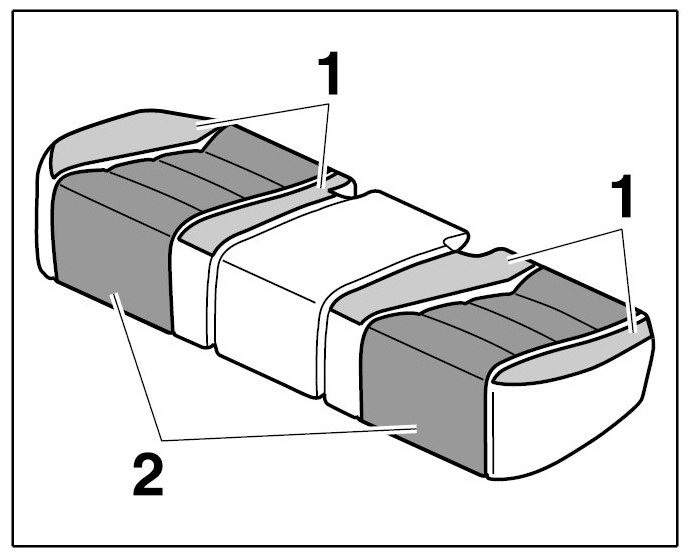

Fig 1: Identifying Heating Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The heating element is sewn into the cover in the area of the seat cushion -2- and can only be replaced together with the cover.
Remove the heating elements with care, otherwise the padding will be damaged.
If necessary, carefully warm the heating elements with a hot-air gun. The temperature must not exceed 50°C!

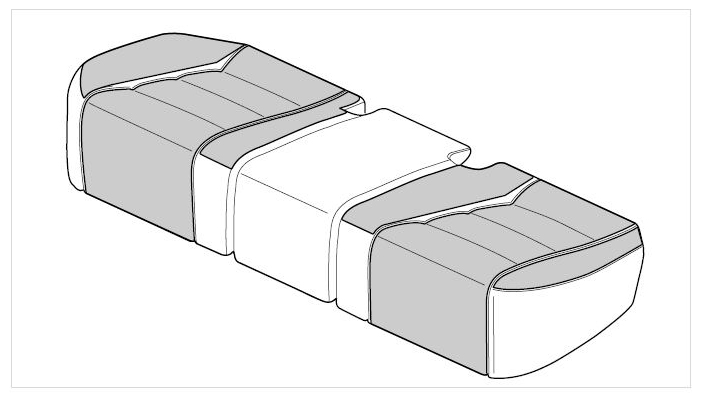

Fig 2: Overview Of Heating Element For Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully remove the heating elements starting from the front -arrows- .

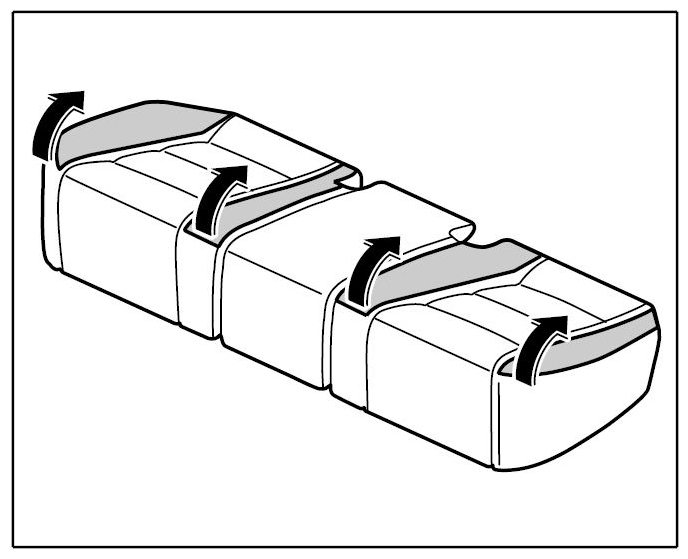

Fig 3: Removing Heating Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
