Installing Heating Element For Rear Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Stick on the heating elements individually.

Align heating element to contour of padding.

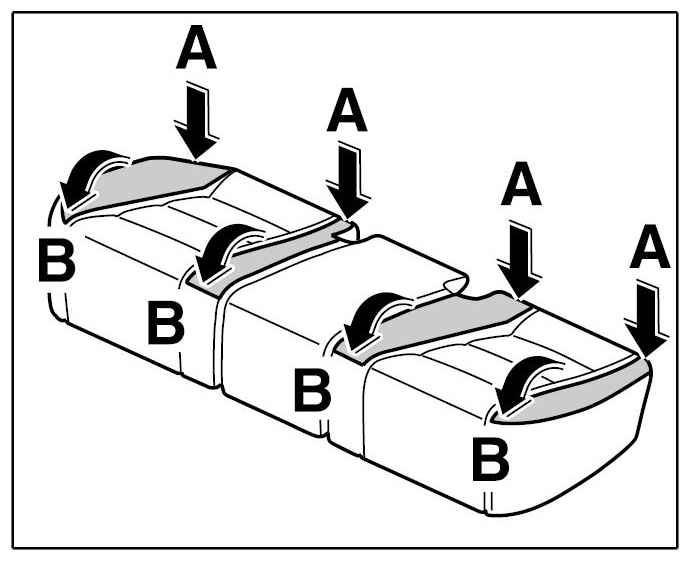

Remove protective film and, starting from the rear edge, stick heating element -Arrows A- onto the padding -Arrows B- .

Fig 1: Installing Heating Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

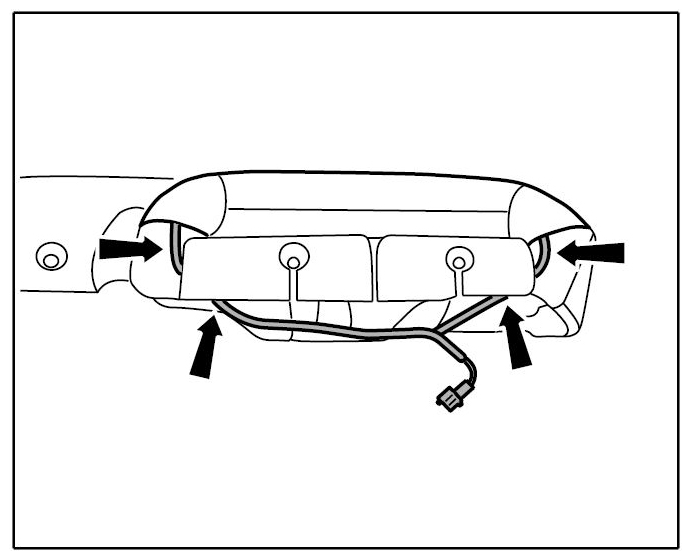

Position the line in the padding -arrows- .

Fig 2: Positioning Pad Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
