Installing Heating Element For Backrest

Information

• Install the heating elements starting from the right or left backrest side bolster.

1. Align heating element to contour of padding.
2. Remove protective film and stick heating element -a-  , starting from the top edge -A-  , onto the padding -Arrow B-  .

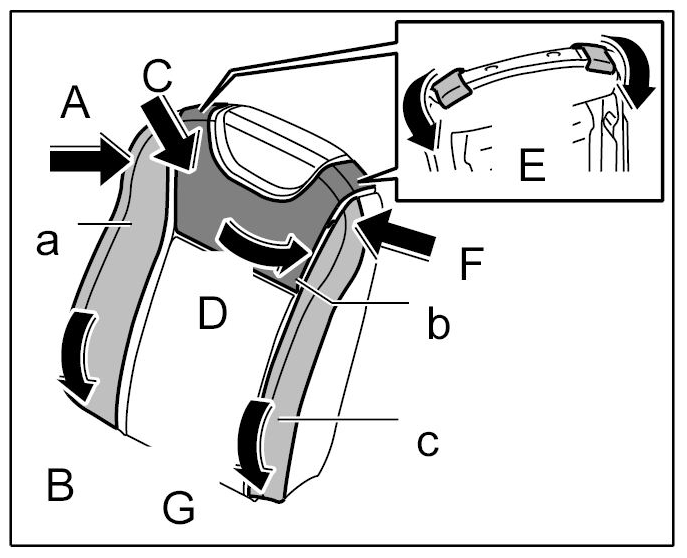

   Fig 1: Removing Protective Film And Stick Heating Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove protective film and stick heating element -b-  , starting from the attached heating element -Arrow C-  , onto the padding -Arrow D-  .

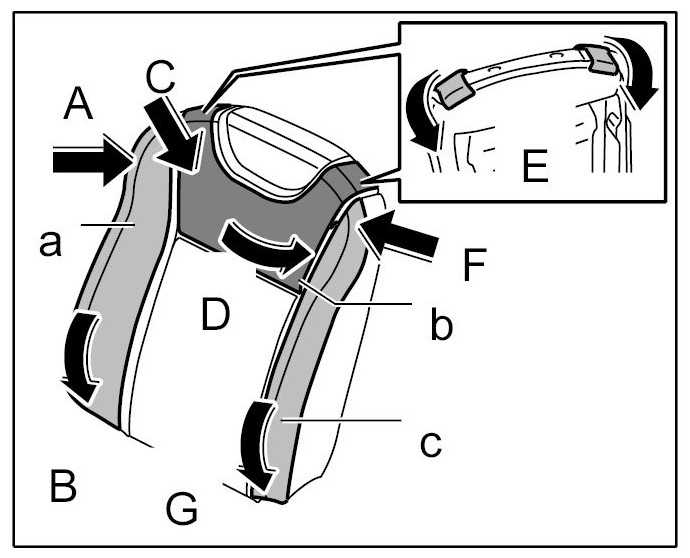

   Fig 2: Removing Protective Film And Stick Heating Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Affix heating element -b-  in the area of the neck rest from front to rear -Arrow E-  .

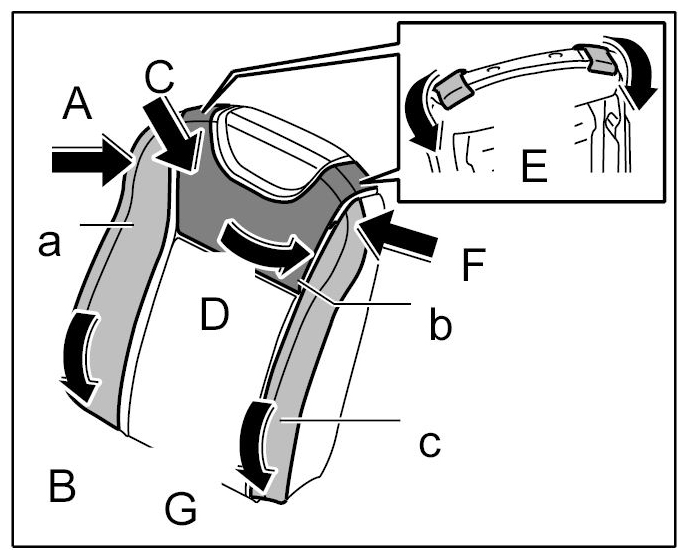

   Fig 3: Installing Heating Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove protective film and stick heating element -c-  , starting from the top edge -F-  , onto the padding -Arrow G-  .
   Fig 4: Removing Protective Film And Stick Heating Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Install cover for backrest

   → Installing Cover For Front Backrest
