Removing Heating Element For Front Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The heating elements for the lower leg support -1- and side bolsters -2- are connected by electrical leads and can only be replaced together.

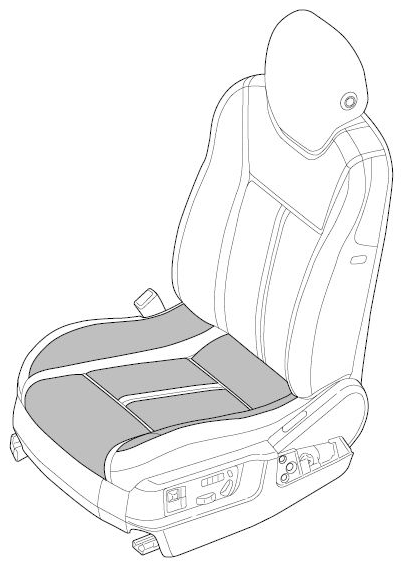

Fig 1: Identifying Heating Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The heating element is sewn into the cover in the area of the seat cushion -3- and can only be replaced together with the cover.
Remove the heating elements with care, otherwise the padding will be damaged.
If necessary, carefully warm the heating elements with a hot-air gun. The temperature must not exceed 50°C!

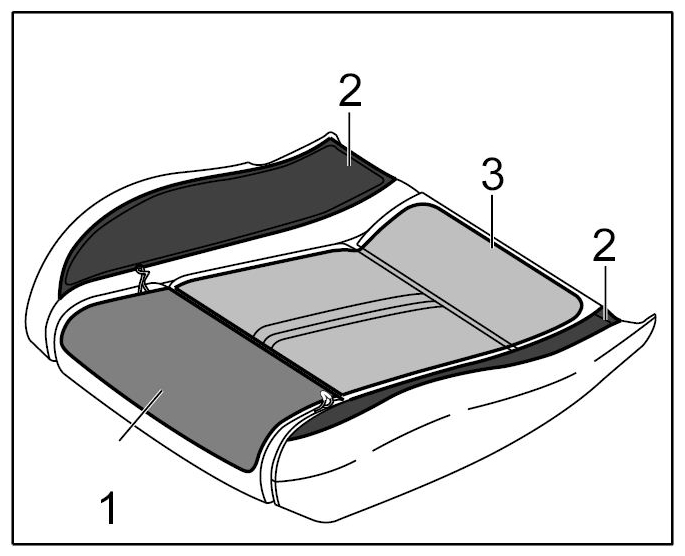

Fig 2: Overview Of Heating Element For Front Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the side bolster heating elements -2- starting from the rear -Arrows A- .

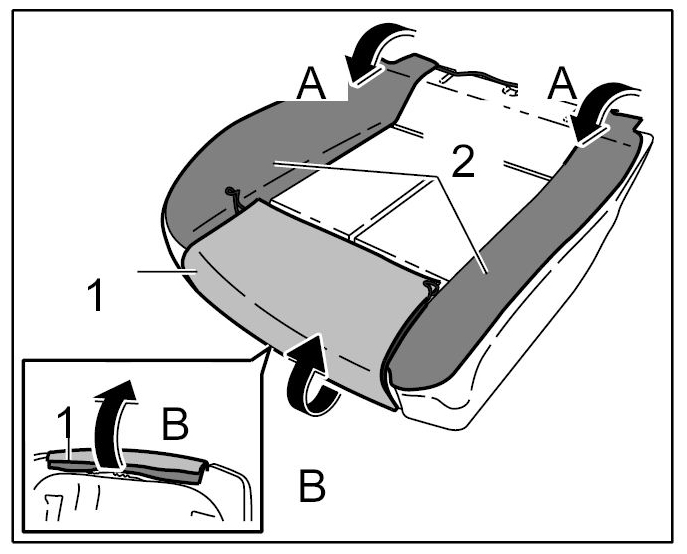

Fig 3: Removing Heating Elements For Side Bolsters And Lower Leg Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the lower leg support heating element -1- starting from below -Arrows B- .

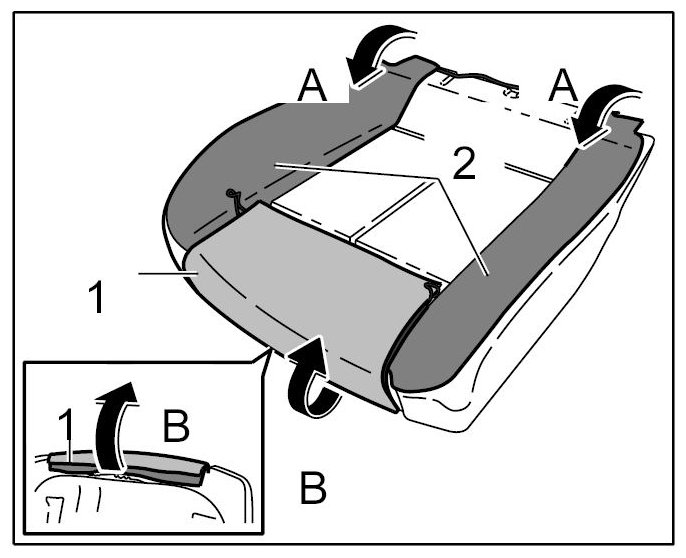

Fig 4: Removing Heating Elements For Side Bolsters And Lower Leg Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
