Removing Control Unit For Seat Heating

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

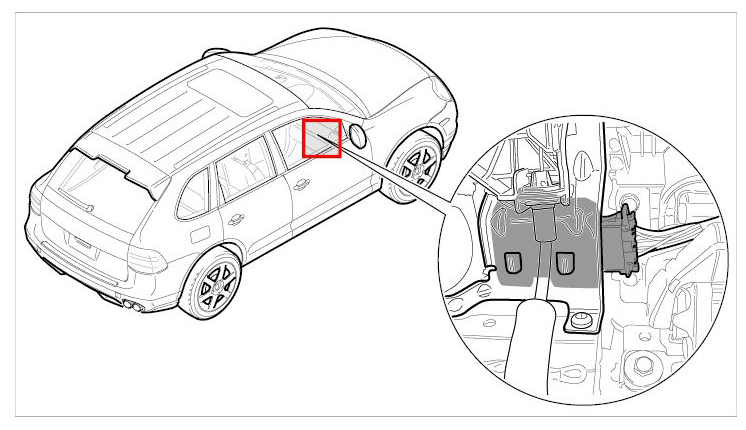

Fig 1: Identifying Installation Position Of Control Unit For Seat Heating

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The control unit for seat heating is located on the left next to the passenger's airbag above the glove box.

Switch off ignition and remove ignition key.
Release both retaining clips -arrows A- and remove control unit for seat heating from the holder -arrow B- .

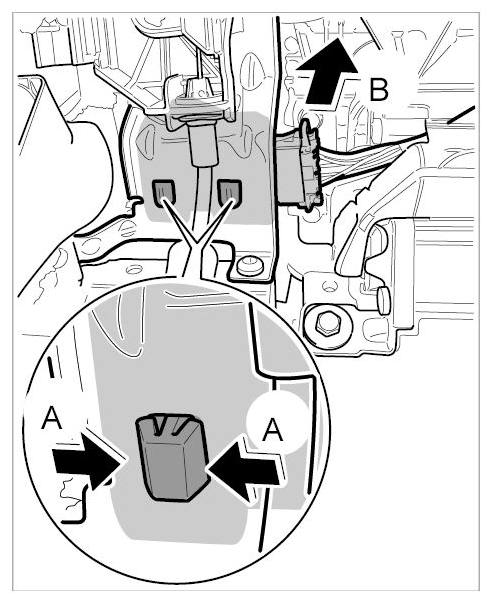

Fig 2: Loosening Control Unit For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector -arrows A- and pull it off the control unit for seat heating -arrow B- .

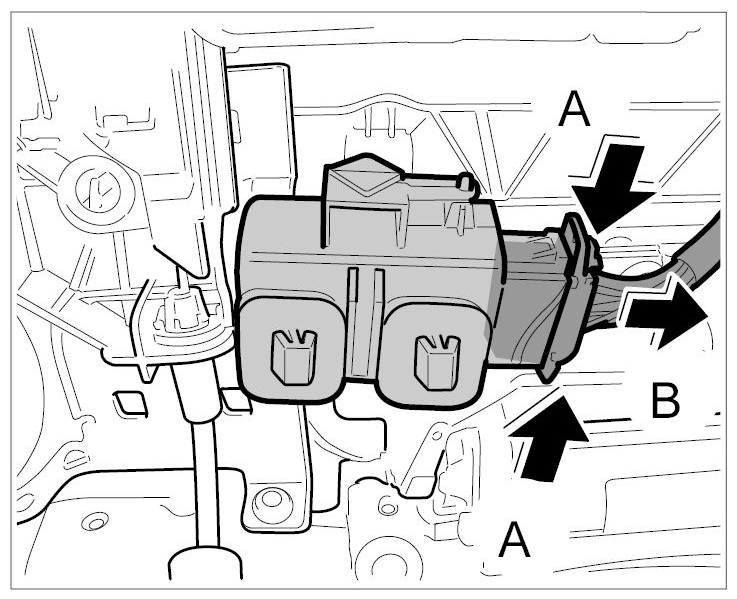

Fig 3: Pulling Connector Off Control Unit For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
