Installing Control Unit For Seat Heating

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

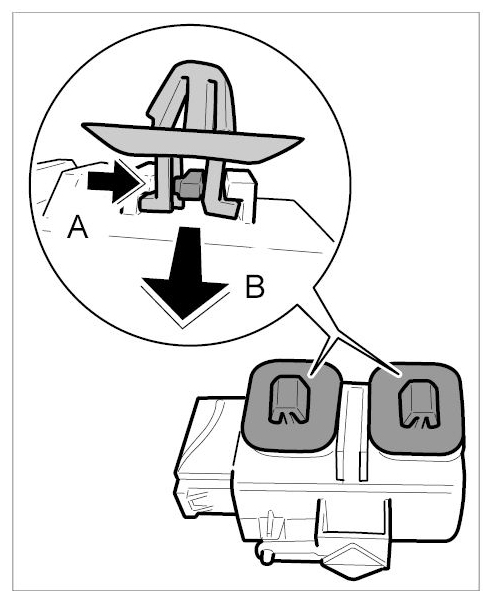

Check retaining clips and replace them if necessary.
1. 1.1. Release damaged retaining clip -arrow A- and remove from the control unit for seat heating -arrow B- .
2. 1.2. Slide new retaining clip onto the control unit for seat heating until the retaining clip engages securely.

  Fig 1: Checking Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

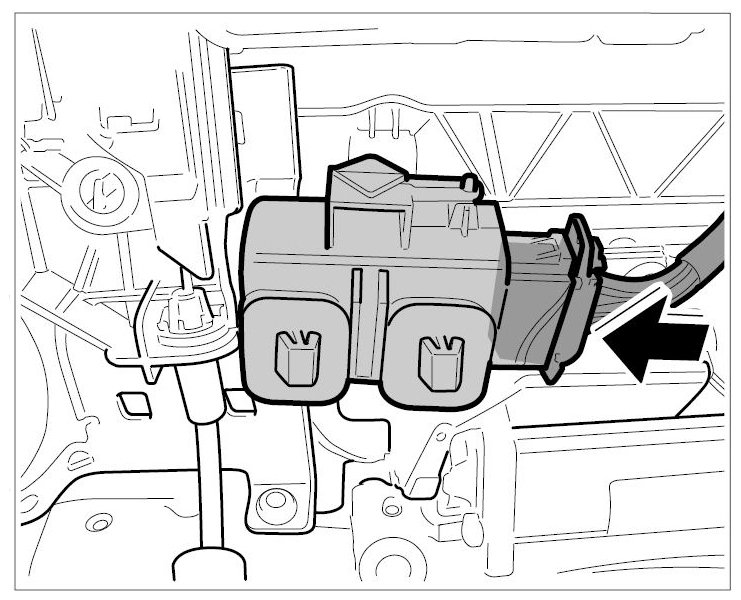

Plug connector onto the control unit for seat heating -arrow- until the connector engages securely.

Fig 2: Plugging Connector Onto Control Unit For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

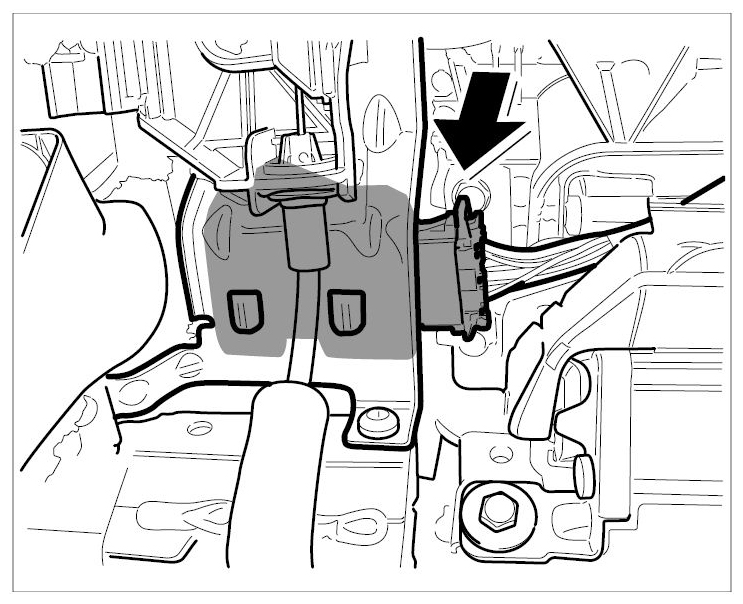

Place control unit for seat heating in installation position and press onto the holder -arrow- until the two retaining clips engage securely.

Fig 3: Securing Control Unit For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
