Removing Relay For Seat Heating

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

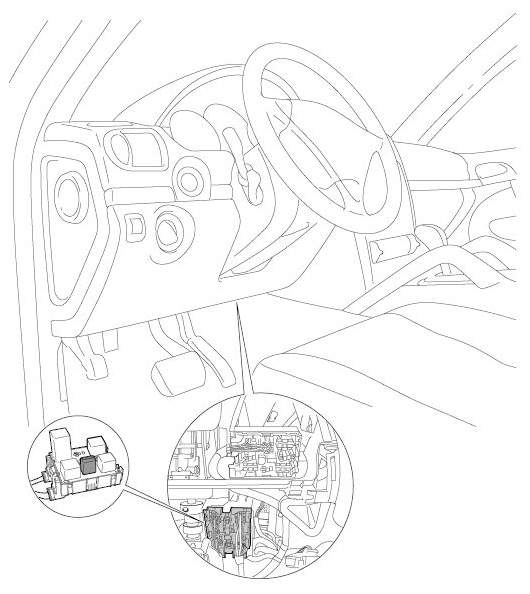

Fig 1: Overview Of Relay For Seat Heating

G09413935

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

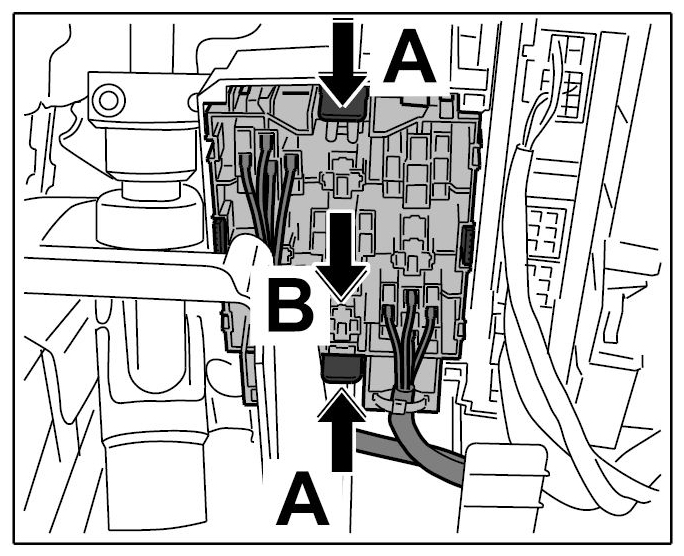

Release the relay carrier -Arrows A- and pull it downward -Arrow B- .

Fig 2: Removing Relay Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

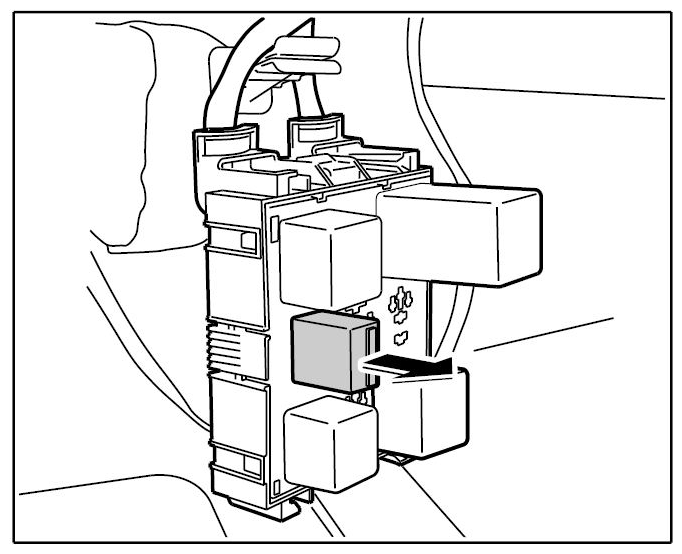

Pull the relay out of the relay carrier -arrow- .

Fig 3: Removing Relay
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
