Removing Switch For Seat Heating

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

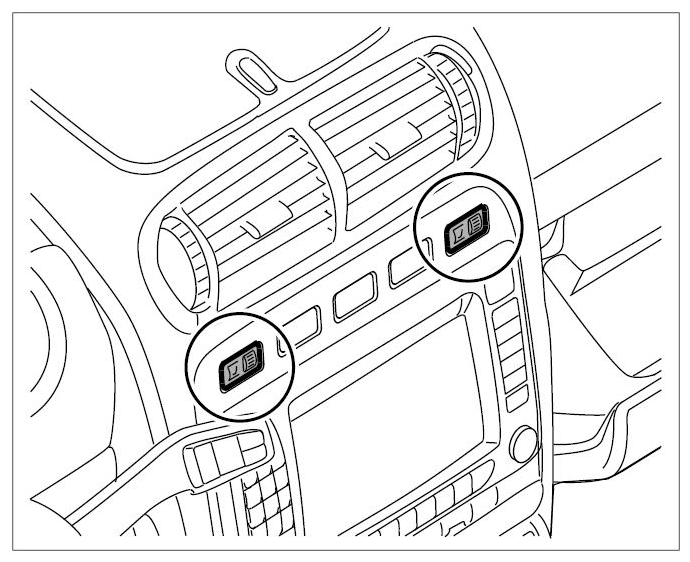

Fig 1: Overview Of Seat-Heating Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Reach into the opening for the radio unit or display and operator control unit, press the two securing clips -Arrows 1- together and remove the switch -Arrow 2- towards the front.

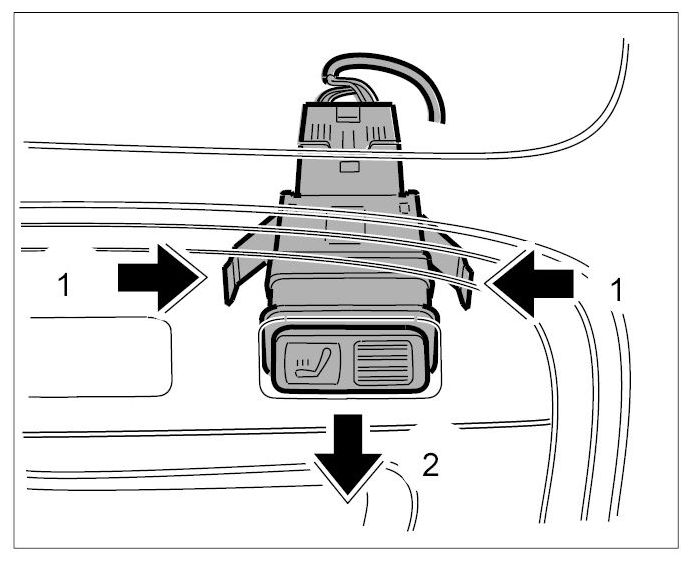

Fig 2: Removing Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press latch on connector and pull off.

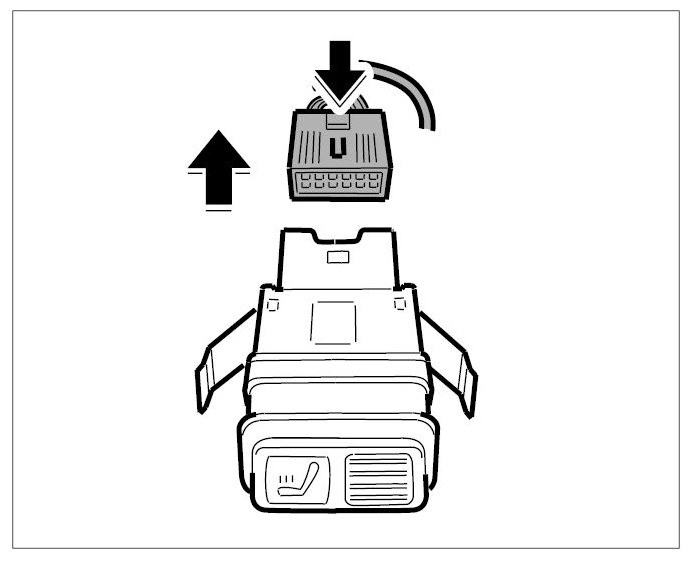

Fig 3: Pulling Off Seat Heating Switch Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
