Installing Switch For Seat Heating

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

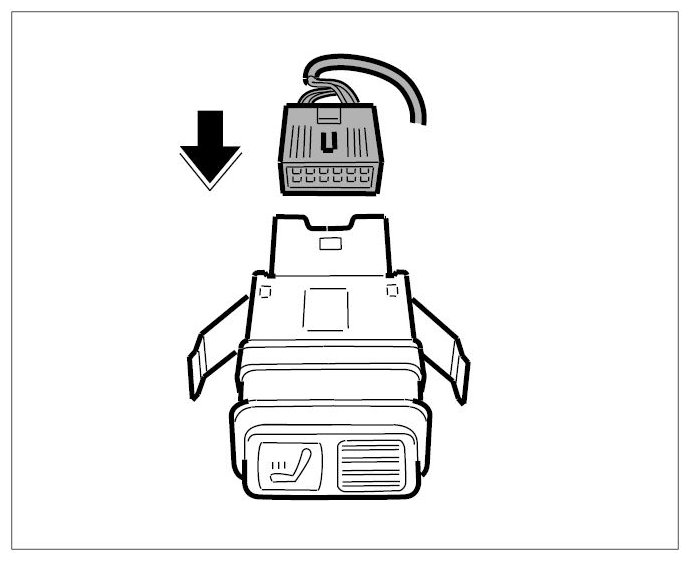

Press in the connector until it is felt to engage.

Fig 1: Plugging Seat Heating Switch Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Ensure that the switch is fitted securely.

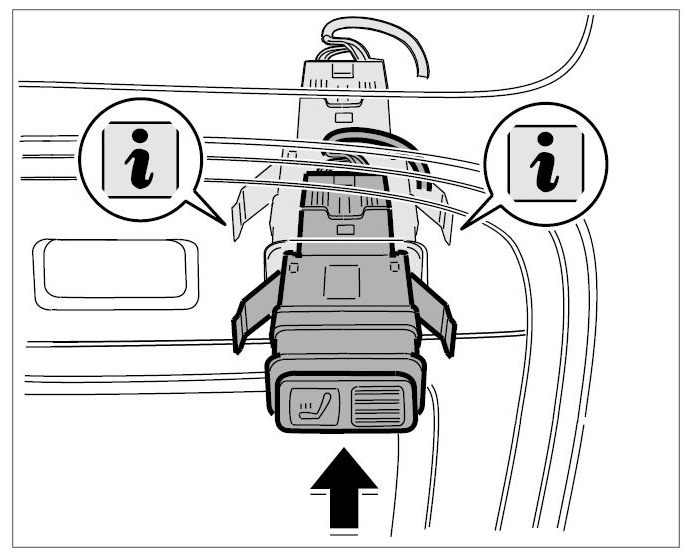

Push switch into the mounting -arrow- until the holders disengage.

Fig 2: Installing Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
