Removing Console For Telephone

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

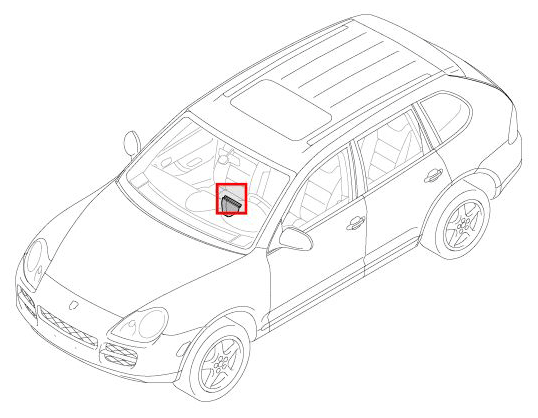

Fig 1: Overview Of Telephone Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

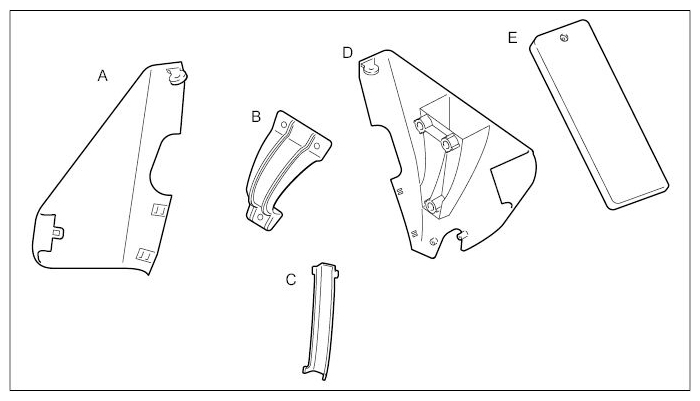

Inner part
Clamp
Cable duct
Outer part
Upper part

Fig 2: One-Sided View Of Installation Kit For Mobile Phone Console A-E

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

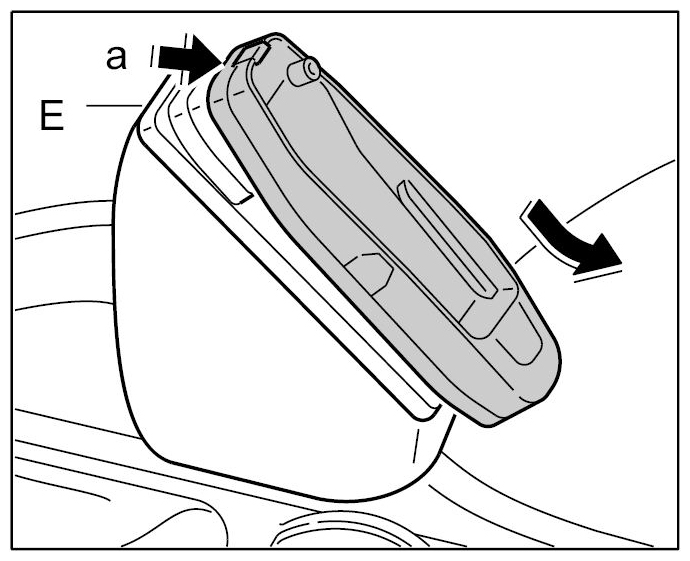

Release interface box -Arrow a- and pull it down and off.

Fig 3: Releasing And Removing Interface Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screws for the interface box holder from the upper part -E- .

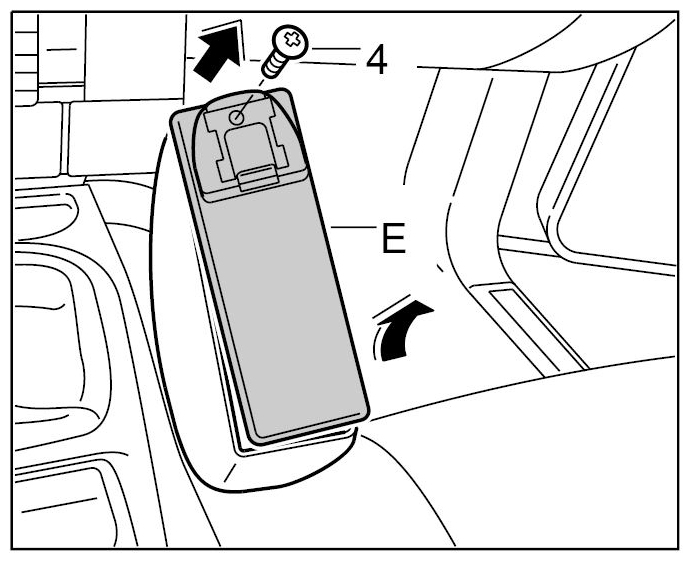

Unscrew fastening screw -4- from upper part -E- , raise upper part and leave it hanging forwards.

Fig 4: Unscrewing Fastening Screw And Removing Upper Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

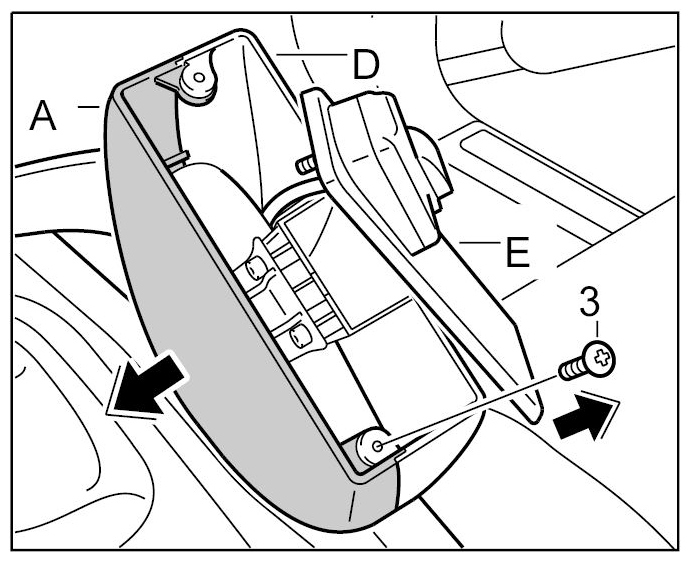

Unscrew fastening screw -3- from inner part-outer part -A, D- and pull side panel -A- to the left and leave it hanging out.

Fig 5: Unscrewing Fastening Screw And Removing Inner Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

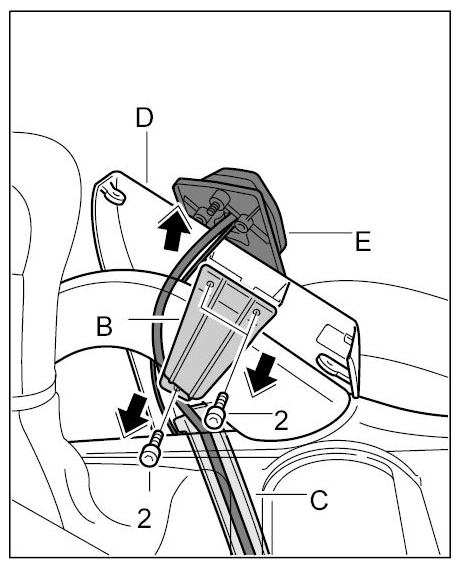

Undo the three fastening screws -2- from the clamp -B- and remove clamp.

Fig 6: Unscrewing Fastening Screw And Removing Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the outer part -D- together with cable duct -C- from the holder on the centre console.

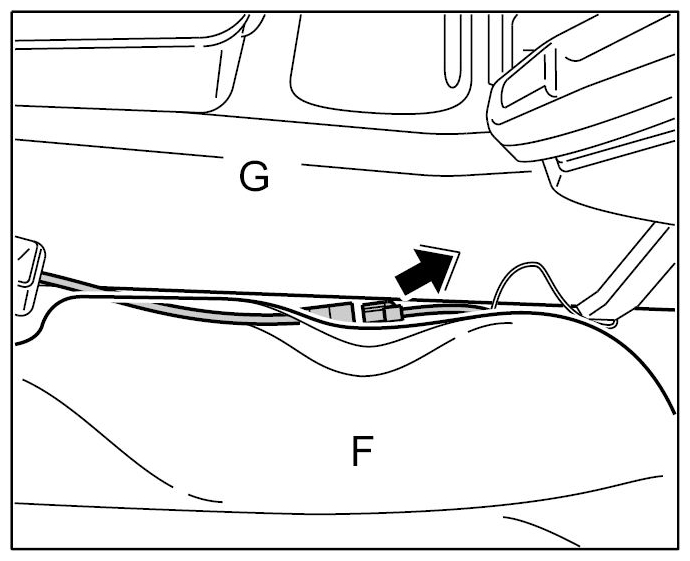

Pull the VDA interface and antenna leads under the centre console -G- and disconnect them, then remove the upper part with cradle.
1. -G- - Centre console
2. -F- - Seat
Fig 7: Disconnecting VDA Interface And Antenna Leads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
