Installing Console For Telephone

Information

Lay the leads so that they are not pinched.

1. Fit the upper part -E-  loosely to the outer part -D-  and lay the VDA interface lead and antenna lead in the outer part -D-  .

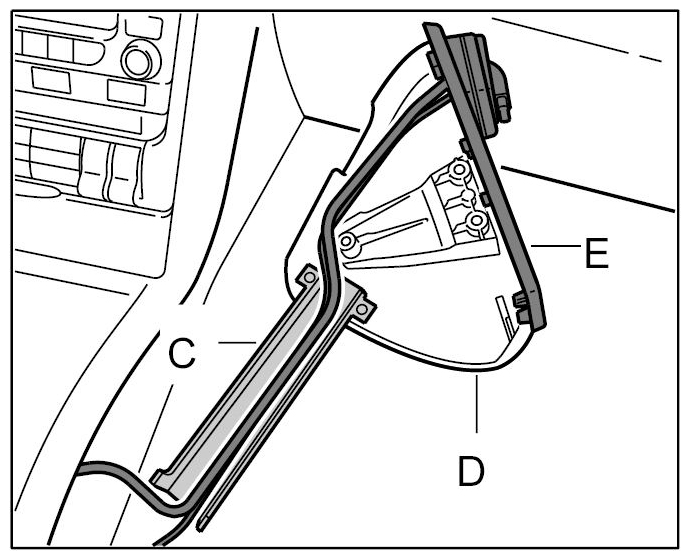

   Fig 1: Laying VDA Interface And Antenna Leads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Engage the cable duct -C-  in the outer part -D-  .
3. Lift the assembled components -C, D, E-  onto the centre console holder, engage the cable duct at the lower edge of the centre console, and push the components -C, D, E-  onto the centre console holder.

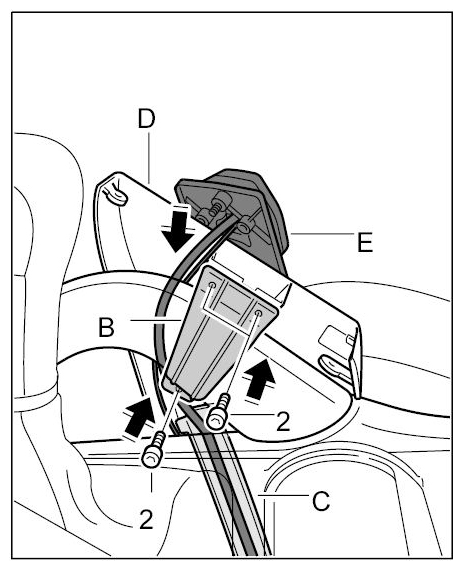

   Fig 2: Pushing Components Onto Centre Console Holder And Screwing Down

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Place the clamp on the outer part and secure with the three fastening screws -2-  . → Tightening torque: 1.5 ftlb.
5. Engage the inner part -A-  with the outer part -D-  , then clip into the outer part and secure with the fastening screw -3-  . → Tightening torque: 0.5 ftlb.

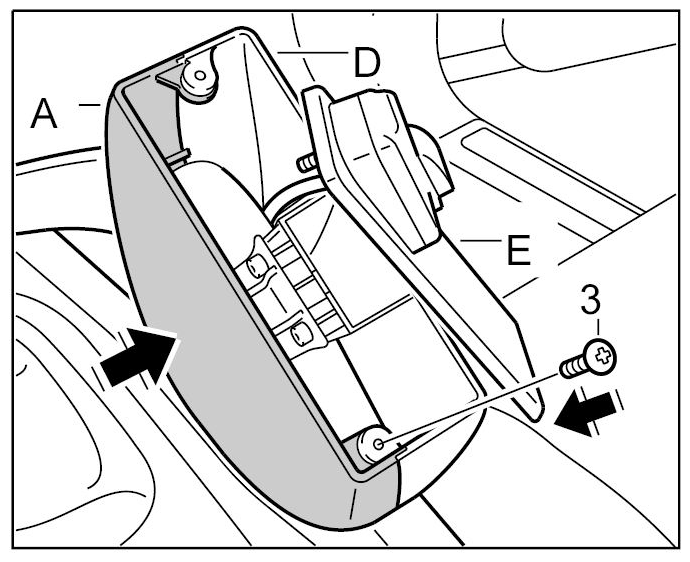

   Fig 3: Fastening Inner Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Engage the upper part -E-  in das inner-outer part -A, D-  and secure with the fastening screw -4-  . → Tightening torque: 0.5 ftlb.

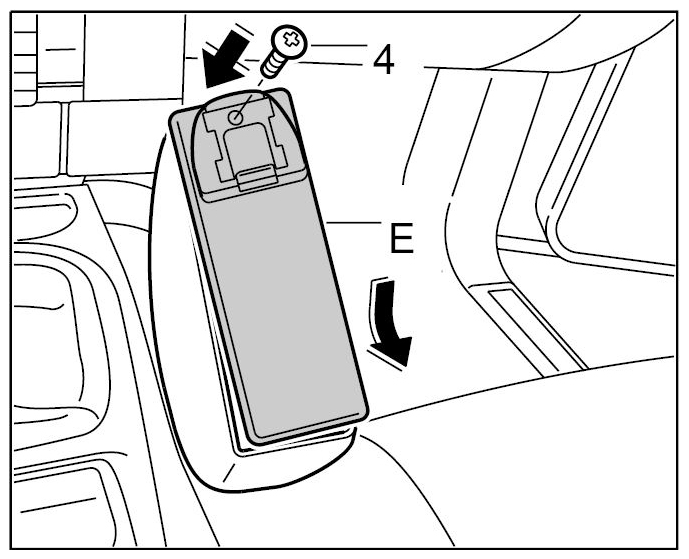

   Fig 4: Fastening Upper Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Drill hole in cover and insert fastening screw -1-  for the interface box holder in the upper part -E-  . → Tightening torque: 0.5 ftlb.

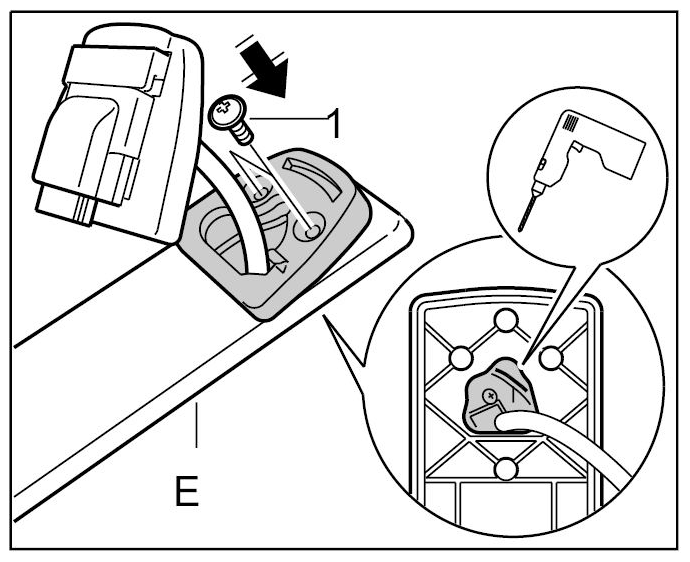

   Fig 5: Drilling Cover And Securing Holder For Interface Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Push the interface box onto the cradle from below until the interface box engages.

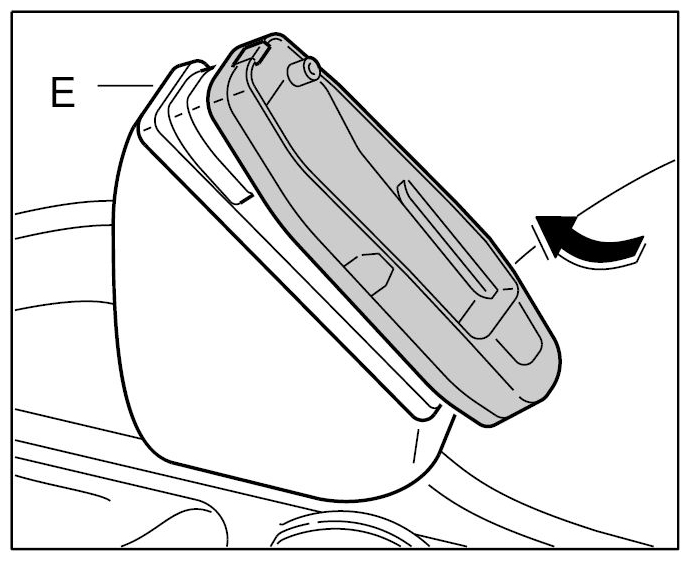

   Fig 6: Pushing Interface Box From Below

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Connect wiring for the VDA interface and antenna leads
   1. -G-  - Centre console
   2. -F-  - Seat

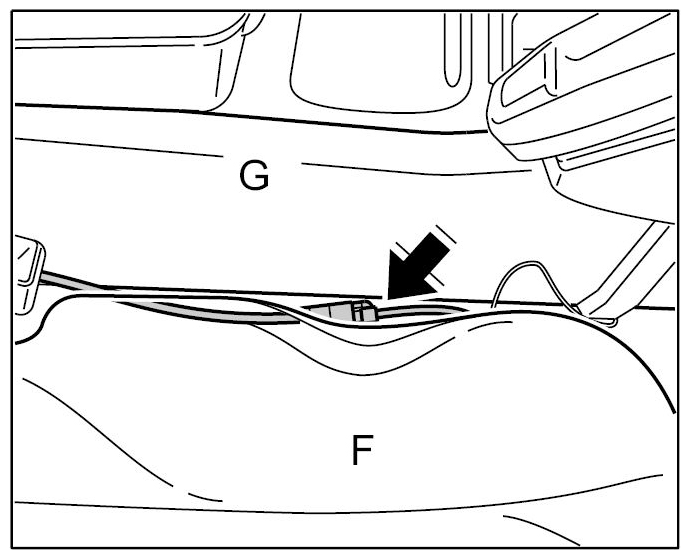

   Fig 7: Connecting VDA Interface And Antenna Leads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Raise the centre console and push the wiring under it.
11. Move the seat to the position required by the customer.
