Installing Control Unit For Antenna Amplifier

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position antenna amplifier in installation position -Arrow A-  and secure with the fastening screw -Arrow 3-  .

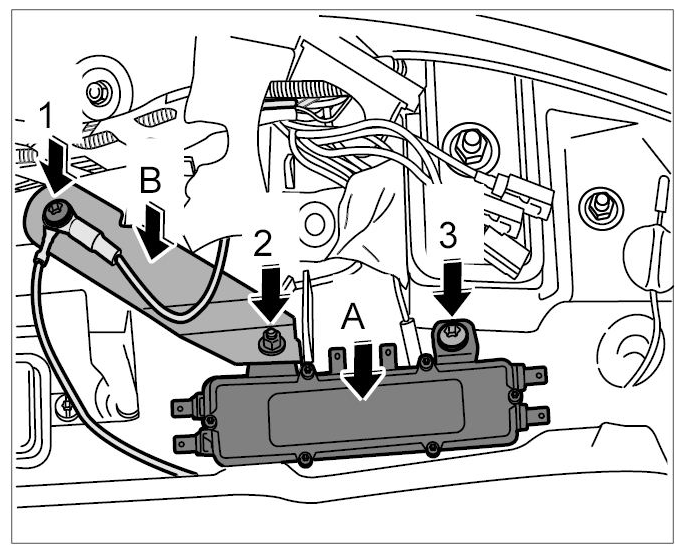

    Fig 1: Securing Antenna Amplifier Control Unit
    G09415143Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position ground strap in installation position -Arrow B-  and screw on the fastening nut -Arrow 2-  , but do not tighten.
  3. Secure ground lead and ground strap with fastening screw -Arrow 1-  , then tighten fastening nut -Arrow 2-  .
  4. Push antenna leads onto the antenna amplifier -Arrow A-  until the locking tabs -Arrows B-  are felt to engage.

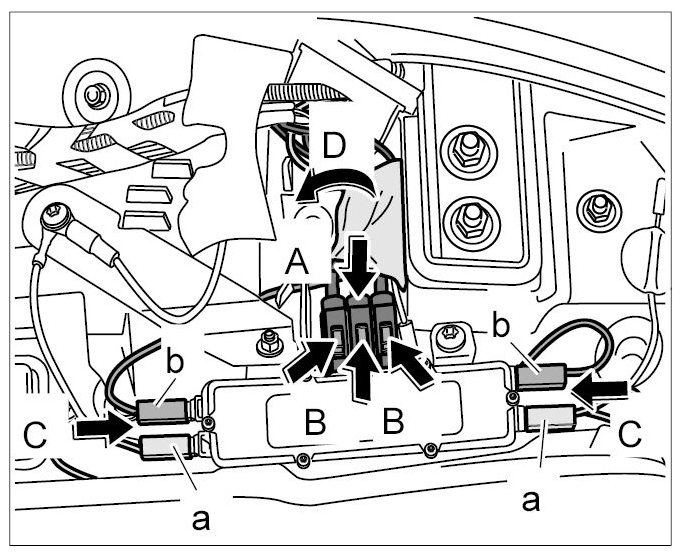

    Fig 2: Connecting Antenna Plugs
    G09415144Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Push on the plugs for the antenna leads -a-  and the power supply -b- -Arrows C-  .
  6. Secure leads with adhesive tape -Arrow D-  .
