Removing Voice Module For PCM

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip cover on the rear of the PCM  at the top, pivot cover down and disengage it.

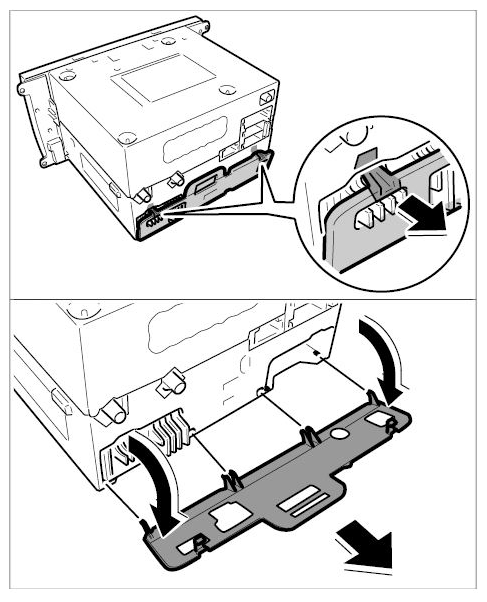

    Fig 1: Removing Cover
    G09415131Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove voice module from the PCM.

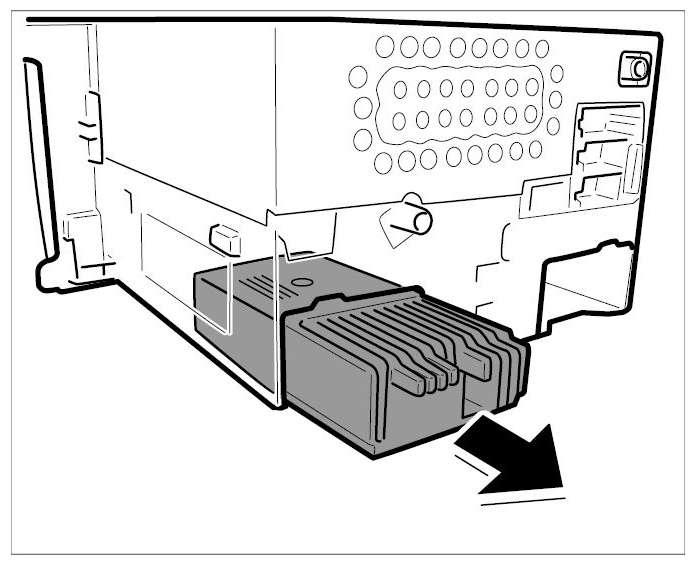

    Fig 2: Removing Voice Module
    G09415132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
