Installing Voice Module For PCM

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. If you are installing a new voice module, detach the cap for the electric plug connection and carefully slide the voice module as far as it will go into the PCM.
    Fig 1: Inserting Voice Module Into PCM
    G09415133Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage cap on the PCM, fold it up and clip it in on the PCM  housing.

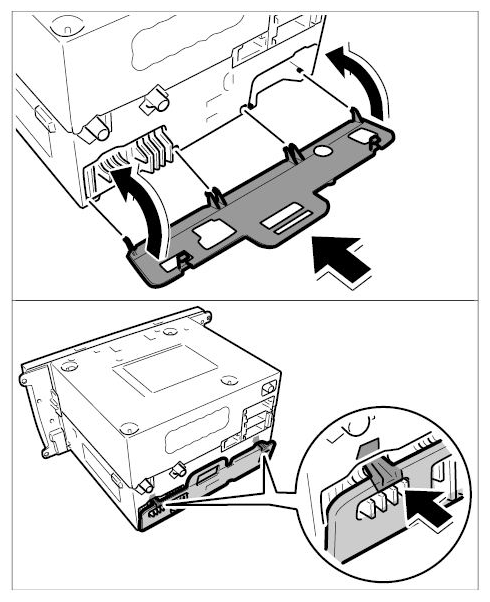

    Fig 2: Clipping In Cover On PCM
    G09415134Courtesy of PORSCHE CARS NORTH AMERICA, INC.
