Removing Outside Temperature Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

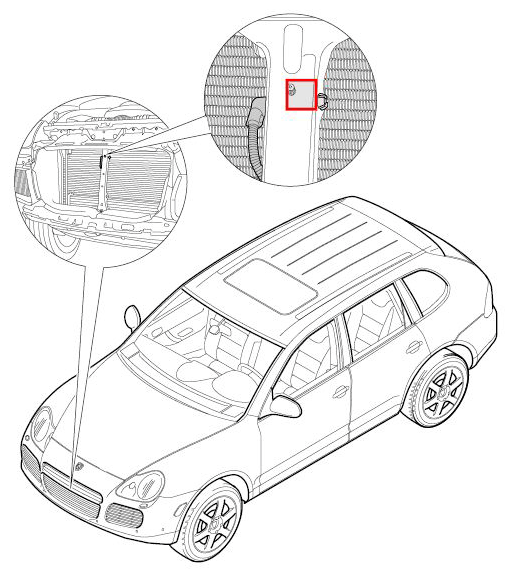

Fig 1: Overview Of External Temperature Sensor

G09415117

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

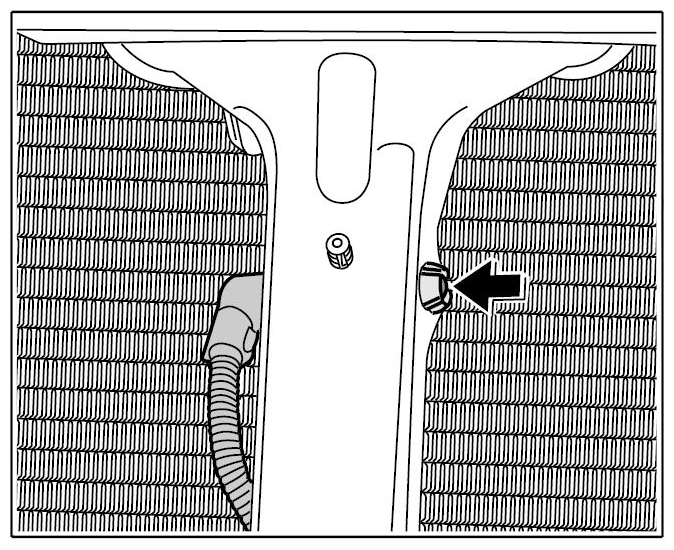

Press temperature sensor out of the holder.

Fig 2: Pressing Temperature Sensor Out Of Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

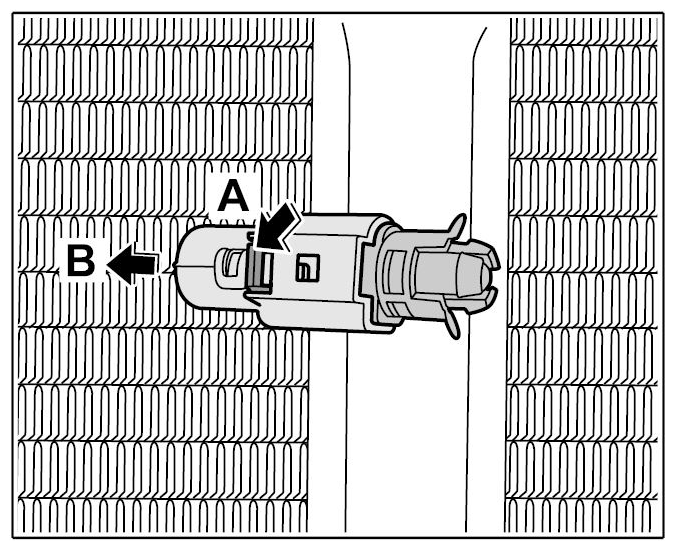

Release plug -Arrow A- and disconnect it from the temperature sensor -Arrow B- .

Fig 3: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
