Installing Outside Temperature Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the temperature sensor connector -Arrow A-  until the locking tab -B-  is felt to engage.

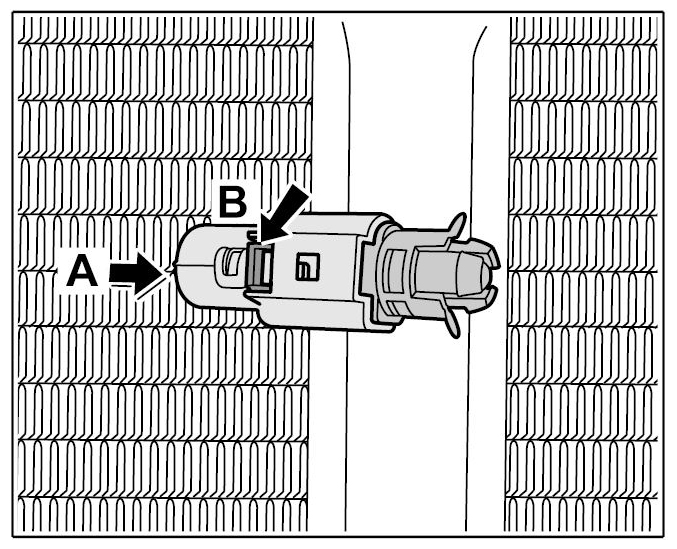

    Fig 1: Plugging In Connector
    G09415120Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push in temperature sensor -A-  until you feel the locking tabs -Arrows B-  engage.
    Fig 2: Pushing Temperature Sensor Into Place In Holder
    G09415121Courtesy of PORSCHE CARS NORTH AMERICA, INC.
