Removing CD Changer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

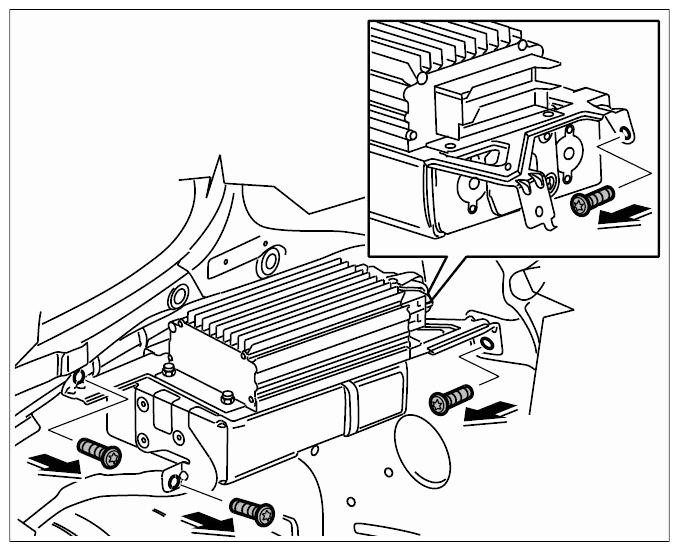

Unscrew the four fastening screws and pull out the carrier with CD changer & amplifier.

Fig 1: Unscrewing Carrier Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

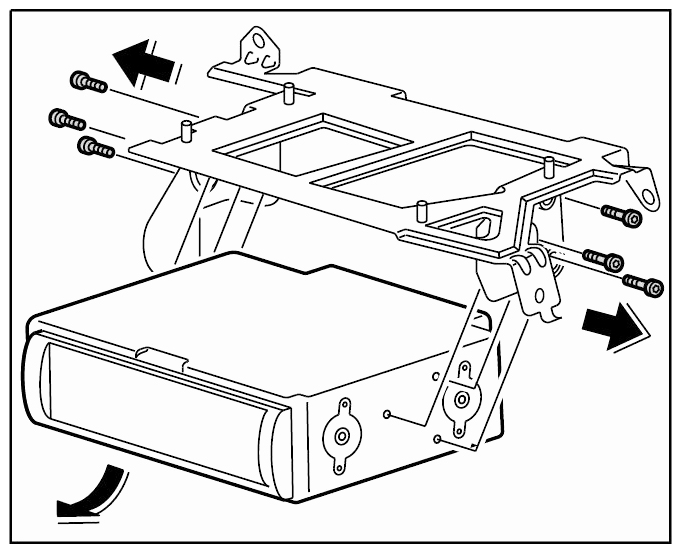

Undo the six fastening screws, lift out the CD changer and pull forwards.

Fig 2: Unscrewing Fastening Screws For CD Changer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

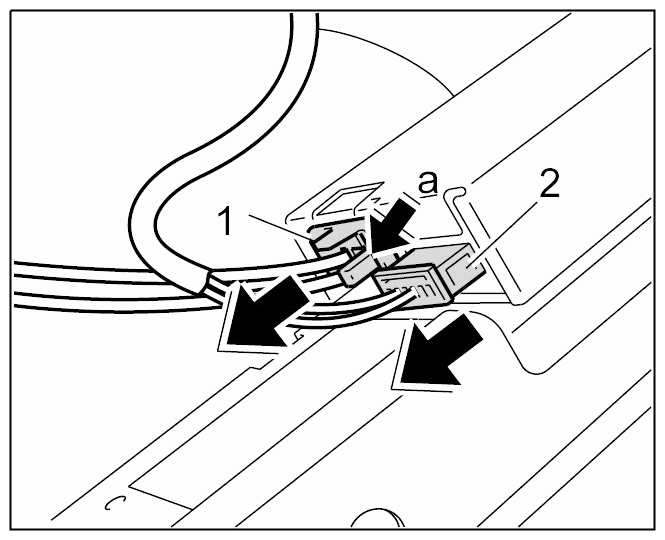

Open latch on optical waveguide connector -arrow 1- (-arrow a-) and disconnect connector.

Fig 3: Disconnecting Optical Waveguide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug connector -arrow 2- .
