Installing Microphone For Telephone

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

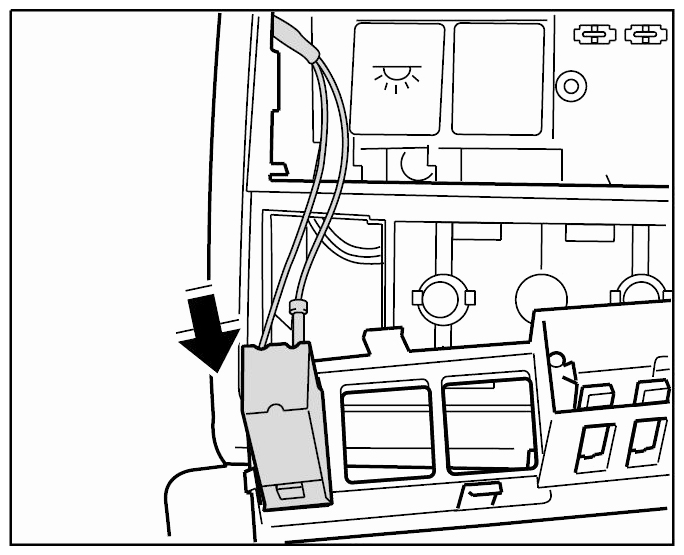

Install the microphone in the switch panel and press down until the microphone engages.

Fig 1: Installing Microphone For Telephone
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

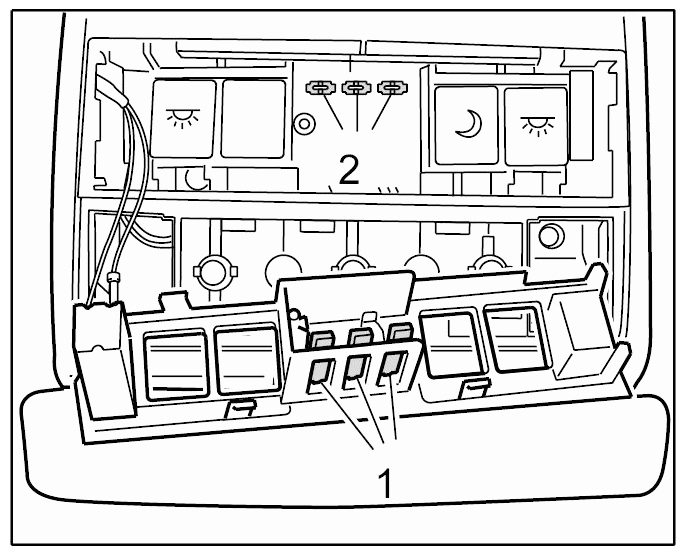

Insert the cover molding in the roof console and press on it carefully, making sure that the three pins -1- engage in the mounting -2- .

Fig 2: Inserting Cover Moulding Into Roof Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Observe the line routing, danger of pinching!

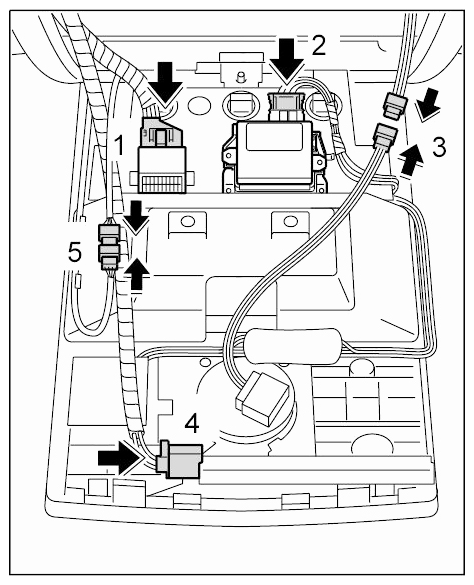

Engage the roof console on the roof liner and plug in all electrical plug connections -Pfeile 1 bis 5- until they are felt to engage.

Fig 3: Connecting Electric Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

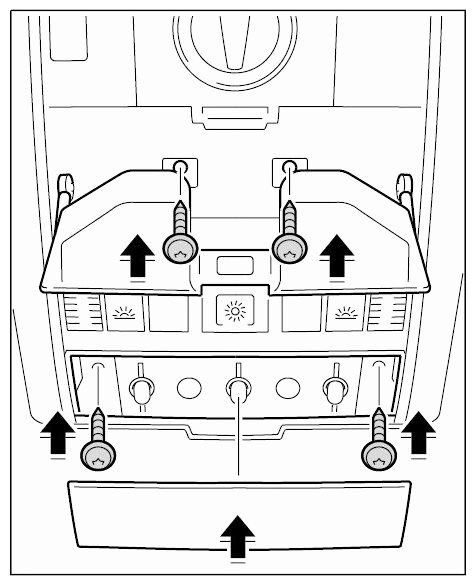

Fold up roof console, clip it in the roof liner and screw down using the four fastening screws. Close the glasses compartment and clip in the light unit cover.

Fig 4: Screwing Down Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition and check the proper function of the telephone microphone.
