Installing Handset

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Push the plug connection together until the locking tab -arrow- is felt to engage.

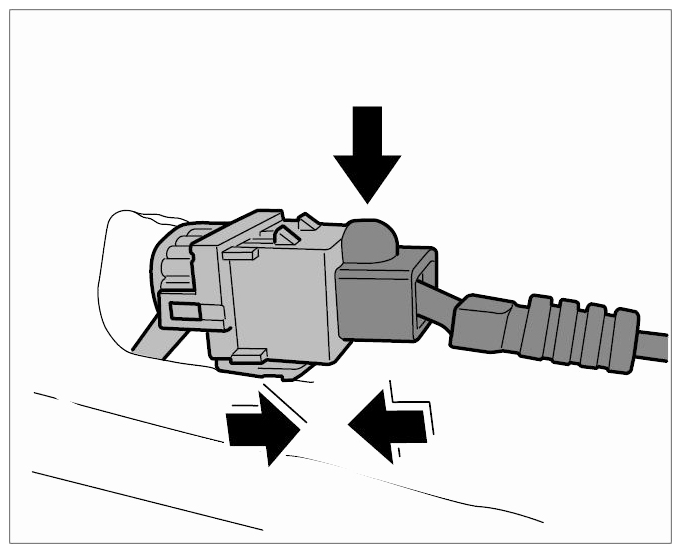

Fig 1: Installing Handset
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit plug connection cover on telephone handset cable.

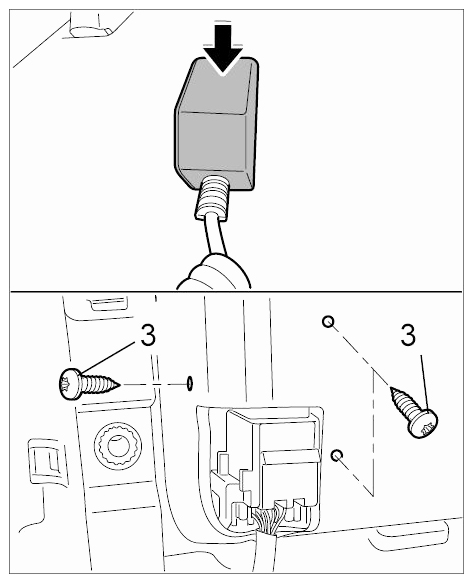

Fig 2: Fitting Plug Connection Cover On Telephone Handset Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position plug connection cover and screw in the three fastening screws -3- .
Insert wire harness without tension into the guide.

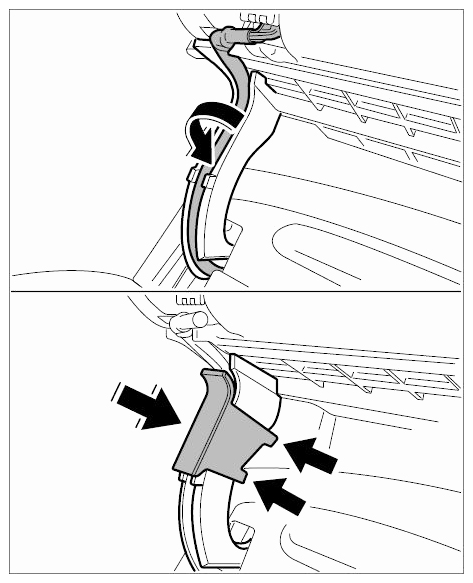

Fig 3: Inserting Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position wire harness cover and slide onto the guide until the locking tabs -arrows- are felt to engage on both sides.
Check fastening clips for damage and deformation, and replace if necessary.

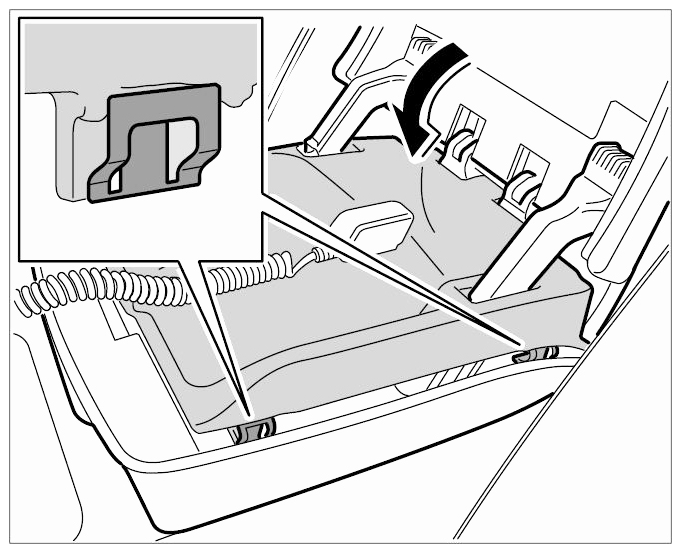

Fig 4: Positioning Wire Harness Cover And Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel telephone tray of the upper oddments tray to the front together with the cover.
Position telephone tray and clip in at the four fixing clips.
Position spacers and screw in the two fastening screws -2- .

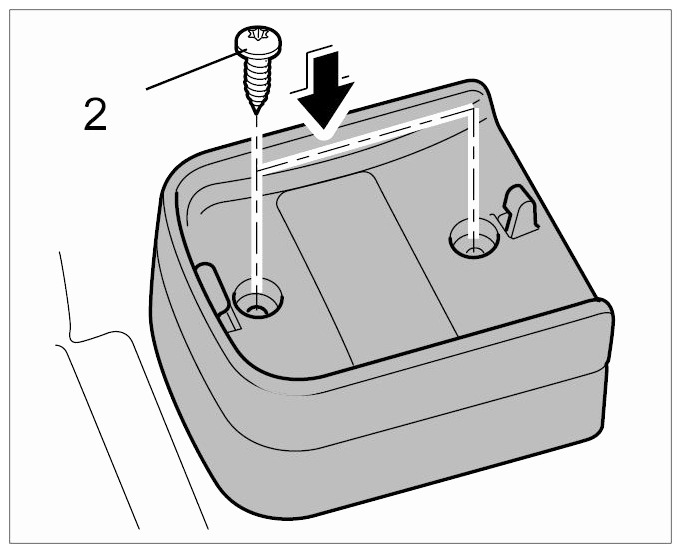

Fig 5: Positioning Telephone Tray, Clip And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert handset by means of the cut-out near the front into the retaining tab of the console and press down until it is felt to engage.

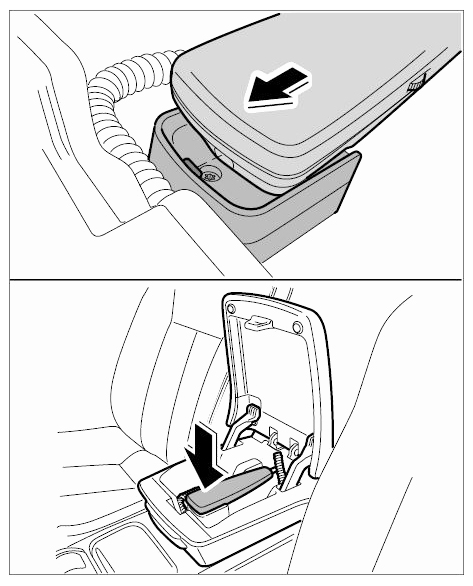

Fig 6: Inserting Handset
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close upper oddments tray in the armrest and open lower oddments tray in the armrest.
Tighten the four fastening screws -1- → Tightening torque: 1.5 ftlb..

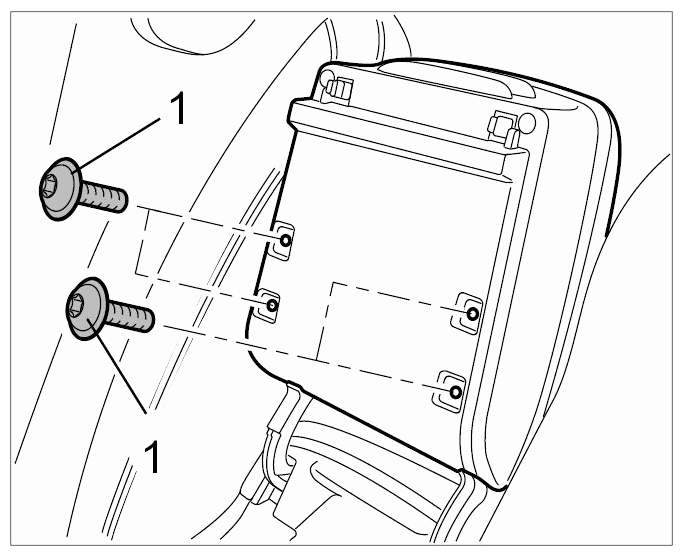

Fig 7: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close lower oddments tray.
