Removing Rear Display

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The warning display for the front area is located on the dashboard. The different monitoring areas (left and right) are each divided into 1 green, 4 yellow and 2 red LED segments.

Switch off ignition and remove ignition key.

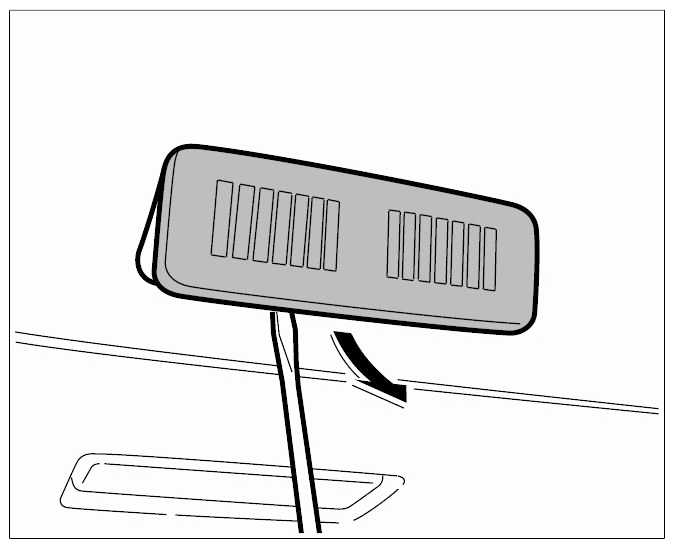

Carefully lift and unclip display field from headliner using a plastic spatula.

Fig 1: Unclipping Display Field
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

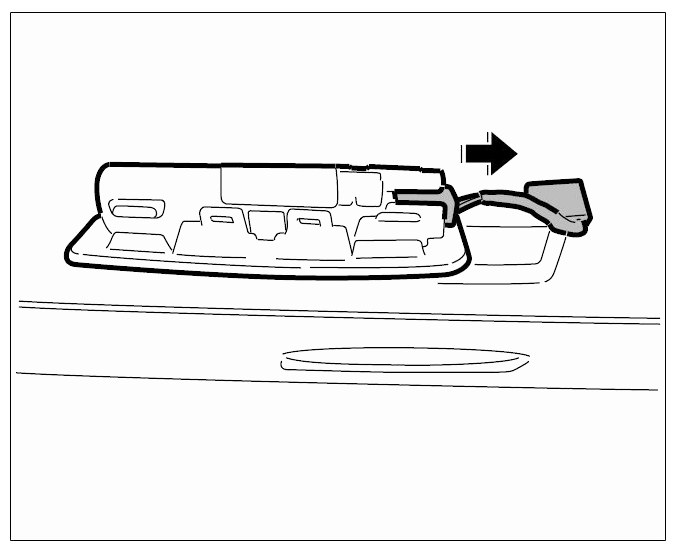

Disconnect electrical plug connection for display field.

Fig 2: Disconnecting Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
