Removing Front Display

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The warning display for the front area is located on the dashboard. The different monitoring areas (left and right) are each divided into 1 green, 4 yellow and 2 red LED segments.

Switch off ignition and remove ignition key.

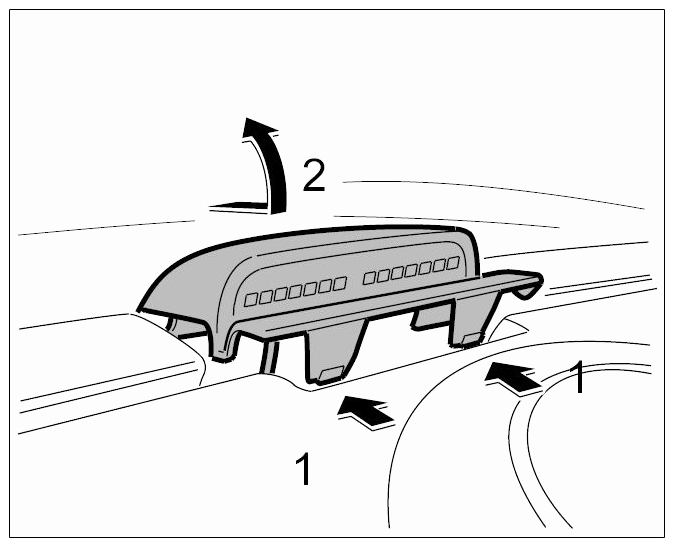

Lift cover on dashboard using plastic spatula -Arrow 2- and unclip -Arrows 1- .

Fig 1: Unclipping Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

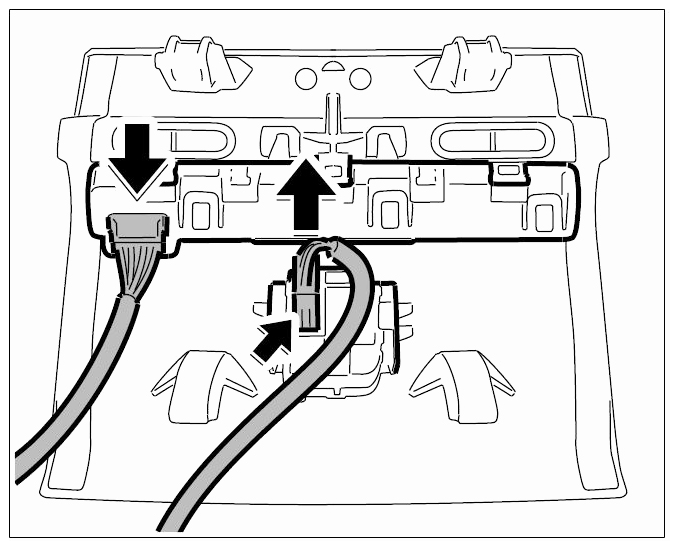

Disconnect plug connection for sun sensor and display field.

Fig 2: Disconnecting Electrical Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

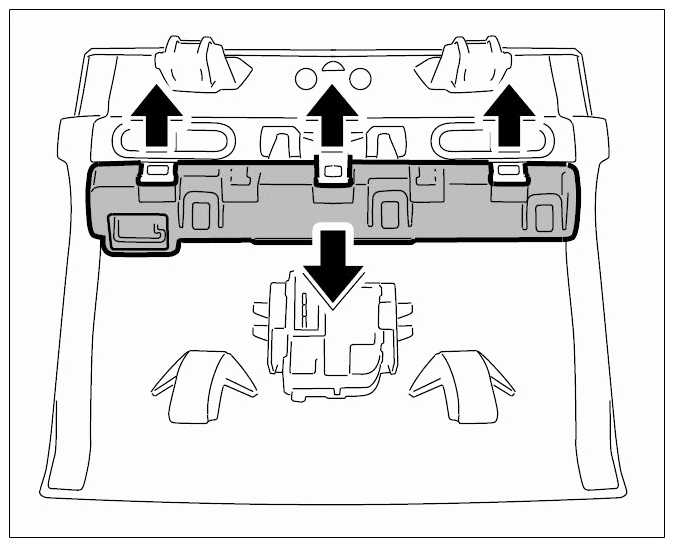

Lift the three cover retaining clips and remove display field.

Fig 3: Lifting Retaining Clips And Removing Display Field
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
