Installing Rear Display

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

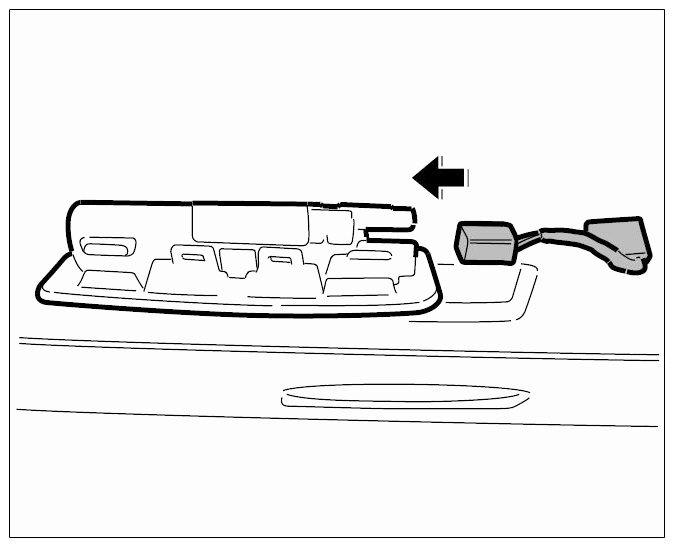

  1. Connect electrical plug connection for display field so that plug is felt to engage.
    Fig 1: Connecting Electrical Plug Connection
    G09415075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

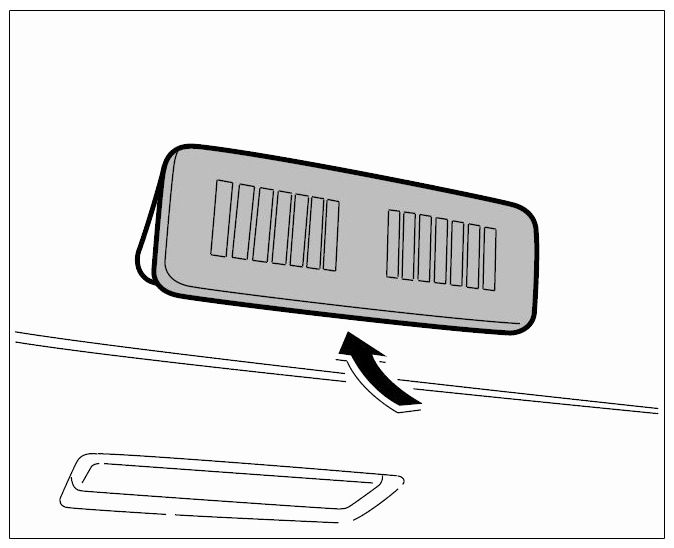

  2. Position display on headliner and clip in.
    Fig 2: Positioning Display On Headliner And Clipping In
    G09415076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
