Installing Front Display

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert display field into holder and fasten with the three retaining clips.

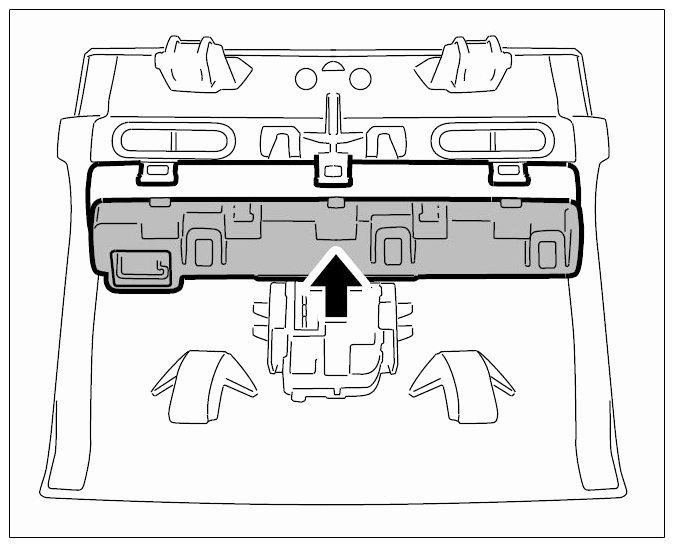

    Fig 1: Fastening Display Field
    G09415073Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect plug connections for sun sensor and display field so that plugs are felt to engage.

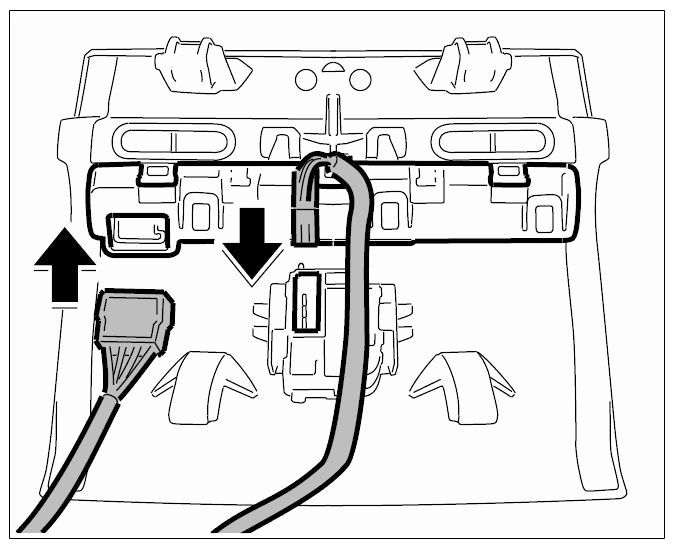

    Fig 2: Connecting Electrical Plug Connections
    G09415074Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position cover and clip into dashboard.
