Removing Loudspeaker Amplifier

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

The loudspeaker amplifier is located behind the right rear side-panel lining.

Information

If the amplifier is to be replaced, the coding must be read out using the PIWIS tester 9718 before removing the amplifier.

Release -arrow A- and remove -arrow B- connector from amplifier.

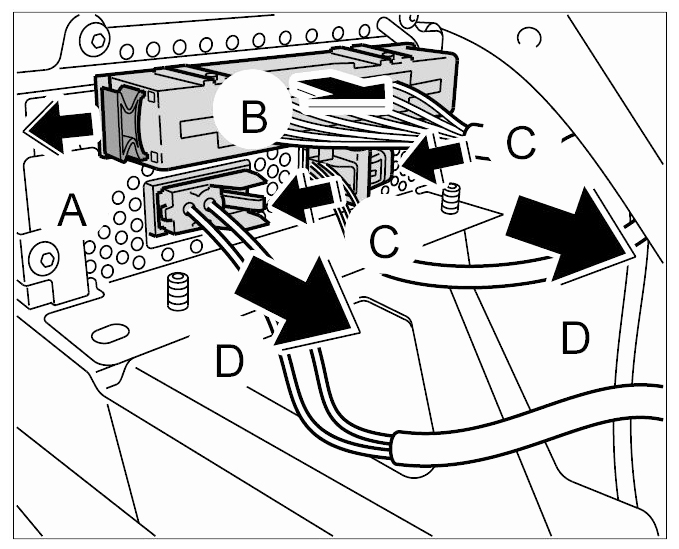

Fig 1: Removing Connector From Amplifier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release -arrow C- and remove -arrow D- connector for optical waveguide.
Unscrew and remove the four fastening nuts.

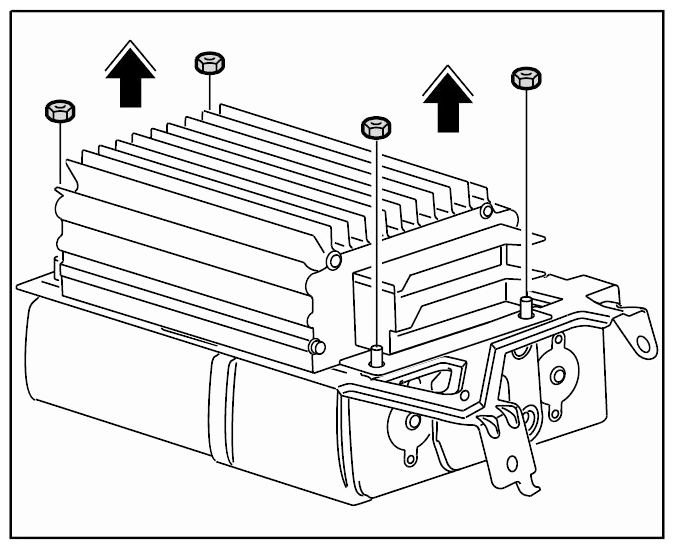

Fig 2: Unscrewing Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift amplifier up and out.
