Removing Reversing Camera

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Release wire harness.
1. 1.1. Disconnect tie-wrap on wire harness -Pos. A- .
2. 1.2. Disconnect Velcro connection on wire harness -Pfeil B- .

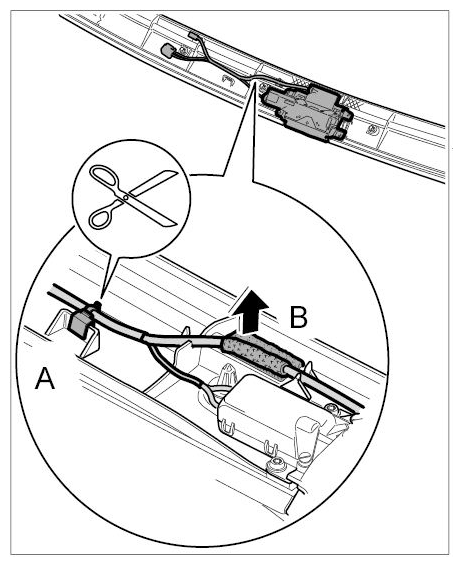

  Fig 1: Loosening Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -2- for reversing camera -1- .

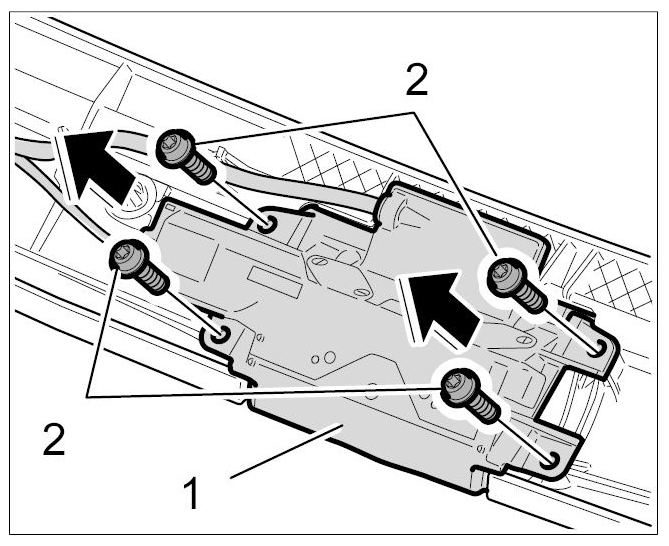

Fig 2: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove camera -1- .

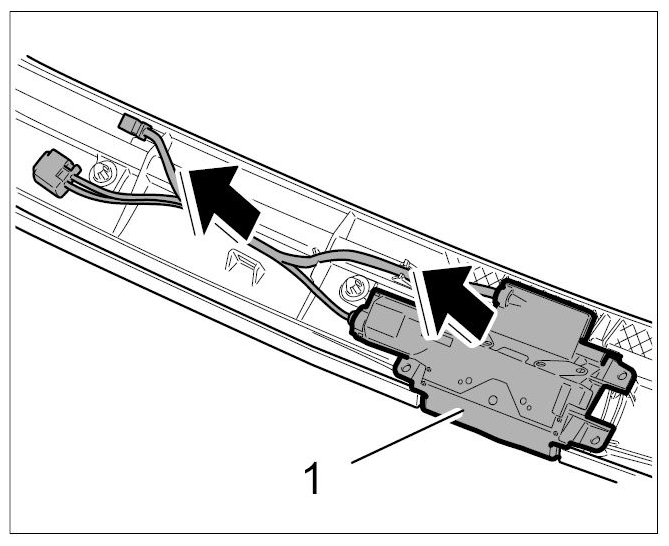

Fig 3: Removing Camera
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove trim.
1. 4.1. Unscrew fastening screws -3, 4- .
2. 4.2. Open trim slightly -Pfeile C- .
3. 4.3. Lift trim up and off -Pfeile D- .

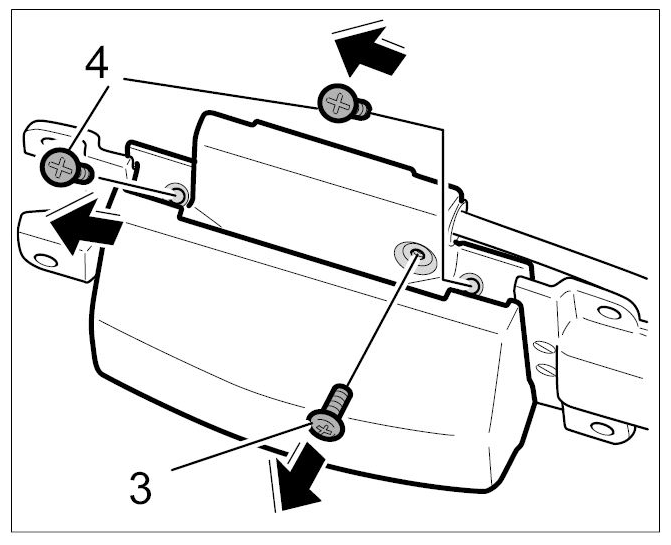

  Fig 4: Unscrewing Fastening Screws For Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

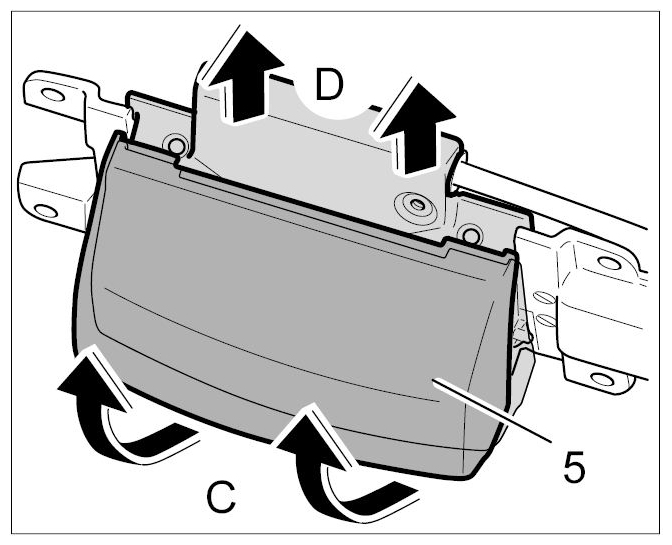

  Fig 5: Removing Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
