Installing Reversing Camera

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install trim.
1. 1.1. Open trim slightly against the spring tensioning force -Pfeil E- .
2. 1.2. Insert trim on housing -Pfeile G- from above and slide it into position by pressing downwards -Pfeile F- . As shown in the cross section, the cover must be hooked securely onto the camera and must not rattle.
3. 1.3. Screw in fastening screws -4- and tighten to the specified tightening torque. → Tightening torque: 0.5 Nm (0.5 ftlb.)
4. 1.4. Screw in fastening screw -3- and tighten to the specified tightening torque. → Tightening torque: 0.5 Nm (0.5 ftlb.)

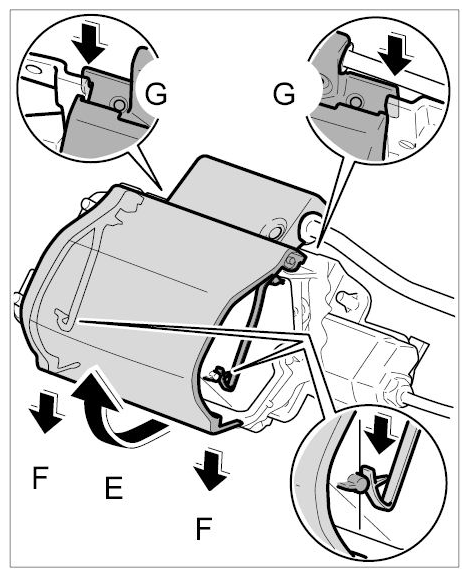

  Fig 1: Fitting Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

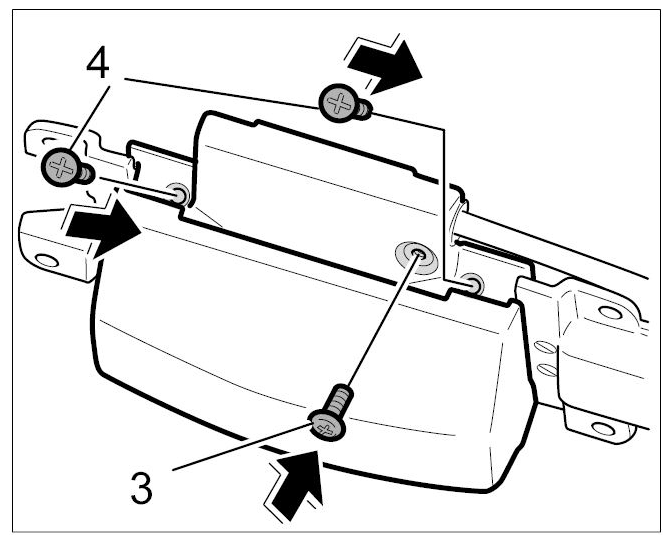

  Fig 2: Screwing In Fastening Screws For Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -2- and tighten so that the camera -1- can still be moved.

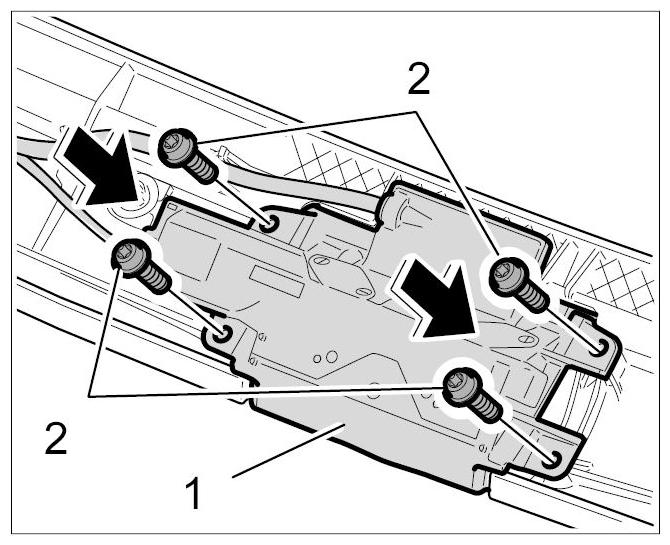

Fig 3: Screwing In Fastening Screws For Camera
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust seam joining line.
1. 3.1. Adjust seam joining line at the side -I-. → Gap dimension: 3 mm
2. 3.2. Adjust seam joining line to moulding -H-. → Gap dimension: 2 mm+/-0.8 mm

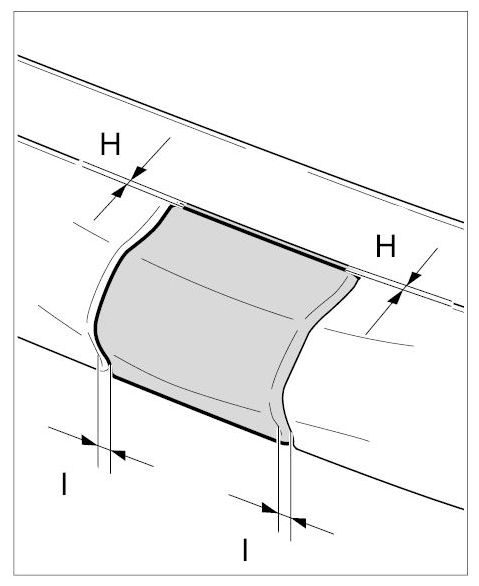

  Fig 4: Adjusting Seam Joining Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -2- to the specified tightening torque. → Tightening torque: 1.2 Nm (1.0 ftlb.)
Route and secure wire harness.
1. 5.1. Position wire harness on Velcro fastening and press it on -Pfeil- .
2. 5.2. Secure wire harness on retaining clip using a tie-wrap.

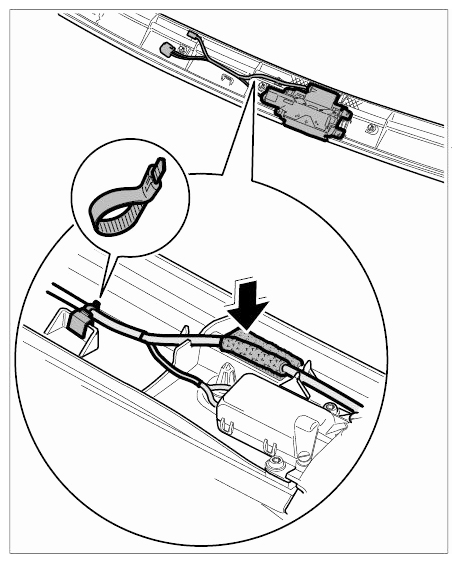

  Fig 5: Securing Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
