Removing Subwoofer: Notes

Information

• The subwoofer is located in the spare wheel well.
• The subwoofer is installed together with the second battery instead of the spare wheel.
• The subwoofer is only used in conjunction with the Bose sound system.

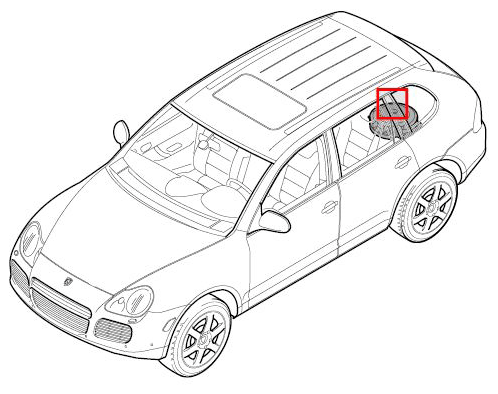

Fig 1: Overview Of Subwoofer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off all loads and remove ignition key.

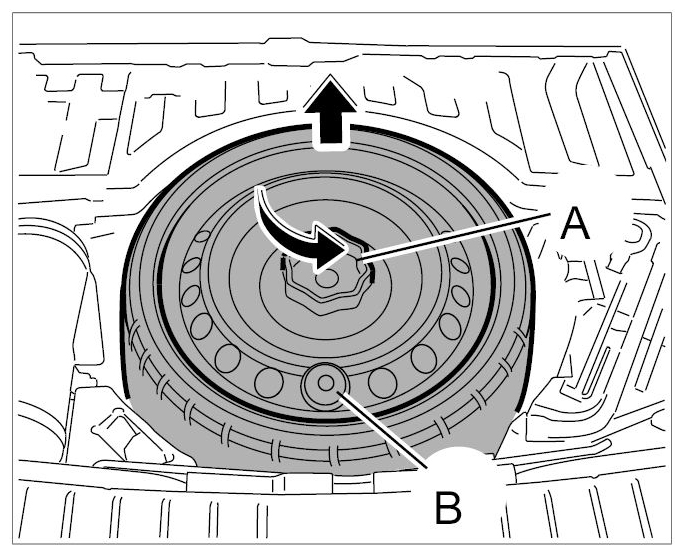

2. Remove collapsible spare wheel:
   1. 2.1. Remove twist grip -A-  and position it on bolt -B-  .
   2. 2.2. Unscrew the bolt -B-  and remove it together with the collapsible spare wheel.
      Fig 2: Releasing And Removing Collapsible Spare Wheel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

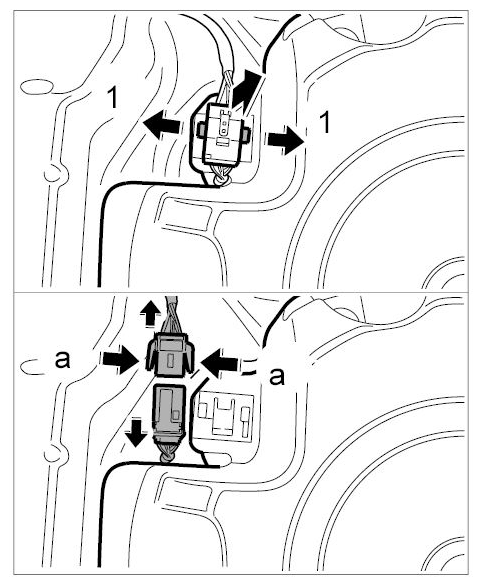

3. Disconnect plug connection:
   1. 3.1. Pull apart retaining bracket for plug connection on subwoofer -1-  and remove the plug connection.
   2. 3.2. Press connectors together -a-  and pull apart.
      Fig 3: Disconnecting Subwoofer Plug Connection

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

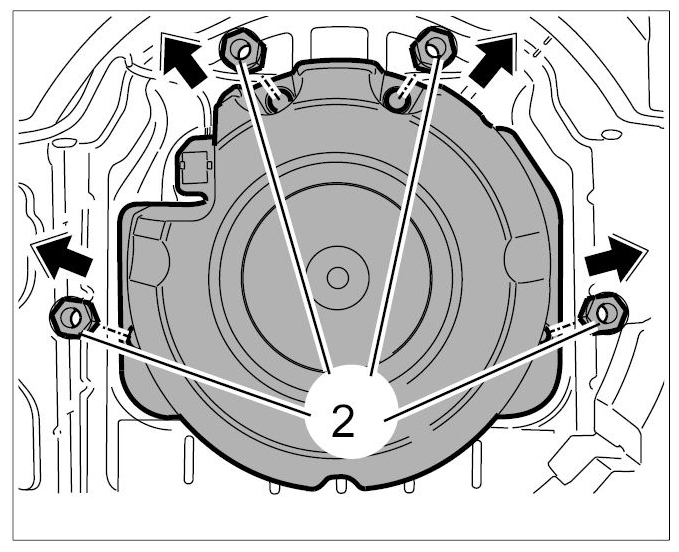

4. Remove subwoofer:
   1. 4.1. Undo the four fastening nuts -2-  and remove subwoofer.
      Fig 4: Unscrewing Subwoofer Fastening Nuts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
