Installing Subwoofer: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position subwoofer and screw down:
1. 1.1. Position subwoofer and screw down with the four fastening screws -2- . → Tightening torque: 1.5 ftlb.

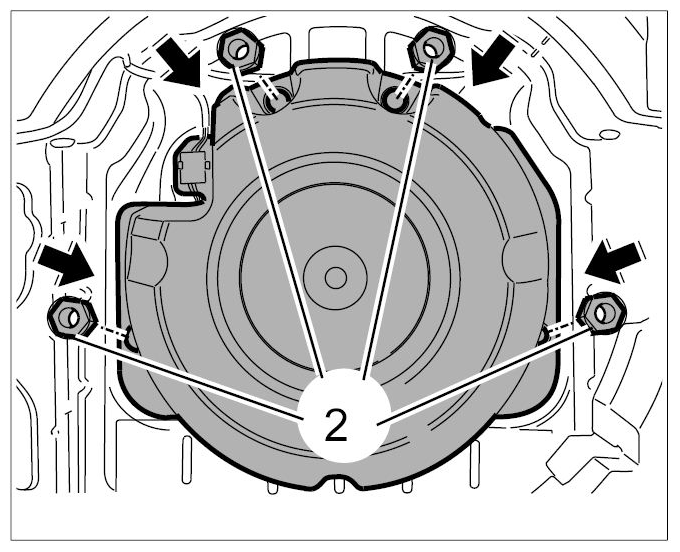

  Fig 1: Tightening Fastening Nuts For Subwoofer
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug connection:
1. 2.1. Push plug connection together until plug is felt to engage.
2. 2.2. Insert plug connection in retaining bracket and press into place.

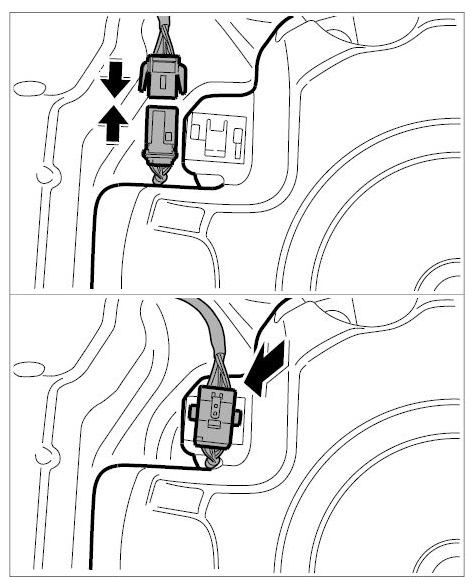

  Fig 2: Inserting Subwoofer Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install collapsible spare wheel:
1. 3.1. Insert collapsible spare wheel.
2. 3.2. Insert screw -B- .
3. 3.3. Position twist grip -A- and tighten fastening screw -B- .

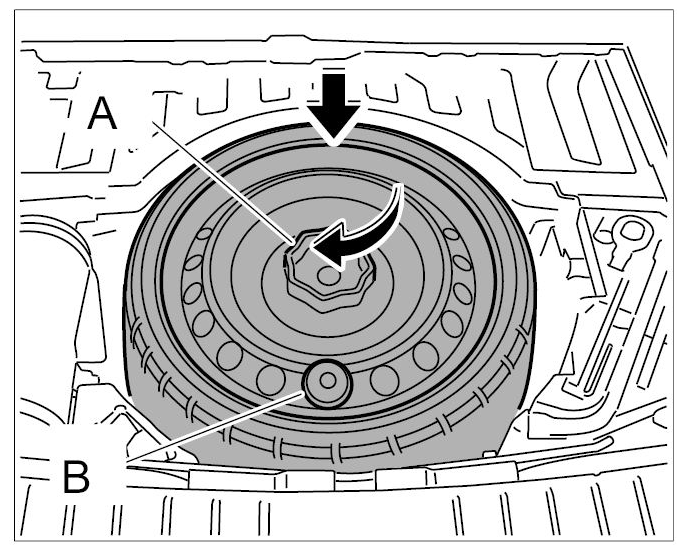

  Fig 3: Inserting And Securing Collapsible Spare Wheel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
