Installing Subwoofer Together With Second Battery

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install subwoofer:
1. 1.1. Position the subwoofer over the battery case.
2. 1.2. Push the electrical plug connection together until the plug is felt to engage.
3. 1.3. Position electrical plug connection on subwoofer.

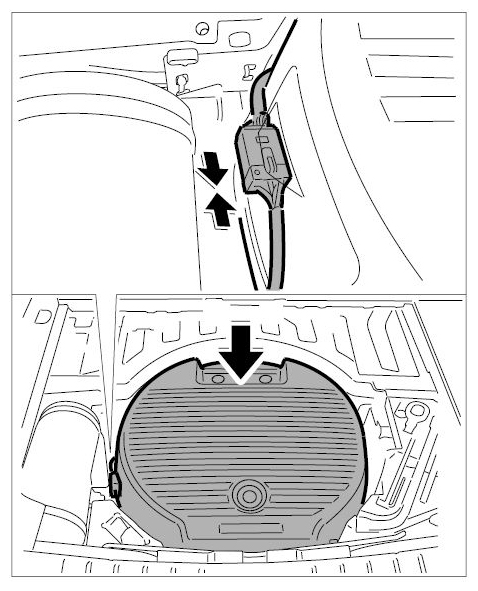

  Fig 1: Installing Subwoofer Together With Second Battery And Inserting Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten subwoofer:
1. 2.1. Insert fastening screw -3- with washer and tighten.
2. 2.2. Position both fastening nuts -2- and tighten them. → Tightening torque: 1.5 ftlb.
3. 2.3. If present, place tyre sealant -1- in well.

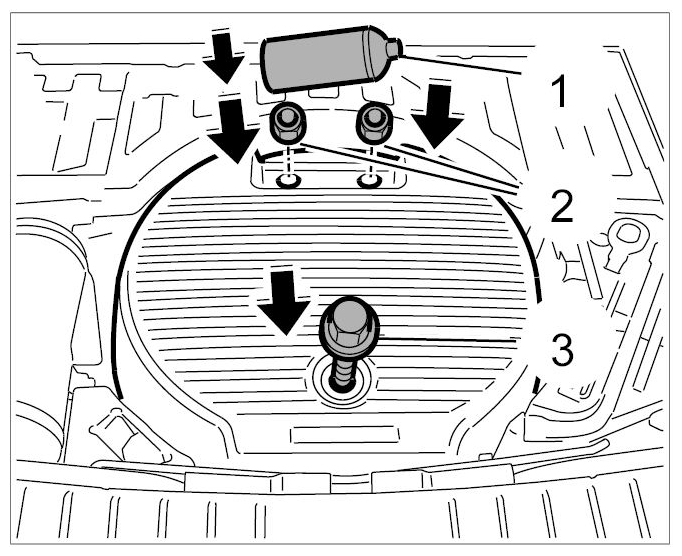

  Fig 2: Securing Subwoofer Together With Second Battery
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
