Installing Car Radio: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

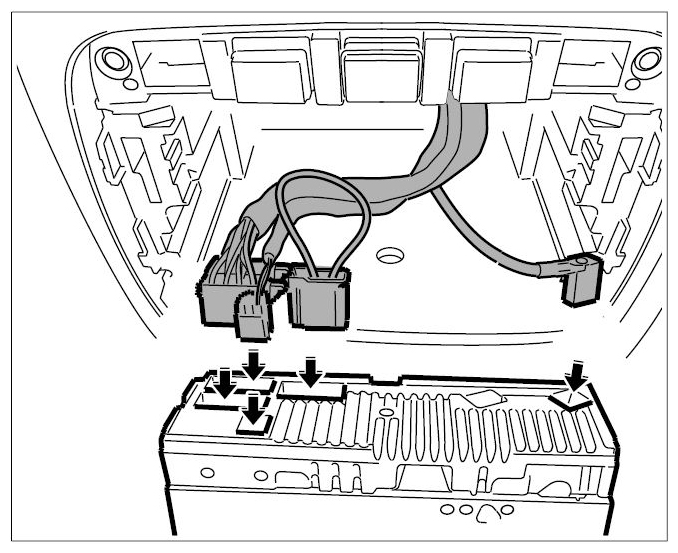

Insert electrical connector on car radio until it is felt to engage.

Fig 1: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

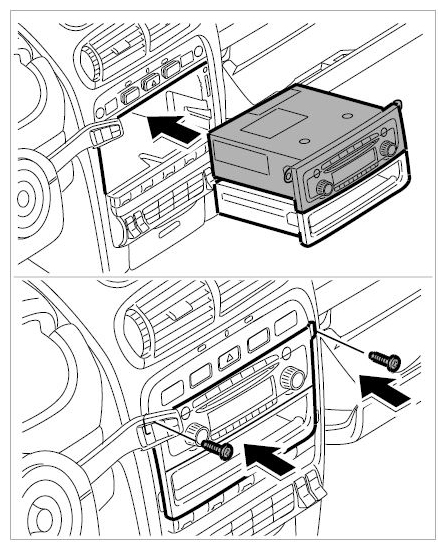

Insert car radio together with oddments tray.

Fig 2: Inserting Radio And Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in both fastening screws.

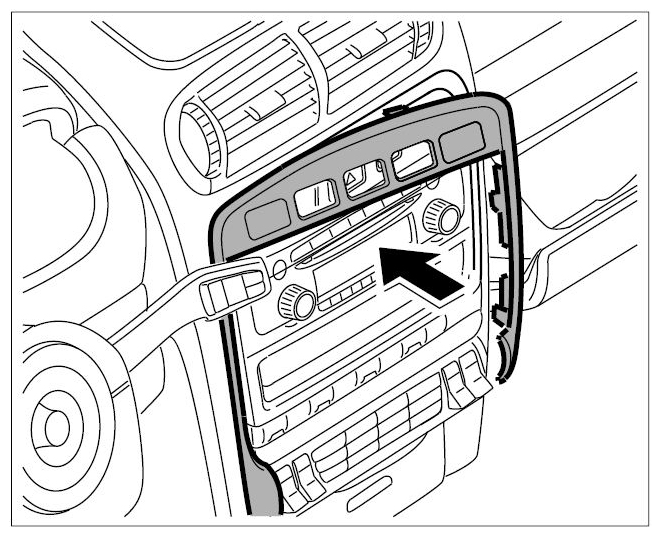

Fit the covering frame and press into place until it is felt to engage.

Fig 3: Fitting Covering Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Program (code) the car radio.
