Removing Sun Blind

Information

• The sun blind is pre-loaded by a spring mechanism. In order to be able to install the shade with the correct preload, the shade must be secured against turning before removal.

1. Put sun blind in removal position.
   1. 1.1. Close the sun blind electrically or using emergency operation until the front edge has reached the removal dimension -X-  . → Adjustment value: 426 mm

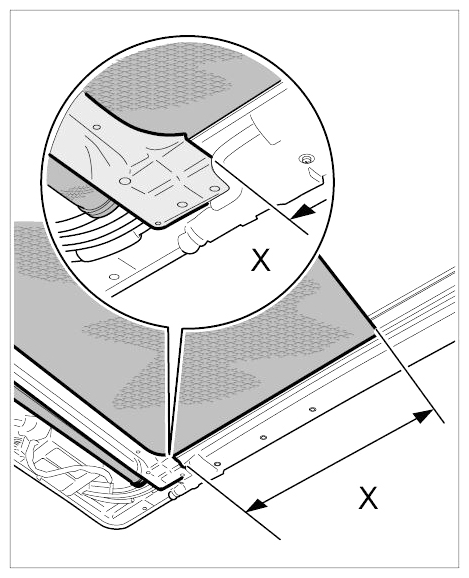

      Fig 1: Removal Position Of Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Secure sun blind.
   1. 2.1. Secure the drive shaft on the left side against turning with a suitable rig pin (Ø approx. 1 mm, e.g., shear-off rivet). Insert the pin centred in the groove of the cover disk until it enters the shaft.

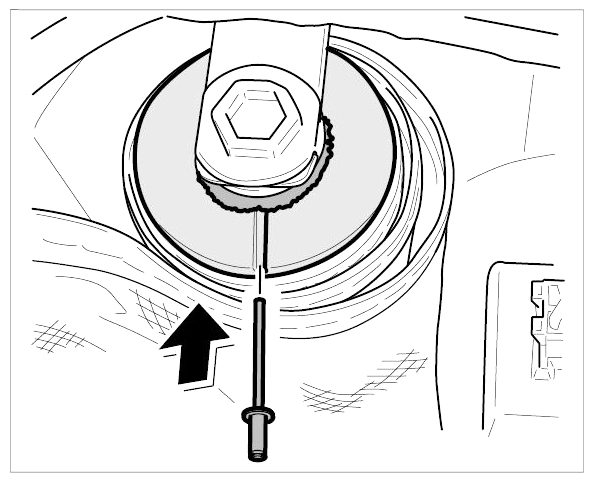

      Fig 2: Securing Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove locks on sun blind strip.
   1. 3.1. Unlock the lug on the lock with a screwdriver and press the locks toward the centre of the vehicle at the same time.
   2. 3.2. Lift the locks up and out of the strip.

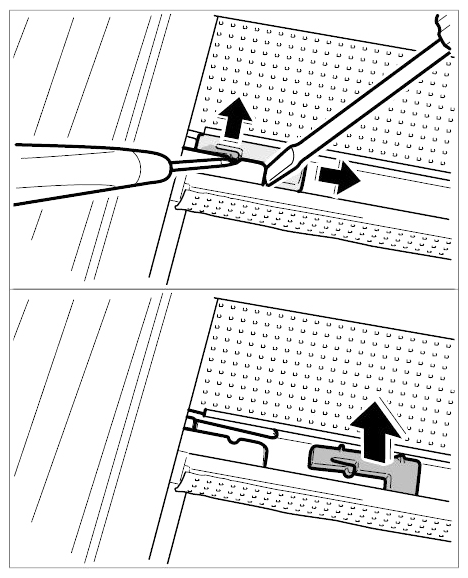

      Fig 3: Removing Locks On Sun Blind Strip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Unclip sun blind strip.
   1. 4.1. Press the sun blind strip forward -arrow A-  .
   2. 4.2. Swivel the sun blind strip downward -arrow B-  and unhook towards the front -arrow C-  .

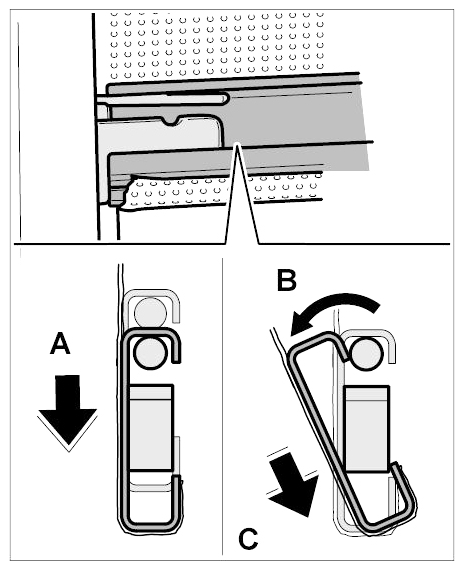

      Fig 4: Unclipping Sun Blind Strip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release sun blind.
   1. 5.1. Rotate retaining lock on both sides by 90° and unhook towards the rear.

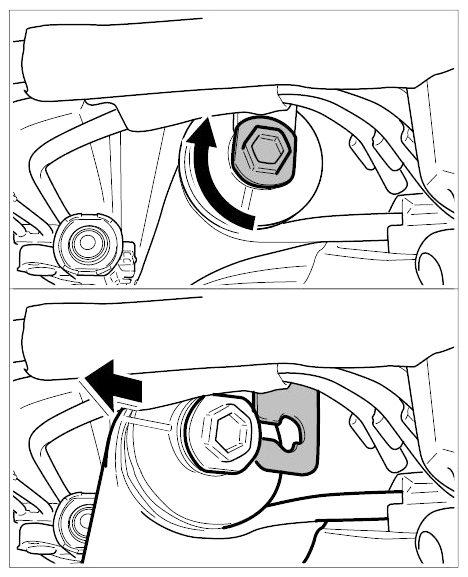

      Fig 5: Releasing Right Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

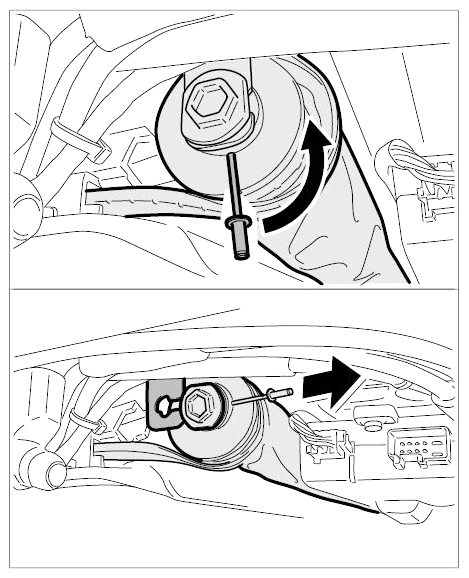

      Fig 6: Releasing Left Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Take off sun blind.
   1. 6.1. Pull sun blind towards the rear and out of the guide rails and remove it.

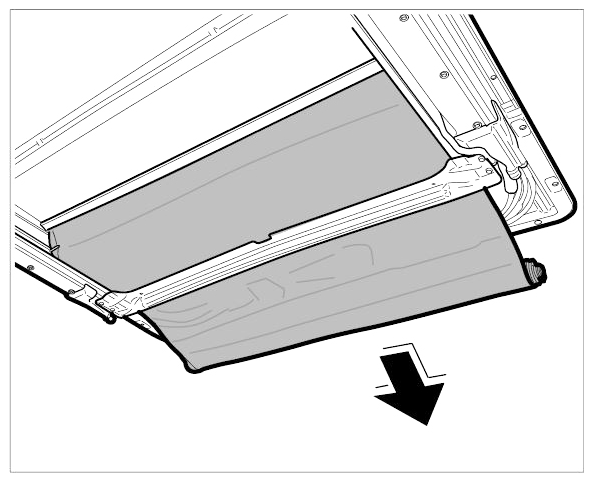

      Fig 7: Removing Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
