Removing Control Unit For Roof Assembly (Panoramic Roof)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

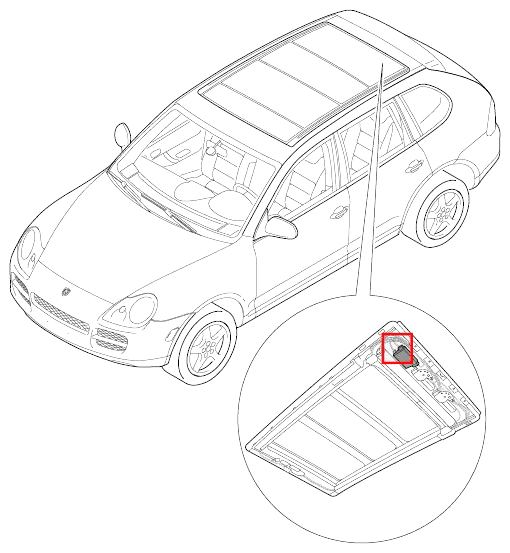

Fig 1: Overview Of Control Unit For Roof Assembly (Panoramic Roof)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

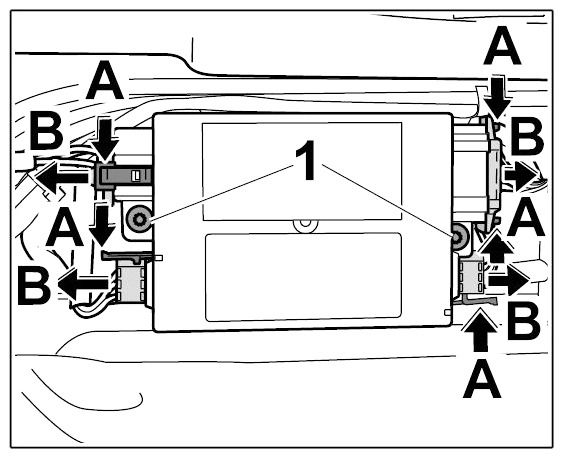

Release the connectors -Arrows A- and pull them off -Arrows B- .

Fig 2: Pulling Off Connectors And Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- and remove control unit.

Fig 3: Pulling Off Connectors And Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
